Victron Energy

Victron Color Control GX

  • Victron Color Control GX
$433.50
$433.50
SKU: IVV50230

Questions about compatibility? Call us for help.

Get an additional off

Add the item to cart to apply the discount

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

This item is currently out of stock. We can often special-order it or suggest an equivalent.

Request a quote or availability or call 954-581-2505.

In stock alternatives:

Sorry, it's out of stock.

But we can let you know when it's back in.

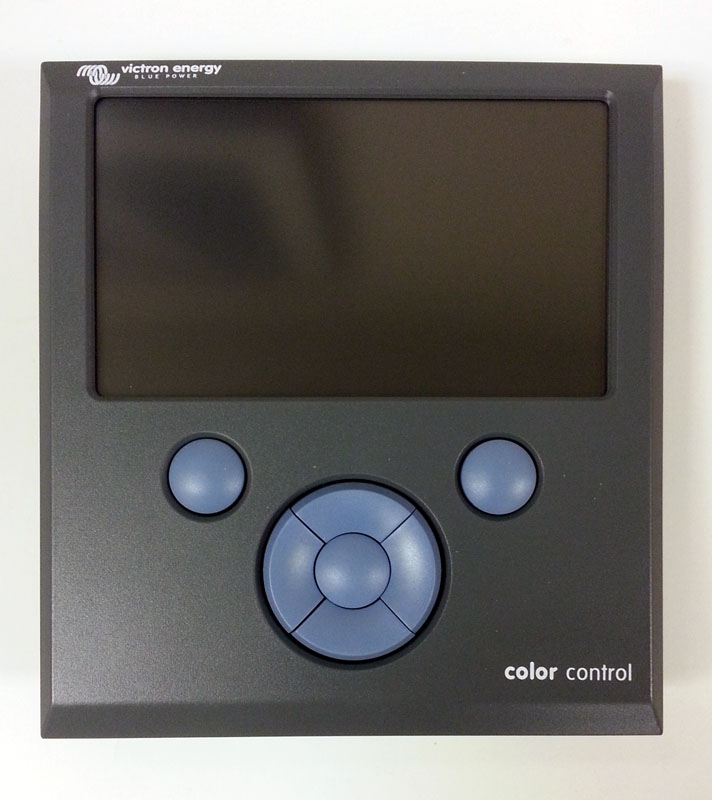

The Victron Color Control GX (CCGX) is a panel-mounted display for monitoring and controlling a Victron power system. It works with Multis, Quattros, inverters, MPPT solar chargers and BMV battery monitors. It is for boat, RV and off-grid owners who want one screen and remote access through Victron's VRM portal.

With the Color Control GX you can have full control & monitoring of Multi's, Inverters and Quattro's. It is easy to install and have real-time system status read-out at your finger tip.

The Color Control (CCGX) provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, all Victron's latest MPPT solar chargers, BMV-700, BMV-600, Lynx Ion + Shunt and more.

The Color Control unit comes with metal mounting clamp, panel cut out installation & user manual.

Specifications

  • Power supply: 9 to 70V DC
  • Current draw at 12V: 245 mA at maximum display intensity, 0 mA switched off
  • Ports: 2 VE.Direct, 2 VE.Can, 2 VE.Bus, 2 USB host, 1 Ethernet
  • Potential free contact: 3A / 30V DC / 250V AC, normally open
  • Dimensions: 130 x 120 x 28 mm
  • Operating temperature: -20 to +50 °C

Compatibility

  • Multis and Quattros, including split-phase and three-phase systems
  • BlueSolar MPPT chargers with VE.Direct, and MPPT 150/70 and 150/85 with VE.Can
  • BMV-700 family direct to VE.Direct; BMV-600 family with an accessory cable
  • Lynx Ion + Shunt, Lynx Shunt VE.Can, Skylla-i chargers
  • NMEA2000 tank sensors, USB GPS, Fronius PV inverters

Questions & Answers

Can the Color Control GX start my generator automatically?

Yes. It has a customizable genset start/stop system using state of charge, voltage, load and other parameters, with quiet times and an optional monthly test run.

How does it connect to the internet?

Through Ethernet, or Wi-Fi with a USB accessory. It has no internal cellular modem or SIM slot, so use an off-the-shelf 3G router for cellular.

Does it store data when offline?

Yes. It stores data internally for up to 48 hours, and a micro SD card or USB stick can hold more.

More detailed information:
PDF Datasheet for Victron Color Control GX
PDF Manual for Victron Color Control GX
