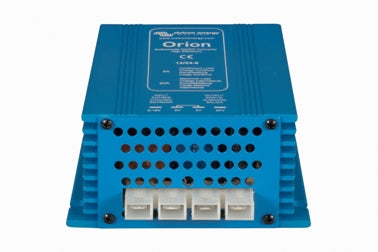

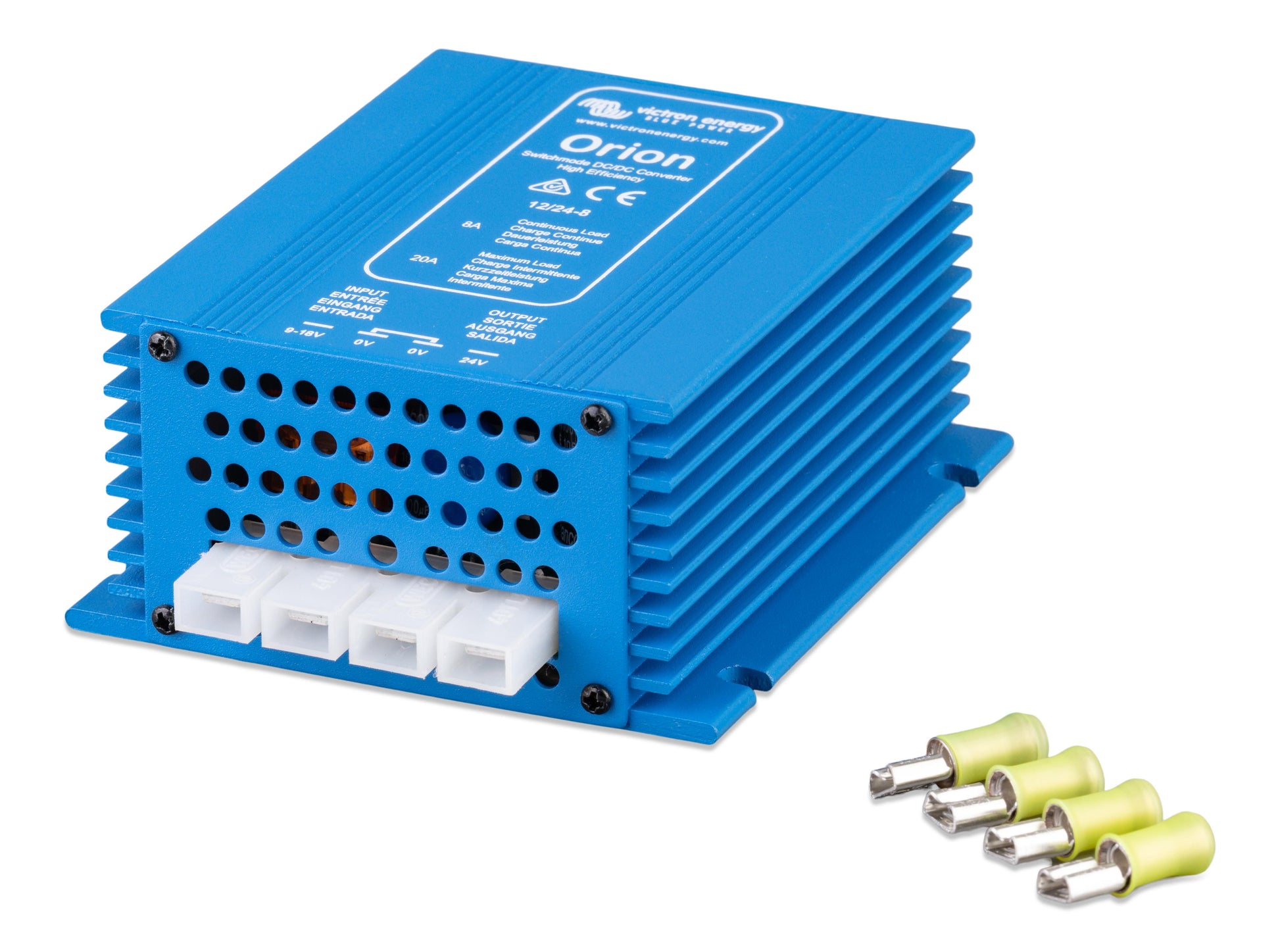

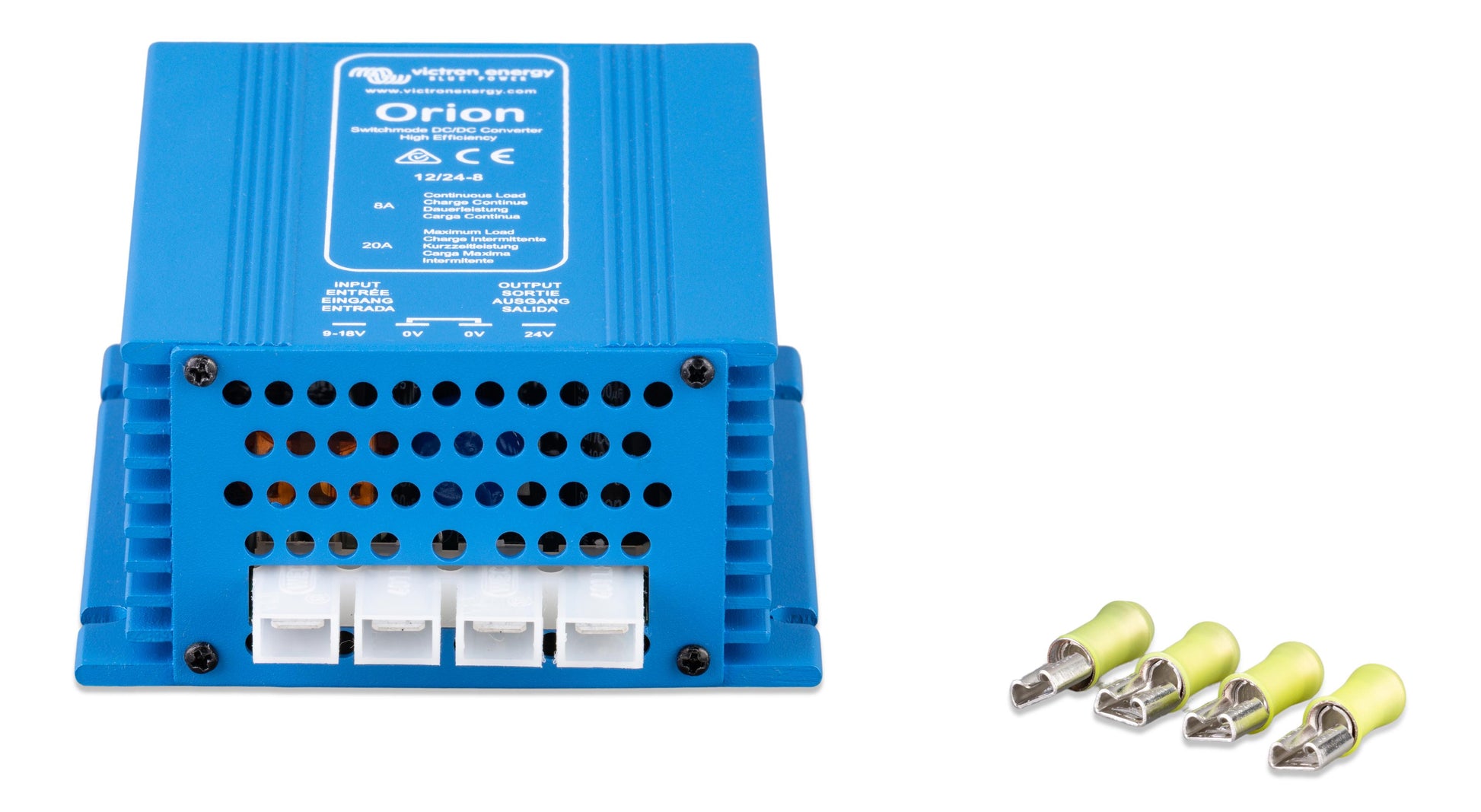

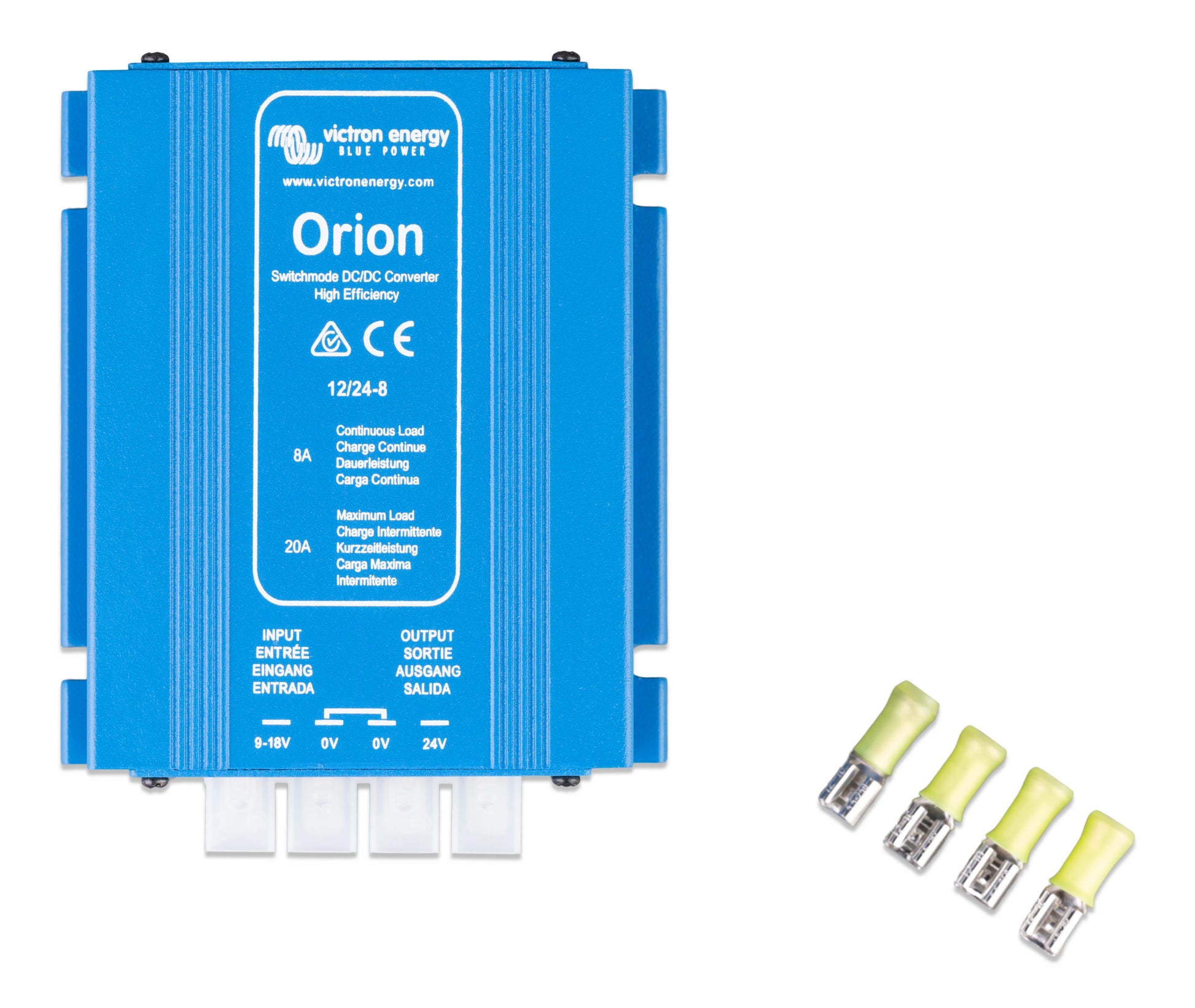

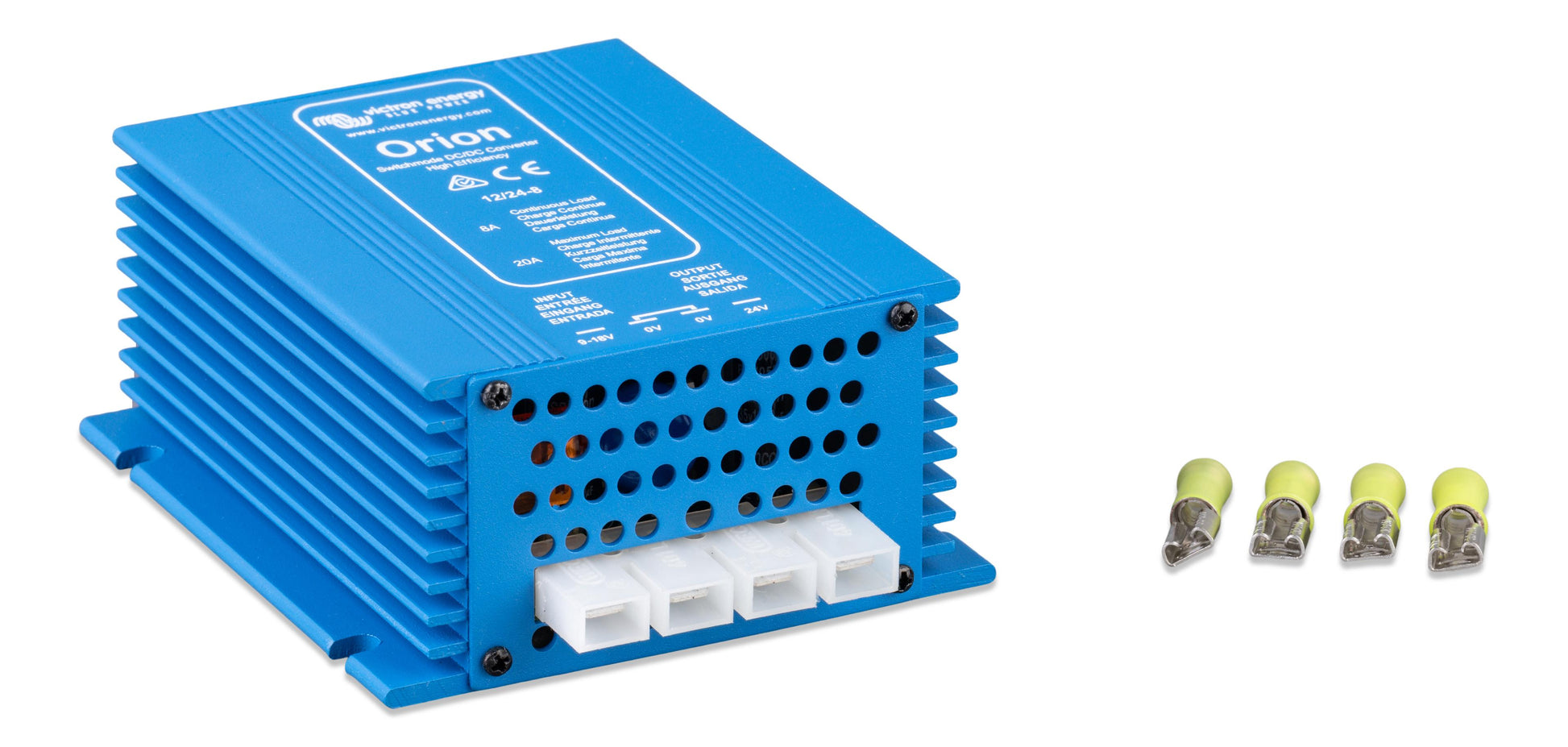

Victron Energy Orion DC-DC Converter 12/24-8A Non Isolated

The Victron Orion 12/24-8A is a non-isolated DC-DC converter that steps a 12V input up to a 24V output at up to 8A continuous current, for running 24V equipment from a 12V battery bank. Being non-isolated, it is smaller, lighter, and more efficient than an equivalent isolated converter, and is intended for systems where the input and output negative are already on the same common ground.

The output voltage is fixed at 24V - this model does not have an adjustable output potentiometer and is not intended for use as a battery charger or for parallel operation. It is best suited to running fixed 24V equipment, such as electronics, pumps, or winches, directly from a 12V battery bank without needing a separate charging function.

A remote on/off connection eliminates the need for a high-current switch in the input wiring - the converter can be switched with a low-power switch or an external control signal such as an engine run/stop switch.

The unit is resin encapsulated and IP67 rated for damp engine room, bilge, or exposed marine environments, with an operating range of -20 to +55°C (derated 3% per °C above 40°C). As with all Orion non-isolated converters, the minus (negative) cables must be connected first during installation, since a poor minus connection can result in output overvoltage.

Features

Fixed 24V Output

Delivers a fixed 24V output rather than an adjustable range - this model is not intended for use as a battery charger and cannot be connected in parallel with other units.

Remote On/Off Control

Eliminates the need for a high-current switch in the input wiring - operate with a low-power switch or an external control signal such as an engine run/stop switch.

Non-Isolated, Compact Design

Being non-isolated keeps the 8A converter smaller, lighter, and more efficient than an equivalent isolated unit, for systems where the 12V and 24V sides share a common negative.

Resin Encapsulated, IP67 Rated

Fully resin encapsulated construction seals the electronics against moisture and vibration, with an IP67 rating for reliable operation in damp engine room, bilge, or exposed marine locations.

Polarity-Critical Minus-First Installation

The minus (negative) cables must be connected first during installation - a poor minus connection can otherwise result in output overvoltage.
