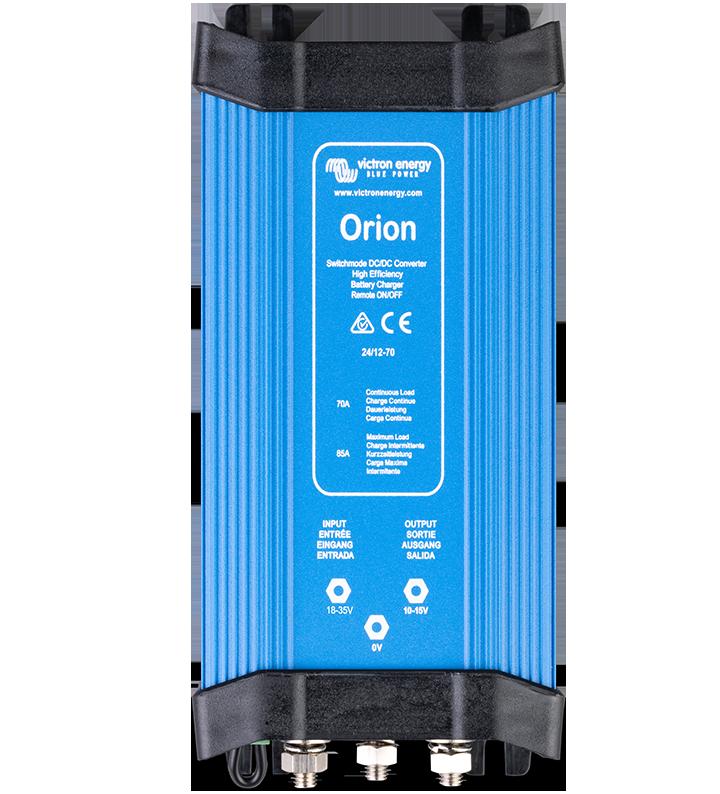

Victron Orion DC-DC Converters Non-isolated, High Power
Discontinued
VCVDC-DC
This product has been discontinued. We do not expect it to become available again.
Contact us to find a replacement.
The Victron Orion DC-DC Converters, non-isolated high power range, covers the larger current ratings in Victron's non-isolated DC-DC converter lineup - stepping voltage between 12V, 24V, and 48V battery systems at currents from 8A up to 80A, for applications too demanding for the compact low-power Orion-Tr series. Being non-isolated, these converters are smaller, lighter, and more efficient than an equivalent isolated unit, and are intended for systems where the input and output negative are already on the same common ground.
On models with an adjustable output, the output voltage can be set with the onboard potentiometer, so the same converter can also be used to buffer-charge a battery - for example a 12V starter or accessory battery in an otherwise 24V system - rather than only supplying a fixed voltage. Where adjustable output is available, up to five units can be connected in parallel to increase available output current for larger loads such as inverters, winches, or bow thrusters.

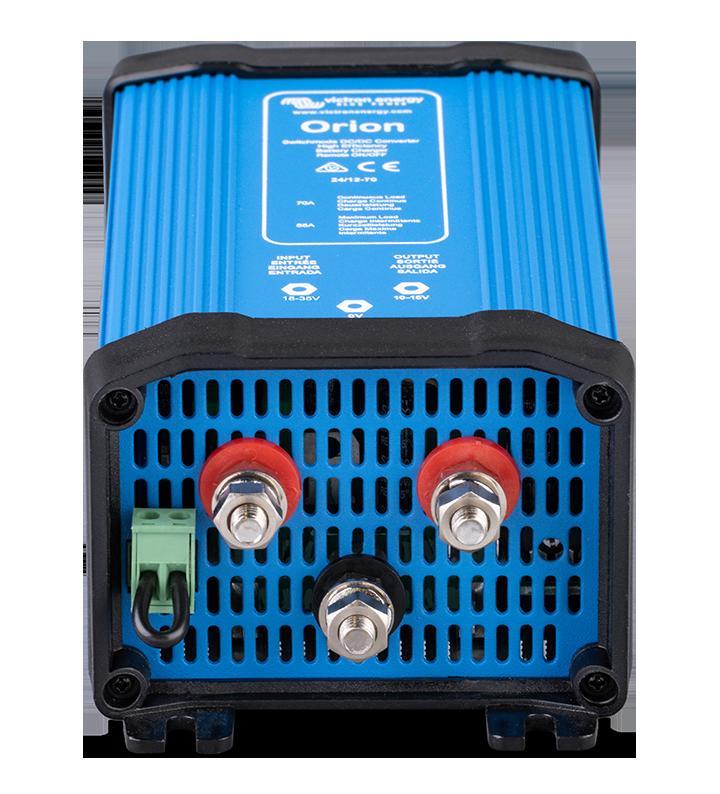

A remote on/off connector eliminates the need for a high-current switch in the input wiring - the converter can be switched with a low-power switch or an external control signal such as an engine run/stop switch. The larger models in the range use temperature-controlled fan-assisted cooling to sustain their higher continuous output current.
Installation note: this range must be installed and connected by qualified personnel only, with all power sources disconnected before making any connections to the unit.
Features
High Power Density
Delivers high current output within a compact footprint, making efficient use of space in demanding industrial, marine, and automotive electrical systems.
Wide Input Voltage Range
Accommodates diverse 12V, 24V, and 48V source systems, simplifying integration without needing additional voltage regulation.
Adjustable Output - Doubles as a Battery Charger
On models with adjustable output, the onboard potentiometer lets the same converter buffer-charge a battery rather than only supply a fixed voltage.
Non-Isolated Design
Non-isolated architecture keeps these converters smaller, lighter, and more efficient than an equivalent isolated unit, for systems where the input and output share a common negative.
Fan-Assisted Cooling on Larger Models
The higher-current models use temperature-controlled fan cooling to sustain their continuous output rating under sustained heavy load.
Robust Protection Features
Comprehensive over-temperature, short-circuit, and overload protection safeguards both the converter and connected equipment during fault conditions.
Specifications
| Orion 24/12-30 | Orion 24/12-60 | Orion 24/12-80 | Orion 48/12-60 | Orion 12/24-8 | Orion 12/24-10 | Orion 12/24-20 | |
| Part Number | ORI241230022 | ORI241260020 | ORI241280020 | ORI481260020 | ORI122408020 | ORI122410020 | ORI122420020 |
| Input Voltage Range | 18-35V | 18-35V | 18-35V | 38-66V | 9-18V | 9-18V | 9-18V |
| Continuous Output Current | 30A | 60A | 80A | 60A | 8A | 10A | 20A |
| Efficiency | 96% | 95% | 92% | 92% | 95% | 95% | 93% |
| Fan Assisted Cooling | No | Yes | Yes | Yes | No | No | Yes |
| Operating Temperature | -20 to +55°C (derate 3% per °C above 40°C) | ||||||
| Weight | 0.7 kg | 0.85 kg | 0.9 kg | 0.9 kg | 0.4 kg | 0.4 kg | 0.9 kg |
| Dimensions (h x w x d) | 65x88x160 mm | 65x88x185 mm | 65x88x195 mm | 65x88x195 mm | 45x90x115 mm | 45x90x125 mm | 65x88x195 mm |
