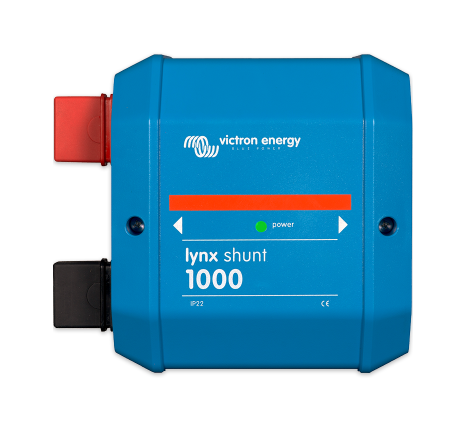

Victron Lynx Battery Monitor/Shunt VE Can Module(M8) (Soon to be discontinued)
Discontinued
BMV17455
LYN040102100
This product has been discontinued. We do not expect it to become available again.
Contact us to find a replacement.
The Victron Lynx Shunt VE.Can serves as the intelligent core of your modular Lynx DC distribution setup. This high-capacity 1000 Amp module functions as both a precision battery monitor and a central safety hub, featuring integrated positive and negative busbars. By monitoring critical battery health metrics and providing a dedicated mounting point for a CNN safety fuse, this unit ensures your entire energy installation remains protected, efficient, and fully transparent.
Designed for professional-grade applications—including marine, RV, and off-grid solar systems—the Lynx Shunt VE.Can integrates perfectly with other Lynx-series modules. Its seamless connectivity via VE.Can allows for advanced system tracking, enabling you to manage power consumption, customize safety alarms, and monitor real-time battery status directly through Victron GX devices or the remote VRM portal.
Features
High-Precision 1000A Battery Monitoring
Delivers constant, accurate tracking of your entire battery bank’s State of Charge (SoC), voltage, and current flow, providing the essential data needed to prevent power failures and maximize battery longevity.
Integrated CNN Fuse Protection
The positive busbar includes a specialized, secure slot for mounting a high-capacity CNN fuse (not included). This built-in safety feature protects your electrical system from catastrophic short circuits and overcurrent events.
Smart VE.Can Connectivity
Equipped with dual RJ45 VE.Can ports for easy integration with Victron GX controllers like the Cerbo GX. This allows for sophisticated system-wide monitoring, alarm management, and remote data logging.
Modular Lynx System Design
The unit is built to bolt directly to other Lynx distribution modules, such as the Power In or Distributor. This allows you to construct a clean, consolidated, and highly efficient DC distribution hub with minimal wiring complexity.
Corrosion-Resistant Tinned Copper Busbars
Featuring dual M8 terminal studs, the internal busbars are constructed from solid, tinned copper. This provides maximum conductivity, reduces voltage drops, and ensures long-term reliability even in harsh, humid environments.
Specifications
| Busbar Current Rating | 1000 A |
| Supported System Voltages | 12V, 24V, or 48V DC |
| Compatible Fuse Type | CNN Fuse (Up to 325A / 80V) |
| Communication Ports | VE.Can (RJ45) |
| Terminal Studs | M8 |
| Manufacturer Part Number | LYN040102100 |
| Weight | 1.4 kg / 3.1 lb |
| Dimensions (H x W x D) | 190 x 180 x 80 mm / 7.5 x 7.1 x 3.1 inch |
