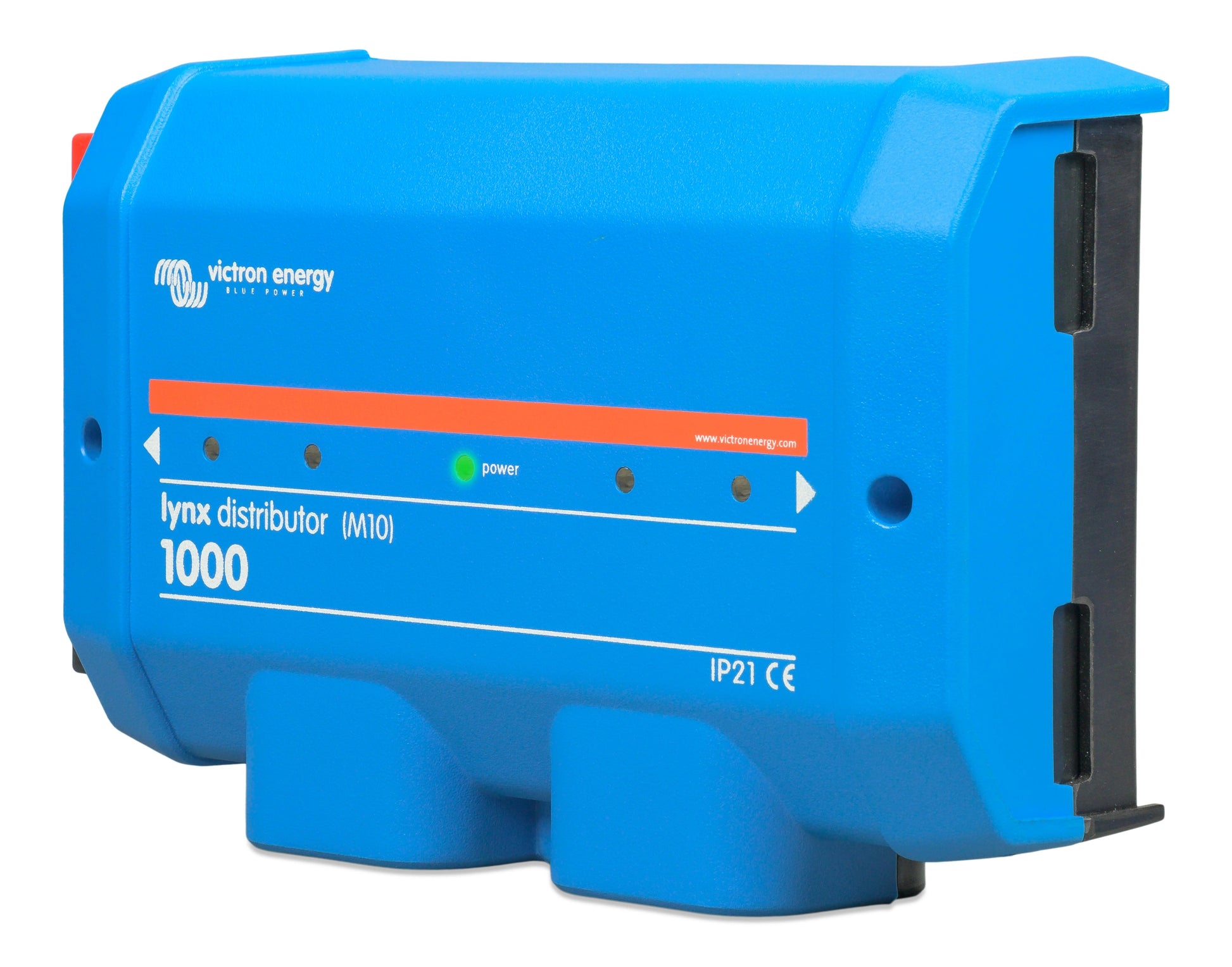

Victron Lynx Distributor (M10)

The Victron Lynx Distributor (M10) is a modular, heavy-duty DC busbar module that provides four individually fused and actively monitored connections for batteries, inverters, chargers, and other high-power DC loads. Designed for professional-grade 12V, 24V, and 48V systems requiring M10 busbar interconnections, it serves as a fused distribution hub rated for a continuous 1000A through the busbar.

Smart onboard electronics actively monitor each of the four positive connections, with an LED status panel that immediately alerts you if a fuse is blown - a green light confirms normal operation, a red LED indicates a blown or missing fuse. When integrated into a larger Victron system with a Lynx Smart BMS via the included RJ10 cable, it transmits real-time fuse and connection status to the VictronConnect app, a GX Touch screen, and the VRM portal.

The unit's M10 joint bolts make it directly compatible with other M10 Lynx modules - the Lynx Power In, Lynx Shunt VE.Can, and Lynx Smart BMS - to form one continuous busbar (internal cable and fuse connections themselves use M8 studs). Up to four Lynx Distributor units can be daisy-chained and addressed via onboard DIP switches to a single Lynx Smart BMS, expanding a system to 16 individually monitored fused circuits.

Features

Four Fused and Monitored DC Connections

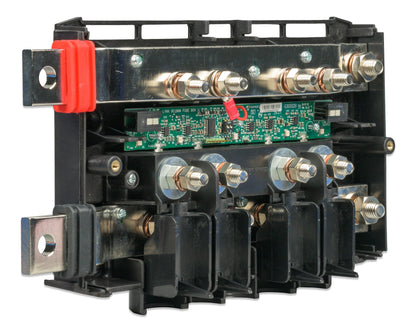

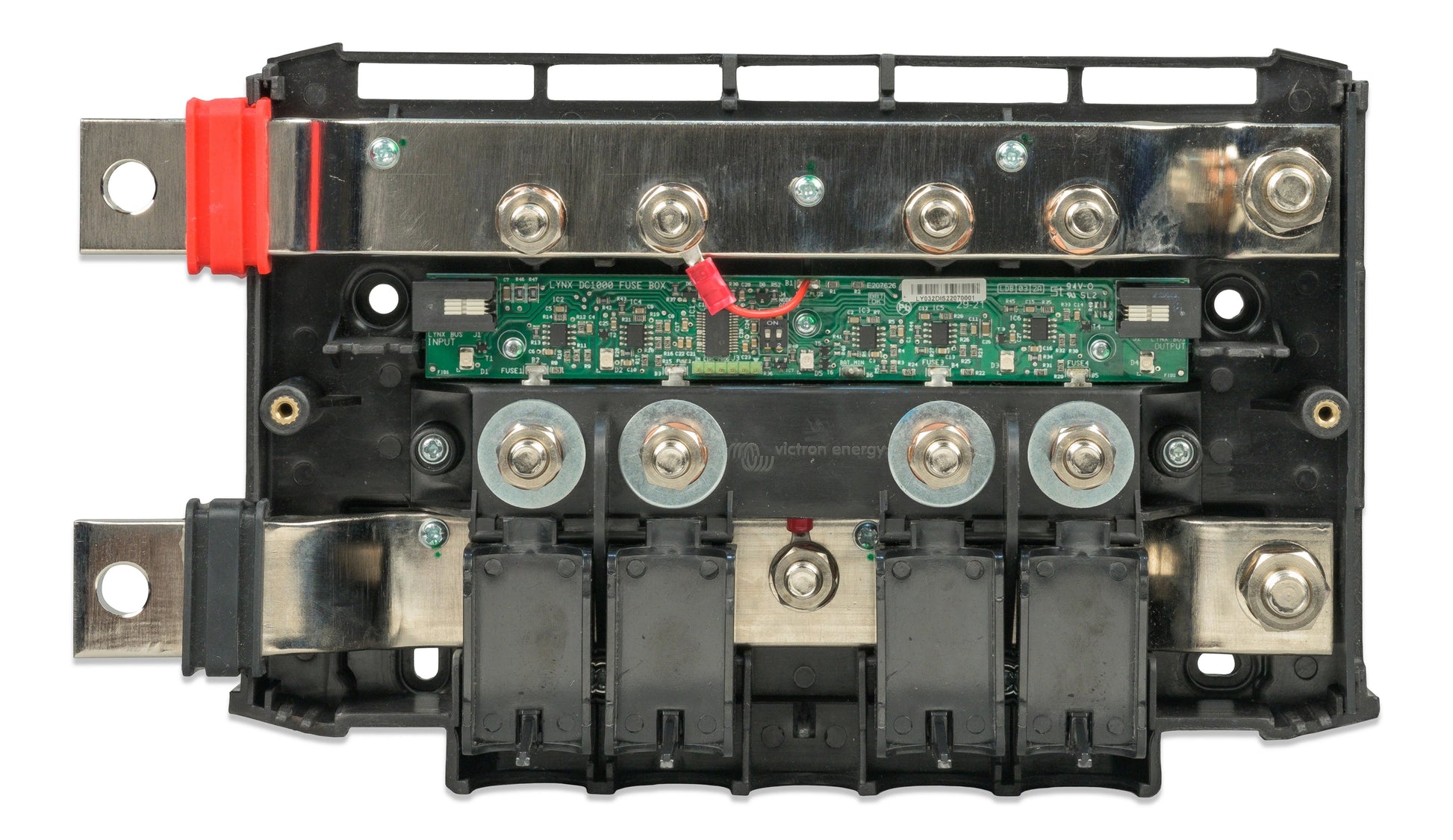

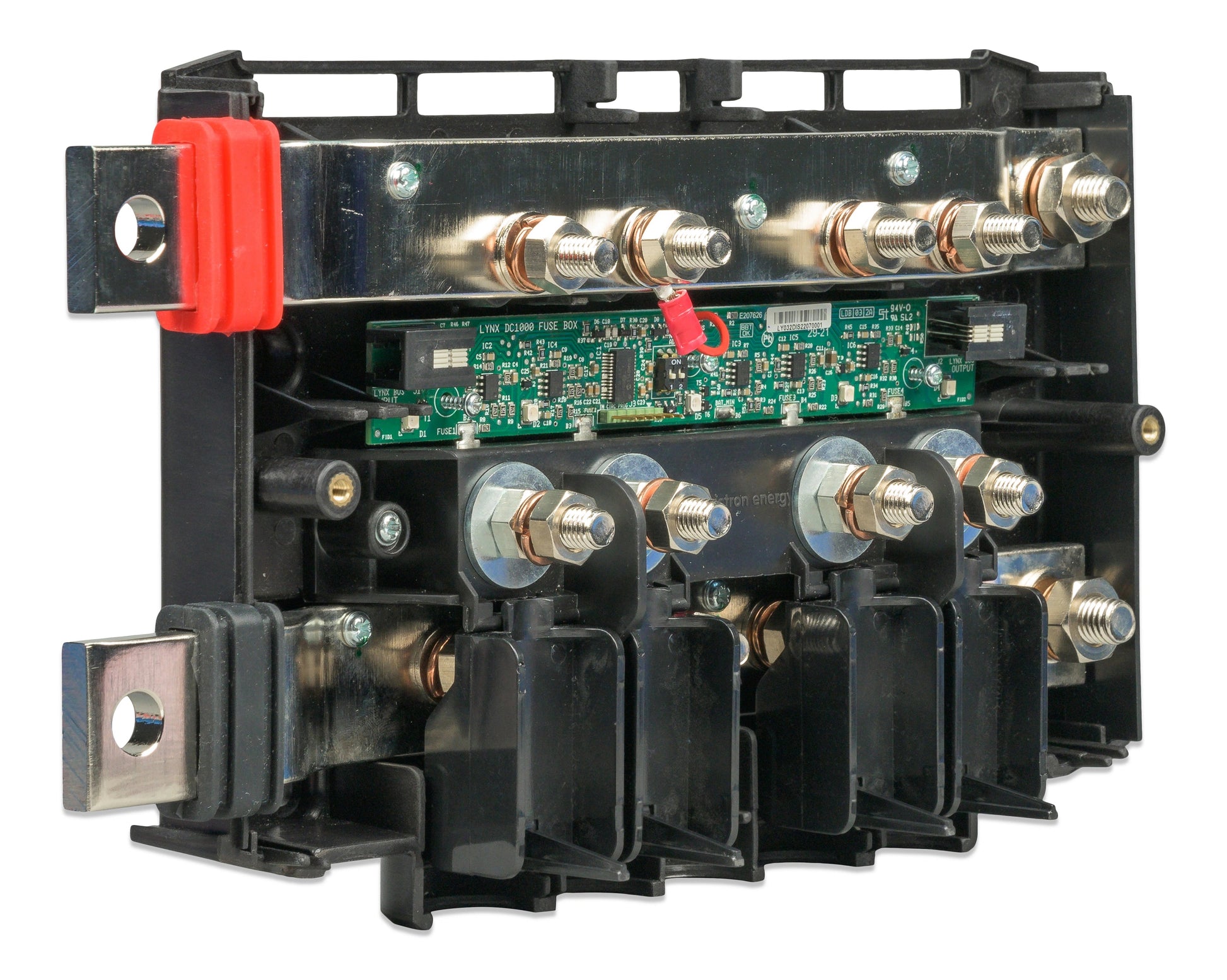

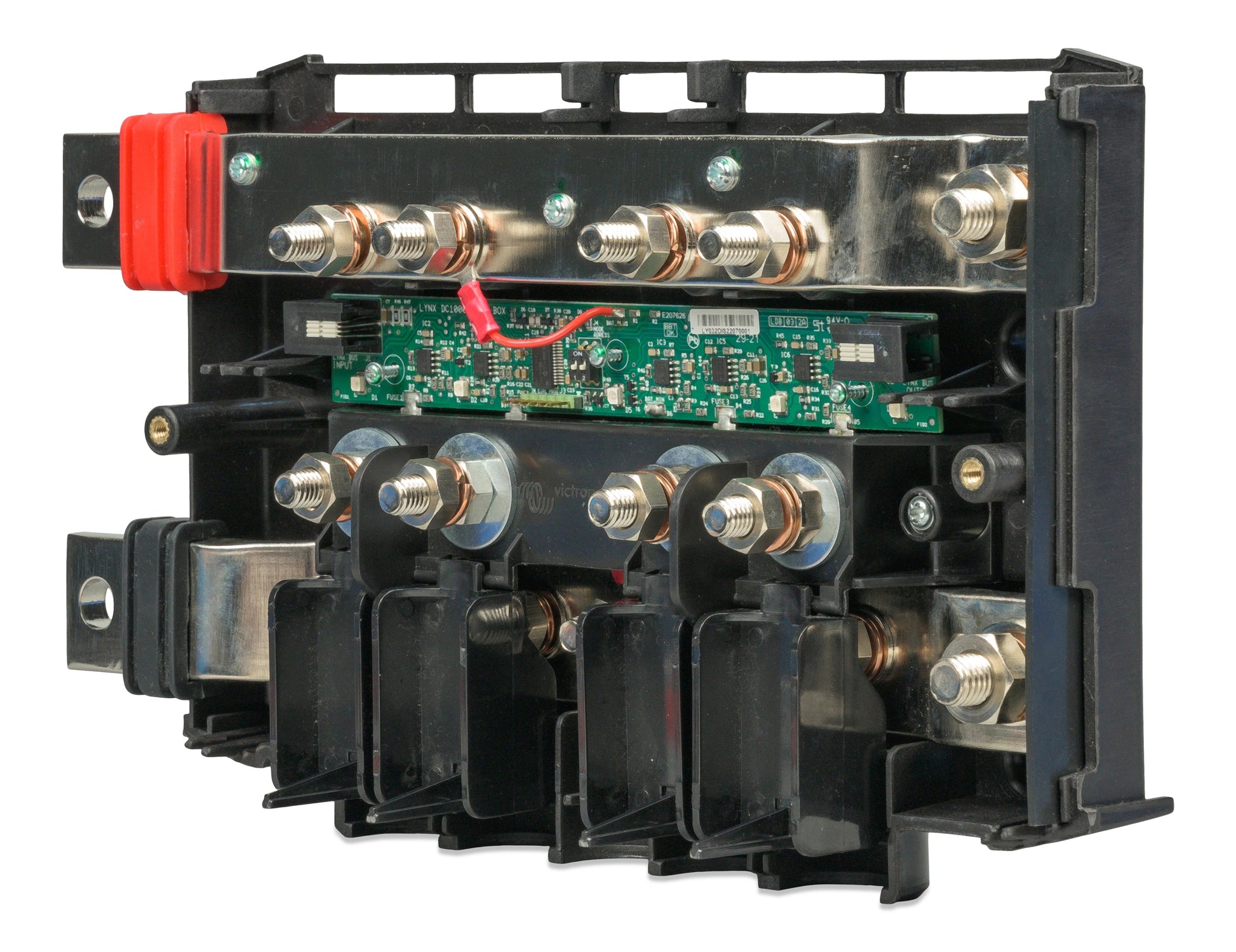

The positive busbar accommodates up to four MEGA fuses (sold separately) to protect individual circuits for batteries, chargers, or inverters.

Active LED Visual Alerts

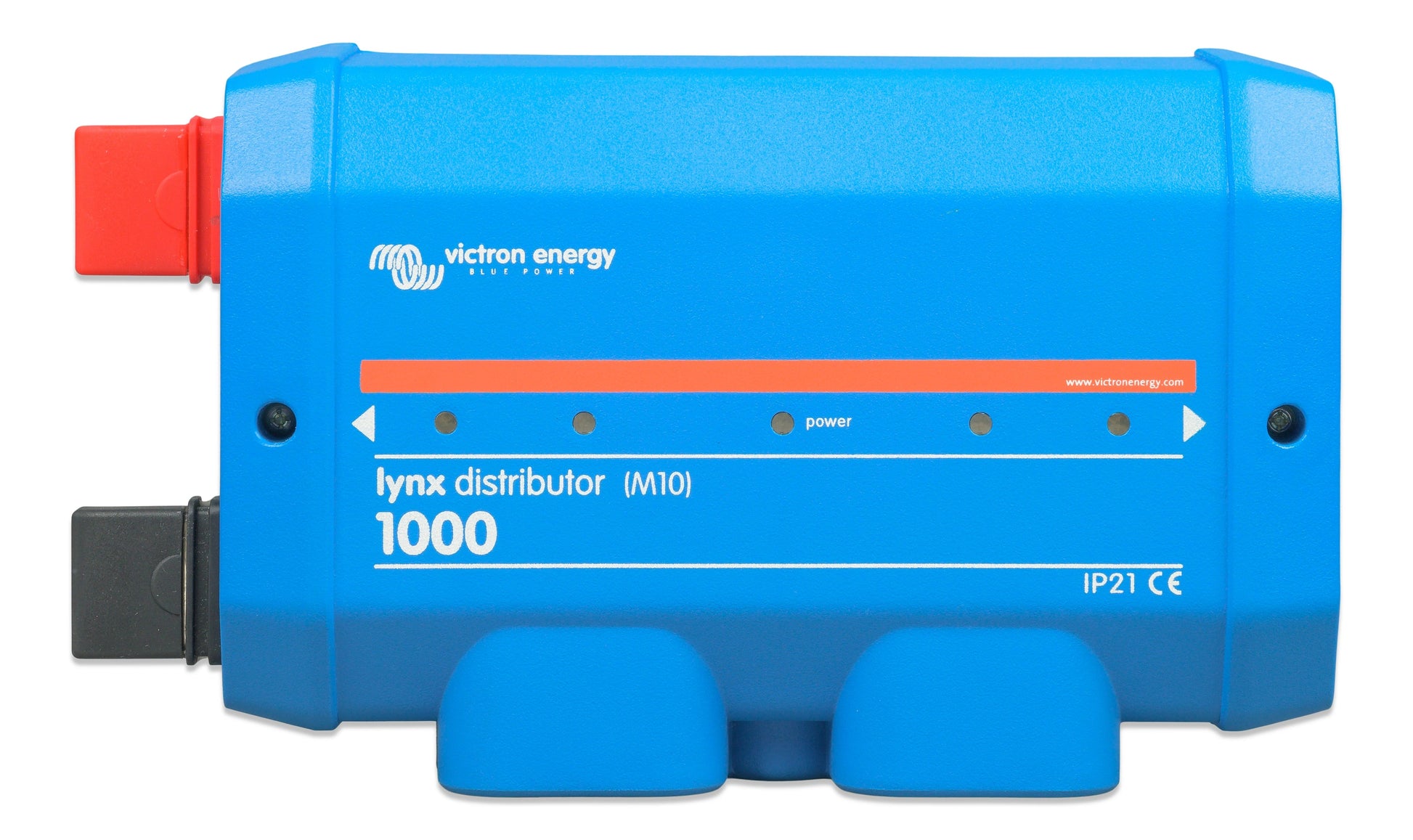

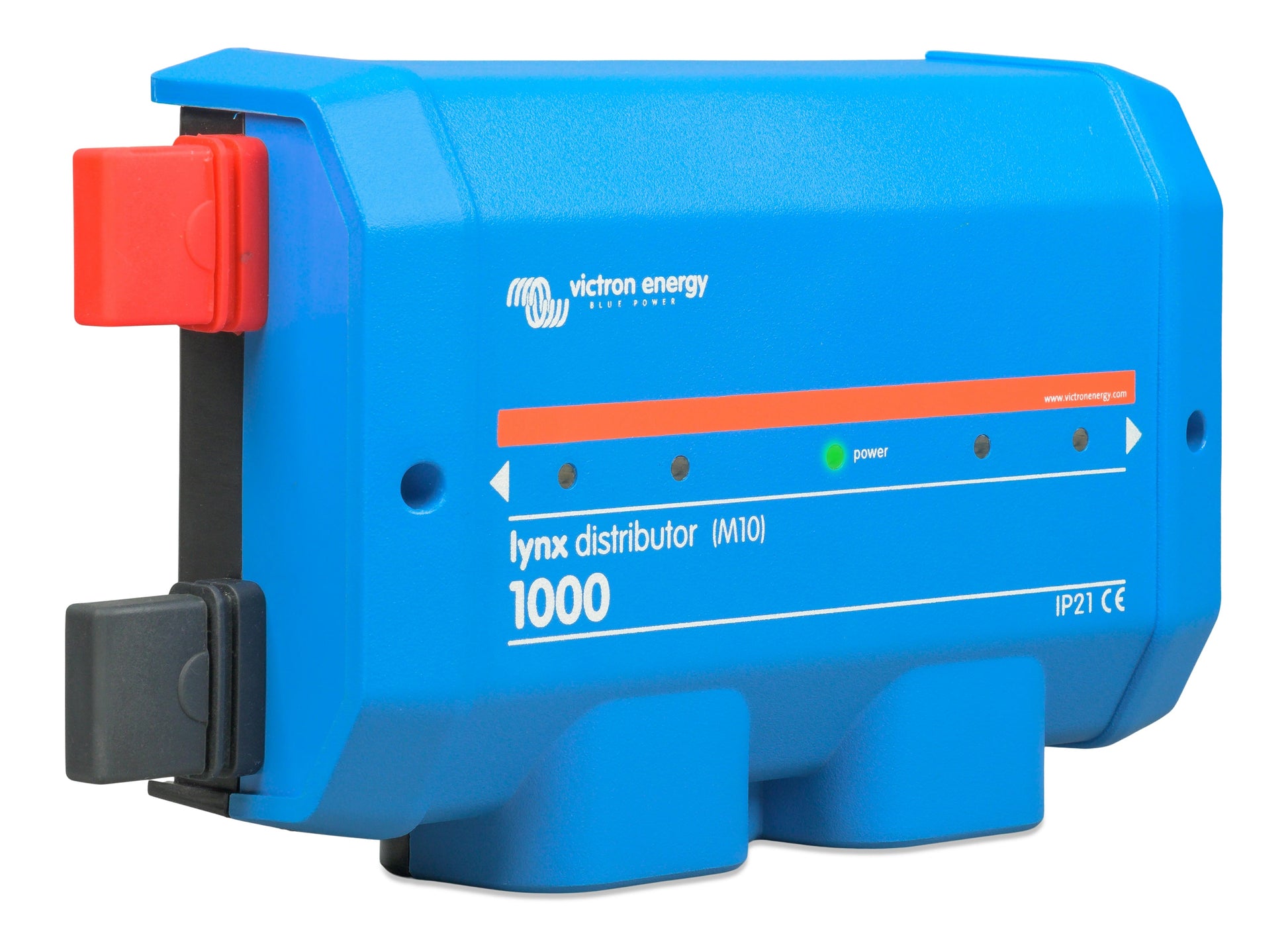

A central power LED and four individual circuit LEDs give instant at-a-glance diagnostics - green for normal operation, red for a blown or missing fuse.

M10 Busbar Joint Connections

Heavy-duty M10 connection bolts at the joints make this module directly compatible with other M10 Lynx modules, forming one continuous busbar.

Digital Communication to Lynx Smart BMS

Connects to a Lynx Smart BMS via the included 40cm RJ10 cable, sending instant fuse-blown or connection-lost alarms to VictronConnect, a GX Touch screen, and the VRM portal.

Massive Power Capacity

High-conductivity copper busbars are rated for a continuous 1000A current, keeping voltage drop and heat generation to a minimum.

Scalable to 16 Fused Circuits

Up to four Lynx Distributor units can be daisy-chained to a single Lynx Smart BMS, expanding a system to 16 individually monitored circuits.
