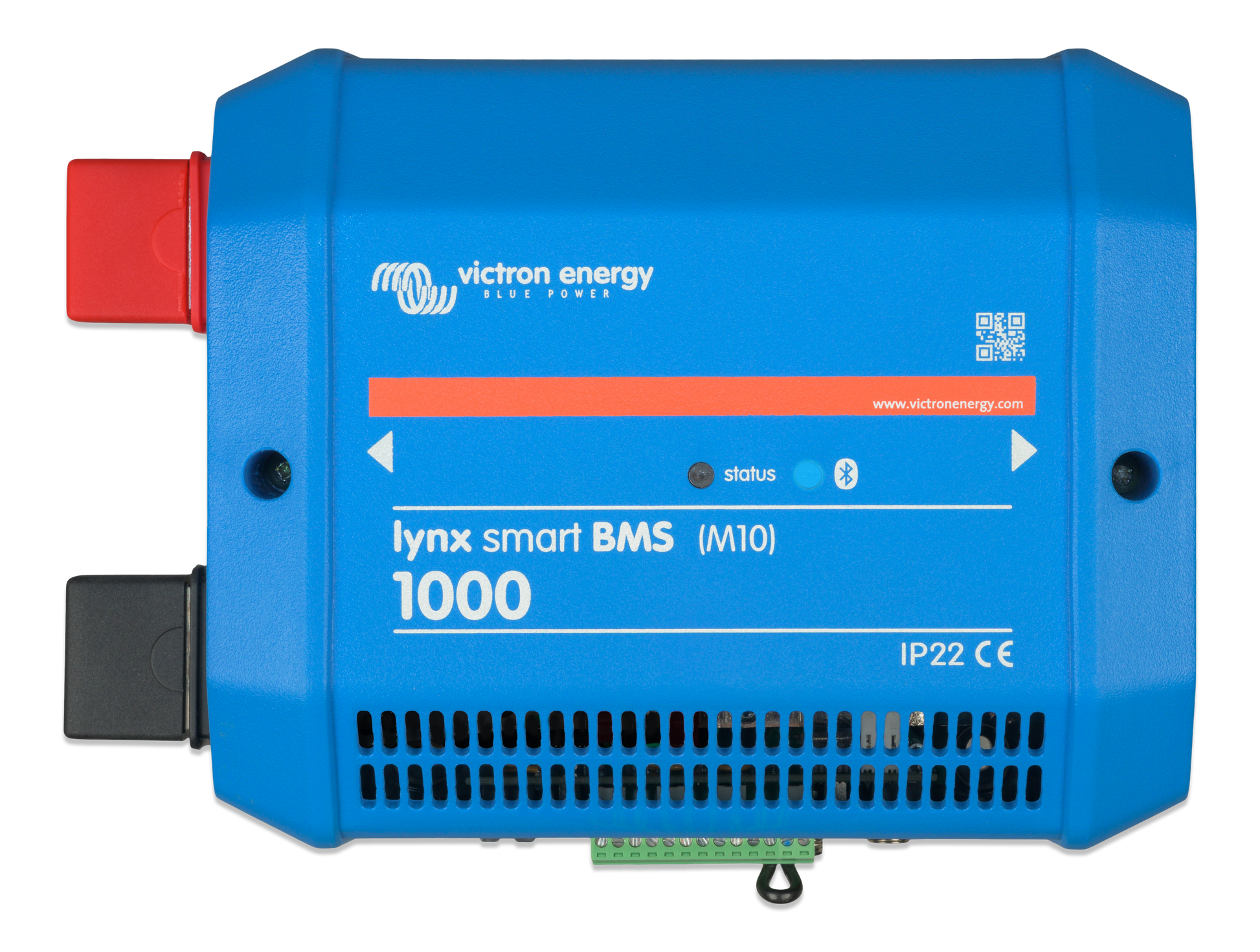

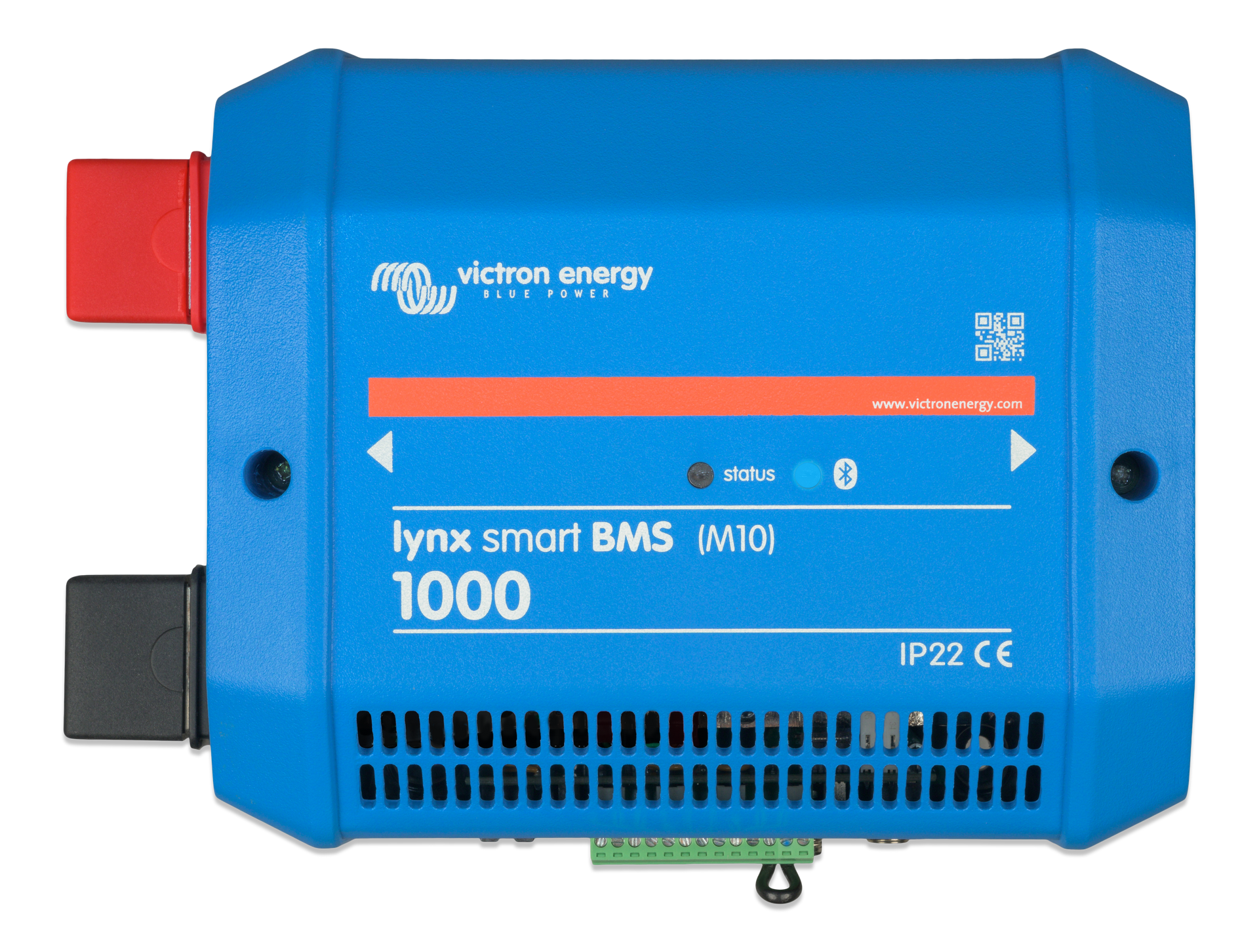

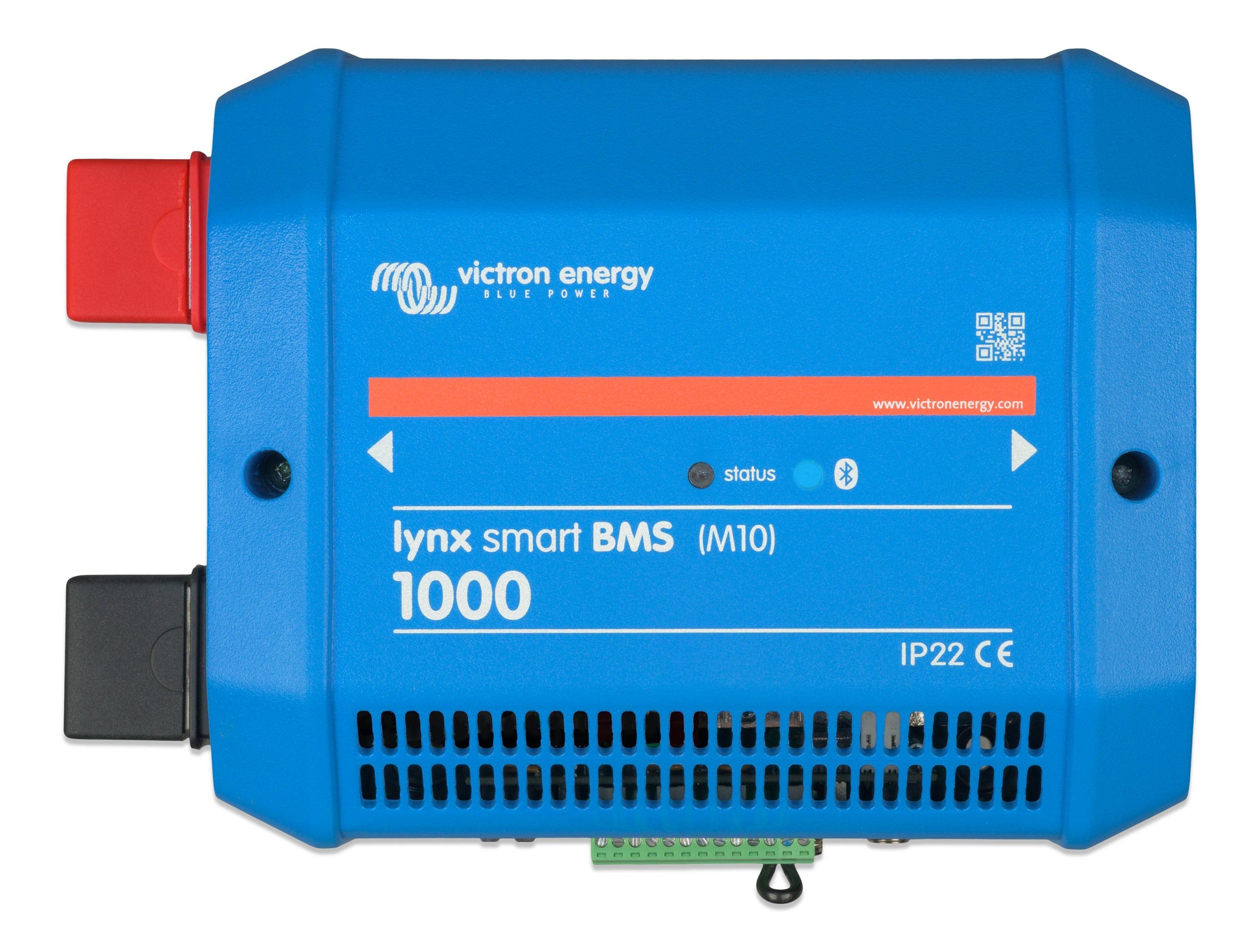

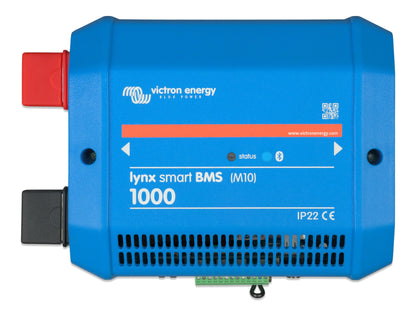

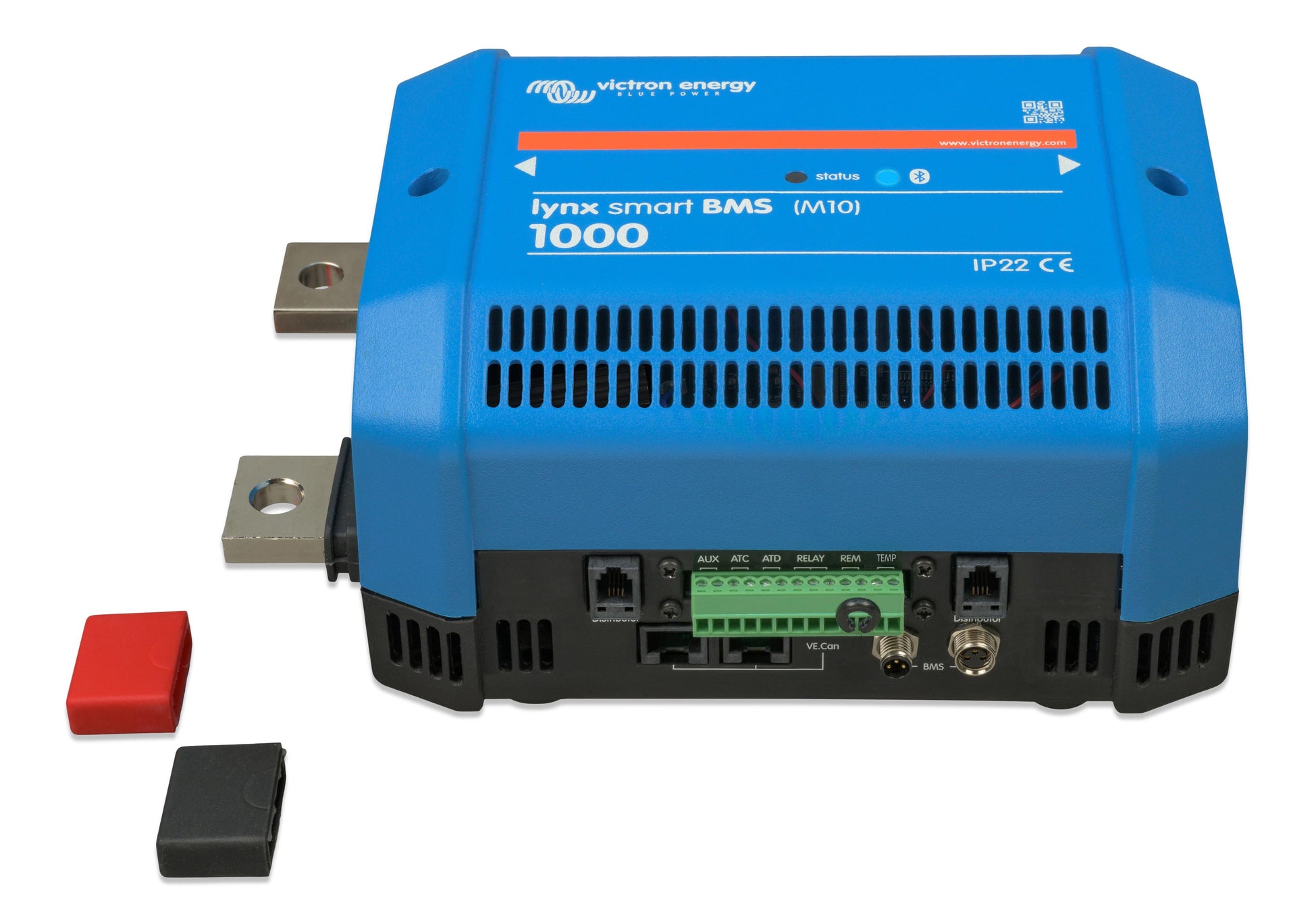

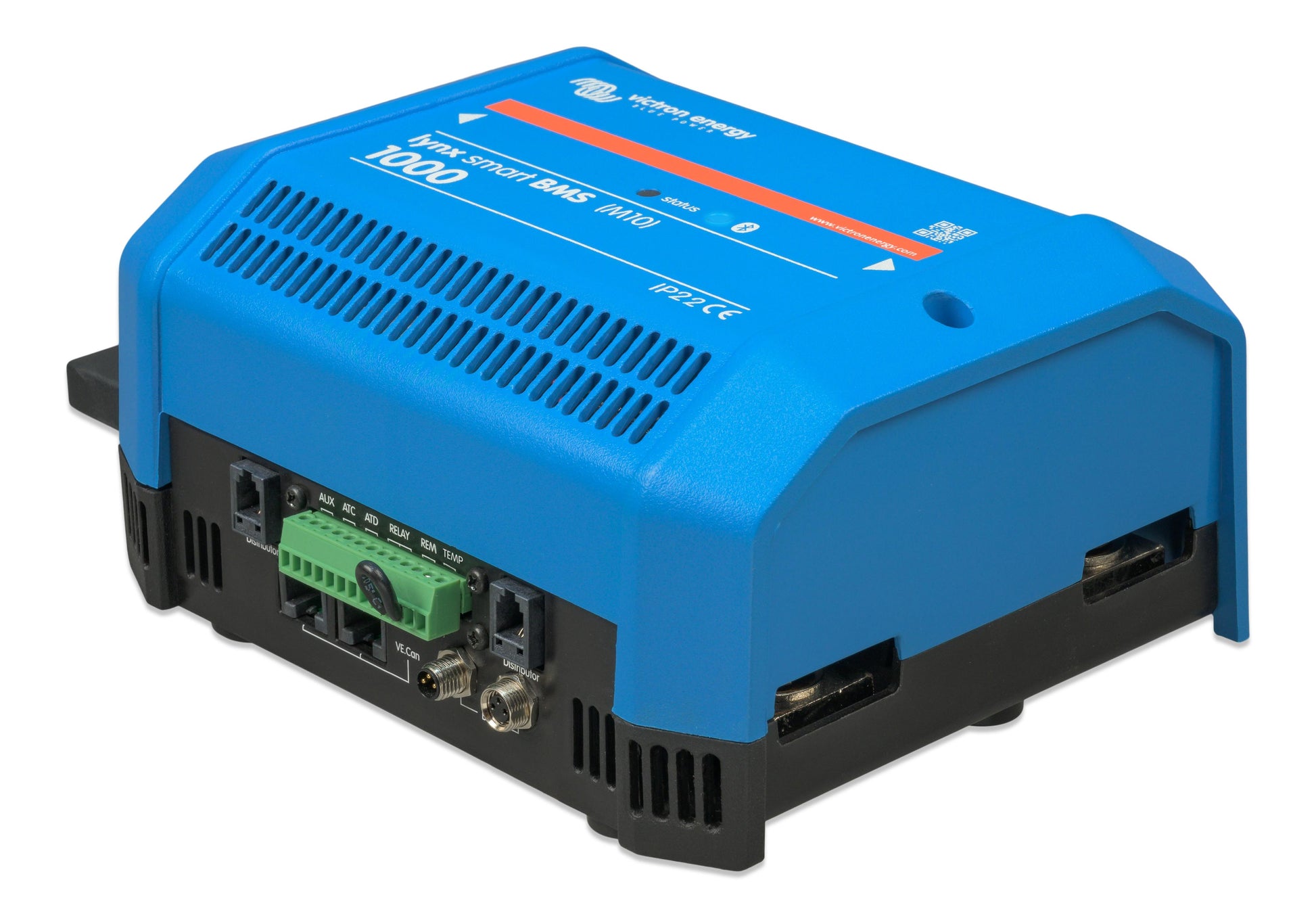

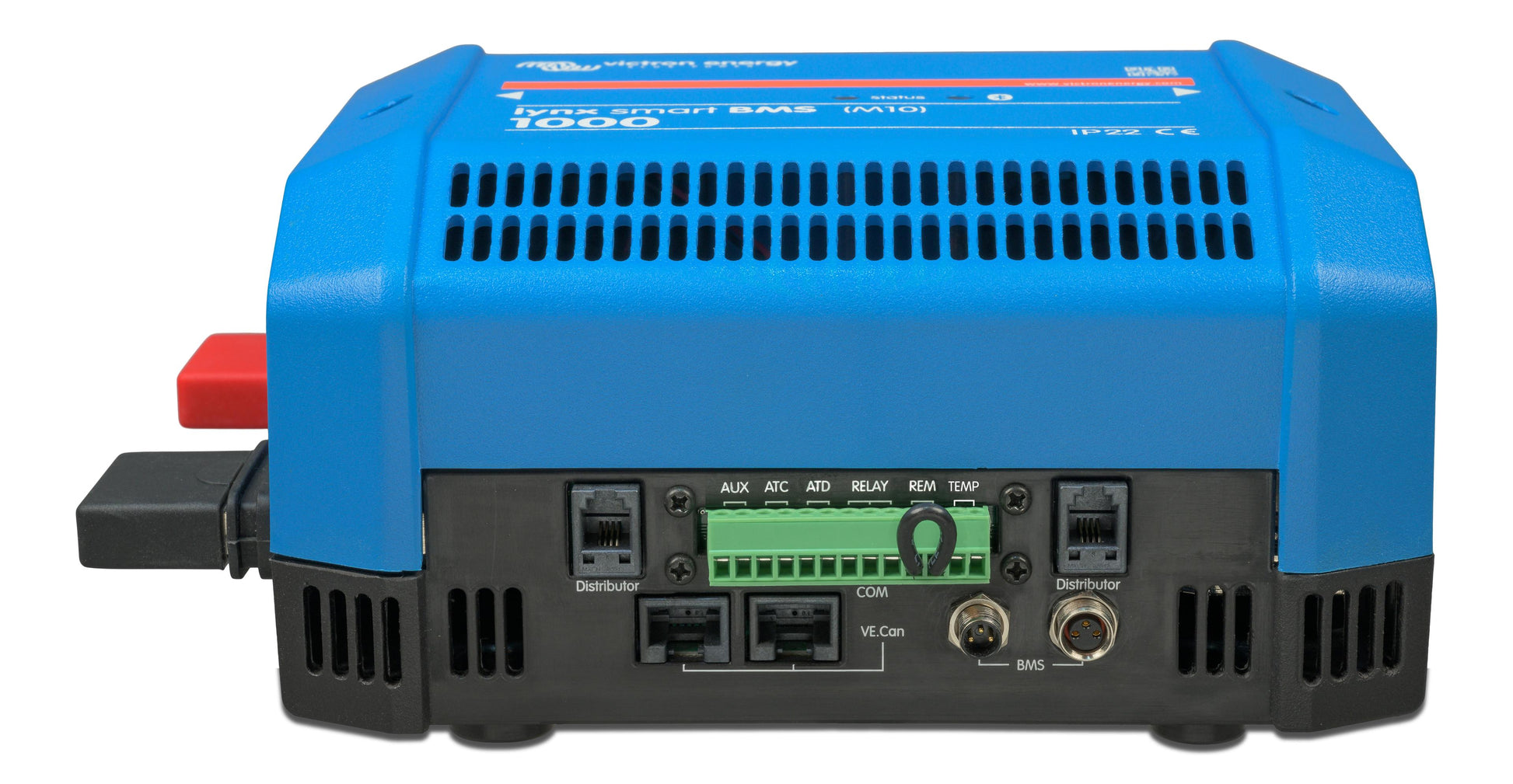

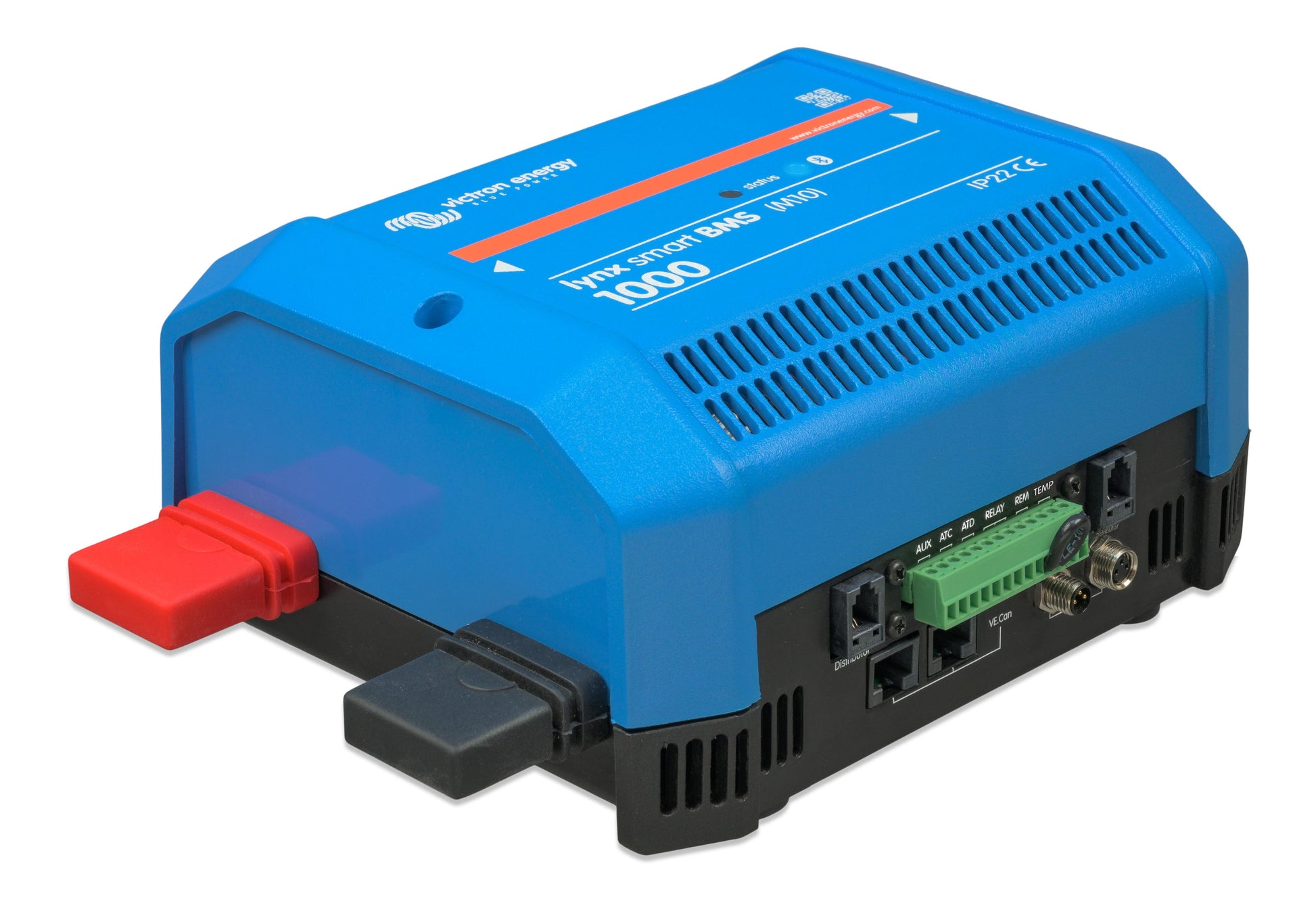

Victron Lynx Smart BMS 1000 (M10)

The Victron Lynx Smart BMS 1000 (M10) stands as the elite control center for high-capacity Victron Lithium Smart (LiFePO₄) battery installations. As the flagship management module within the modular Lynx Distribution architecture, this 1000A-rated device integrates an array of sophisticated safety features, including a heavy-duty contactor, a built-in pre-charge circuit, and high-precision monitoring. It is engineered to provide unmatched safety and closed-loop control for luxury marine vessels, expedition RVs, and robust off-grid energy hubs.

Beyond simple battery management, this unit acts as the primary safety gate for your DC system. By automatically managing charging parameters via DVCC (Distributed Voltage and Current Control) and preventing high inrush currents through its integrated pre-charge system, the Lynx Smart BMS 1000 protects your expensive inverter and charger components from electrical stress. Whether managed locally via Bluetooth or integrated into a larger network via a GX device, it offers total peace of mind for your high-power energy storage requirements.

The unit's M10 joint bolts make it directly compatible with other M10 Lynx modules - the Lynx Power In and Lynx Distributor - so it can be combined into one continuous, professionally organized busbar rather than a tangle of separate cables. An integrated shunt continuously measures pack voltage, current, and temperature, feeding accurate State of Charge and State of Health data to the system.

Monitoring and configuration are handled through the free VictronConnect app over Bluetooth, with no separate display required for basic setup. When paired with a GX device such as the Cerbo GX, the Lynx Smart BMS 1000 reports live status, alarms, and historical data to the Victron Remote Management (VRM) Portal, and can automatically request the correct charge and discharge current limits from connected Victron inverters and chargers via DVCC.

Features

1000A Continuous Safety Power Hub

Equipped with a massive 1000A contactor, this BMS provides a hardware-level safety disconnect for your battery bank, doubling as a professional-grade remote switch for system isolation.

Advanced Pre-Charge System

Eliminates the danger of high inrush currents when powering up large inverters. The internal circuit safely pre-conditions the DC bus capacitors before the main contactor is engaged.

Integrated Precision Shunt & Monitoring

Provides deep insight into your battery health, including SoC, voltage, and individual cell temperature, accessible directly through the VictronConnect app or a connected GX controller.

DVCC Closed-Loop Management

When paired with a Cerbo GX, the BMS automatically regulates Victron solar and inverter/charger performance in real-time, ensuring optimal charging based on actual battery cell data.

Distributor Health Tracking

Digitally interface with up to four Lynx Distributor modules to monitor up to 16 individual fuse positions, allowing for immediate identification of blown fuses via custom alarms.

Keep-Alive AUX Output

Maintains power to critical communication equipment (like a GX device) for several minutes even after a low-voltage shutdown, facilitating remote monitoring and diagnostics.
