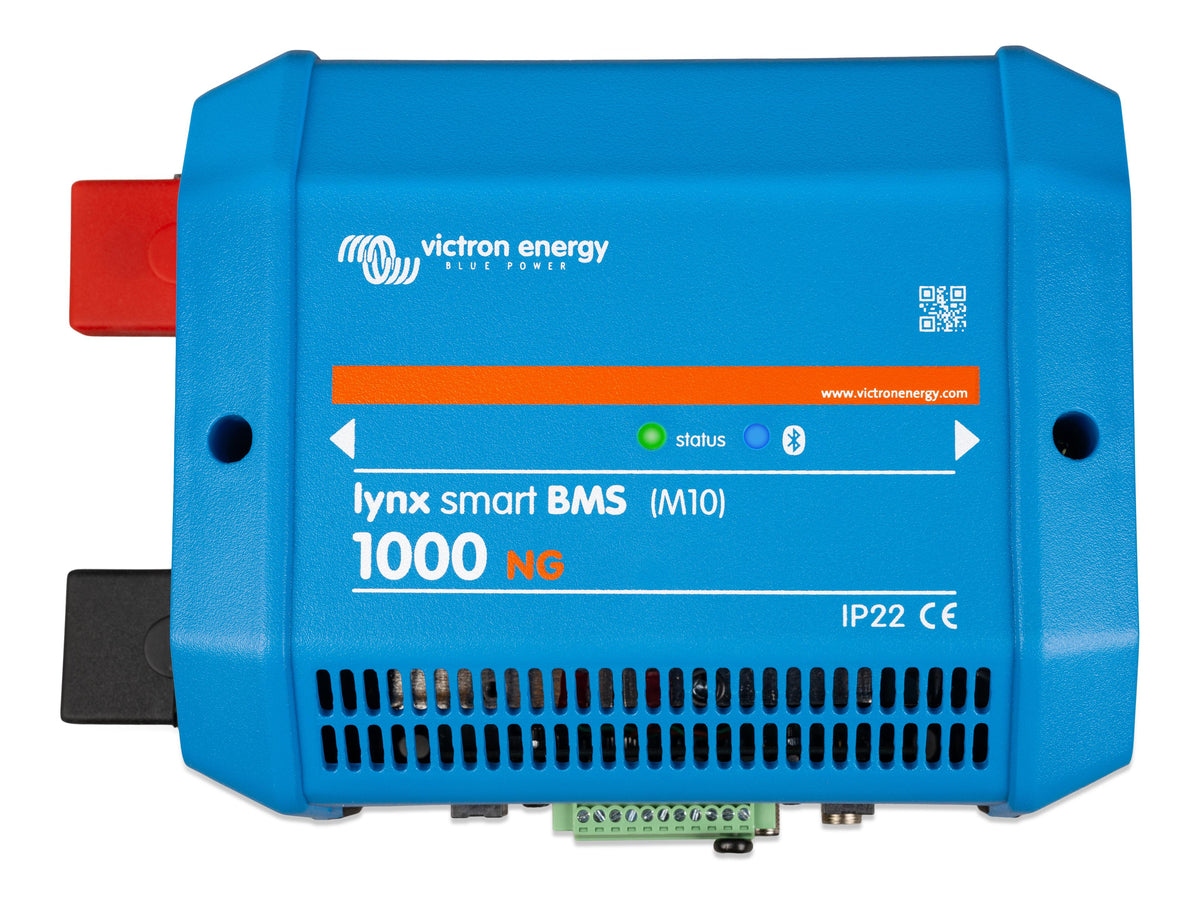

Victron Lynx Smart BMS NG

Lynx Smart BMS NG

Optimize Your Lithium NG Battery Bank Performance with Our Advanced BMS Solution

The Lynx Smart BMS NG is a state-of-the-art Battery Management System designed specifically for Victron Energy Lithium NG batteries. This sophisticated BMS ensures seamless performance, optimal safety, and efficient monitoring for Lithium NG battery banks available in nominal voltages of 12.8V, 25.6V, and 51.2V with various capacities. With two sizes available - 500A and 1000A - the Lynx Smart BMS NG provides a reliable, safe, and user-friendly solution for your energy storage needs.

Supporting a wide range of system configurations, including series, parallel, or a combination of both, our system accommodates 12V, 24V, and 48V systems. Each system can store up to 50 batteries, offering up to 192kWh (12V) or 384kWh (24V/48V) of energy storage. For added reliability and capacity, you can paralleling multiple Lynx Smart BMS units, expanding your system's performance.

Key Features

Integrated 500A or 1000A Contactor: Ensures safe fallback operation and remote-controlled main system switching. Battery Monitoring: Displays vital data, including state of charge, for efficient system management. Pre-Alarm Signal: Alerts you before system shutdown due to low cell voltage, providing ample time for corrective action. Bluetooth Connectivity: Set up, monitor, and diagnose your system hassle-free using our VictronConnect App. Local & Remote Monitoring: Compatible with Victron GX devices, such as the Cerbo GX and VRM portal, for real-time monitoring. M10 Busbar Integration: Seamlessly connects to all Lynx M10 products, ensuring smooth integration into the Lynx Distributor system.

Modular Solution for Your Energy Needs

The Lynx Smart BMS NG is an integral part of the modular Lynx Distribution system, providing a scalable and customizable solution for your energy storage needs.

• Built-in 500A or 1000A Contactor: Provides fallback safety and enables remote-controlled main system switching.
• Battery Monitoring: Displays state of charge and other vital data for efficient system management.
• Pre-Alarm Signal: Alerts before system shutdown due to low cell voltage
• Bluetooth Connectivity: Easily set up, monitor, and diagnose the system from our VictronConnect App.
• Local & Remote Monitoring: Compatible with Victron GX devices, like the Cerbo GX, and the VRM portal for real-time monitoring.
• M10 Busbar Integration: Seamlessly connects to all Lynx M10 products, ensuring smooth integration into the Lynx Distributor system.

Features

Integrated Battery Management System (BMS)

The Lynx Smart BMS NG is an all-in-one solution that monitors and manages your lithium batteries. It ensures optimal performance, extends battery lifespan, and provides critical protection against overcharge, over-discharge, and temperature extremes.

High Current Capability

Designed to handle significant power demands, this BMS can manage high charge and discharge currents, making it suitable for a wide range of demanding applications. Its robust design ensures reliable operation even under heavy loads.

Advanced Communication and Monitoring

Equipped with Victron VE.Can and Bluetooth connectivity, the Lynx Smart BMS NG offers comprehensive real-time monitoring and control. You can access detailed battery status, alarms, and configure settings directly from your smartphone via the VictronConnect app.

Modular and Scalable Design

As part of the Victron Lynx distributor system, this BMS can be easily integrated into a larger power system. Its modular design allows for expansion and customization, making it adaptable to evolving power needs.

Pre-Charge Circuit for Inverter Safety

The integrated pre-charge circuit safely charges large capacitor banks in inverters, preventing dangerous inrush currents and potential damage. This feature significantly enhances the longevity and reliability of connected inverter systems.

Replaceable Fuse with Status Indicator

It features a replaceable main fuse, simplifying maintenance and ensuring continuous protection. A clear LED indicator provides instant visual feedback on the fuse status, allowing for quick troubleshooting.
