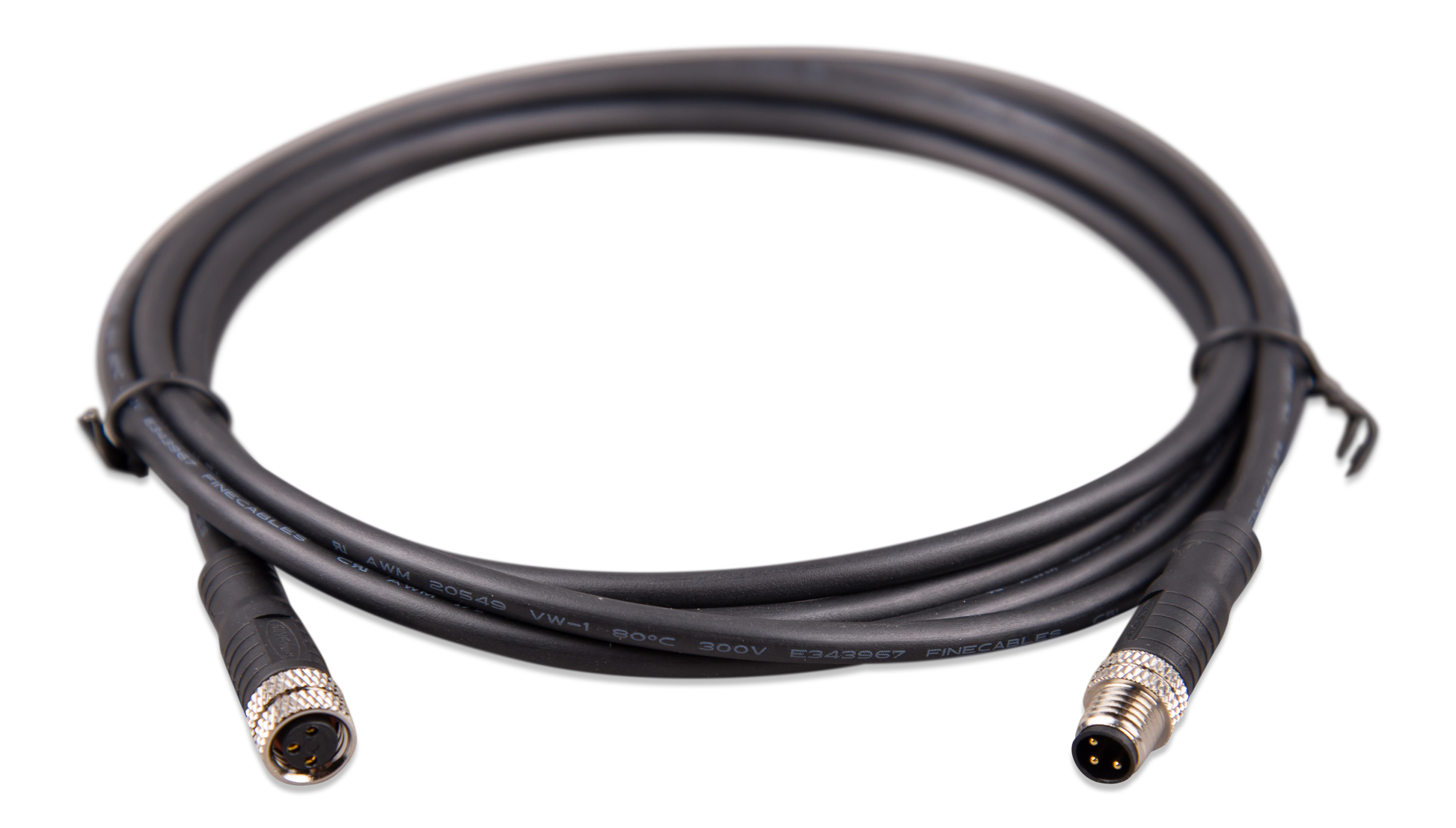

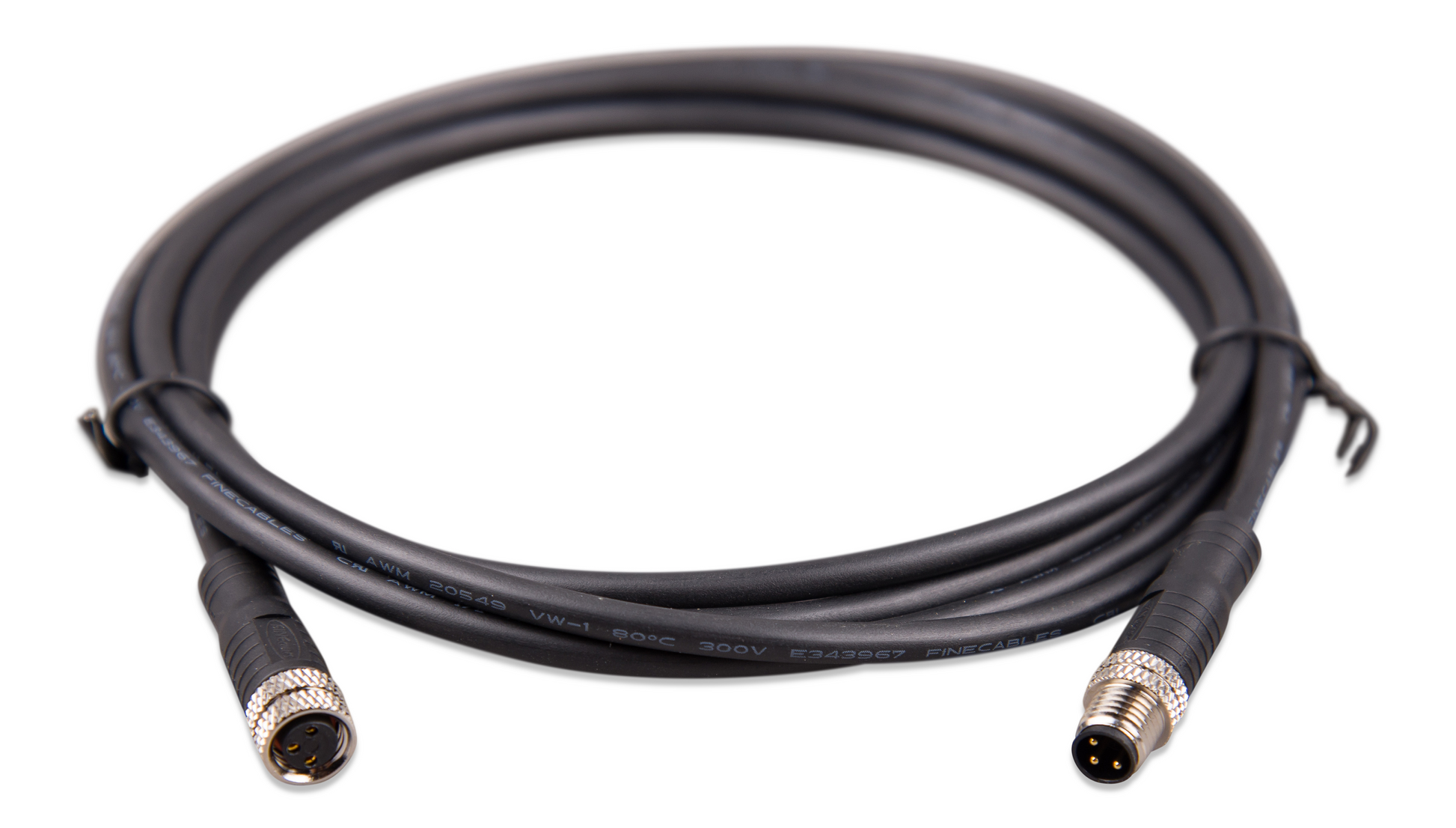

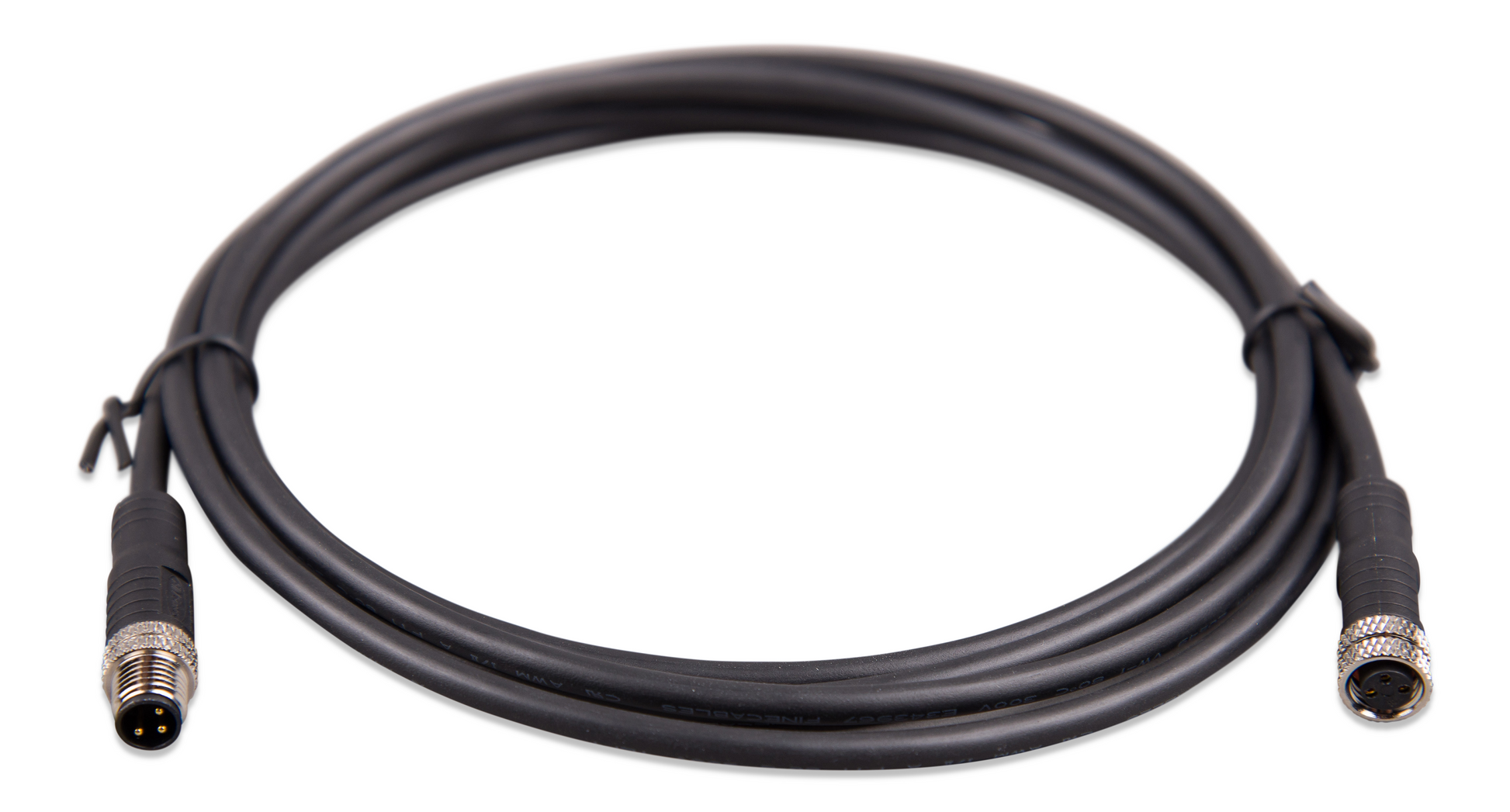

Victron M8 circular connector Male/Female 3 pole cables

The Victron M8 Circular Connector Male/Female 3 Pole Cable is a BMS communication extension cable designed to extend the M8 BMS signal cables between Victron Lithium Battery Smart batteries and a compatible SmallBMS or VE.Bus BMS — or between Lithium NG batteries and a compatible NG BMS. Available in 1m, 2m, 3m, and 5m lengths, each pack contains two cables, providing exactly the pair needed to daisy-chain an additional battery into a BMS communication network or to extend an existing BMS cable run where the standard battery BMS cable does not reach the BMS unit.

The M8 circular connector is the standard BMS communication interface on all Victron Lithium Battery Smart and Lithium NG batteries. The male connector on one end of the cable plugs into the female M8 port on the battery or the preceding cable in the chain, while the female connector on the other end accepts the next battery's male M8 BMS cable — enabling batteries to be daisy-chained in series along the BMS communication network regardless of the physical distance between batteries and the BMS.

Commonly used where batteries are distributed across a larger physical space — such as in multiple battery compartments on a vessel, in separate bays of a vehicle, or in a large off-grid battery room — the M8 extension cable allows the BMS communication chain to be routed across longer distances without compromising BMS monitoring integrity. The secure threaded M8 circular connector ensures a stable, vibration-resistant connection in mobile and marine installations.

Suitable for use with both Victron Lithium Battery Smart (used with SmallBMS or VE.Bus BMS) and the newer Victron Lithium NG batteries (used with NG BMS variants), the M8 Circular Connector Male/Female 3 Pole Cable is an essential accessory for any multi-battery Victron lithium system where extended BMS cable routing is required.

Features

Extends BMS Communication Cables in Multi-Battery Systems

Designed specifically to extend the M8 BMS communication cable chain between Victron Lithium Battery Smart or Lithium NG batteries and their respective BMS — enabling reliable BMS monitoring and protection in systems where batteries are physically separated from the BMS unit or from each other.

Compatible with Lithium Battery Smart and Lithium NG Batteries

Suitable for use with Victron Lithium Battery Smart batteries (in combination with the SmallBMS or VE.Bus BMS) and Victron Lithium NG batteries (in combination with NG BMS variants) — making it a universally applicable extension cable across current and next-generation Victron lithium battery families.

Secure M8 Threaded Circular Connector

The M8 circular connector format uses a threaded locking ring to secure the connection against vibration and accidental disconnection — making it particularly well suited to mobile installations on boats, RVs, and vehicles where cable connections are exposed to constant movement and vibration.

Male/Female Configuration for Daisy-Chain Routing

The male connector on one end and female connector on the other allows the cable to be inserted anywhere in an existing BMS communication chain — extending the run between batteries or between the last battery and the BMS without requiring any modification to existing cables or connectors.

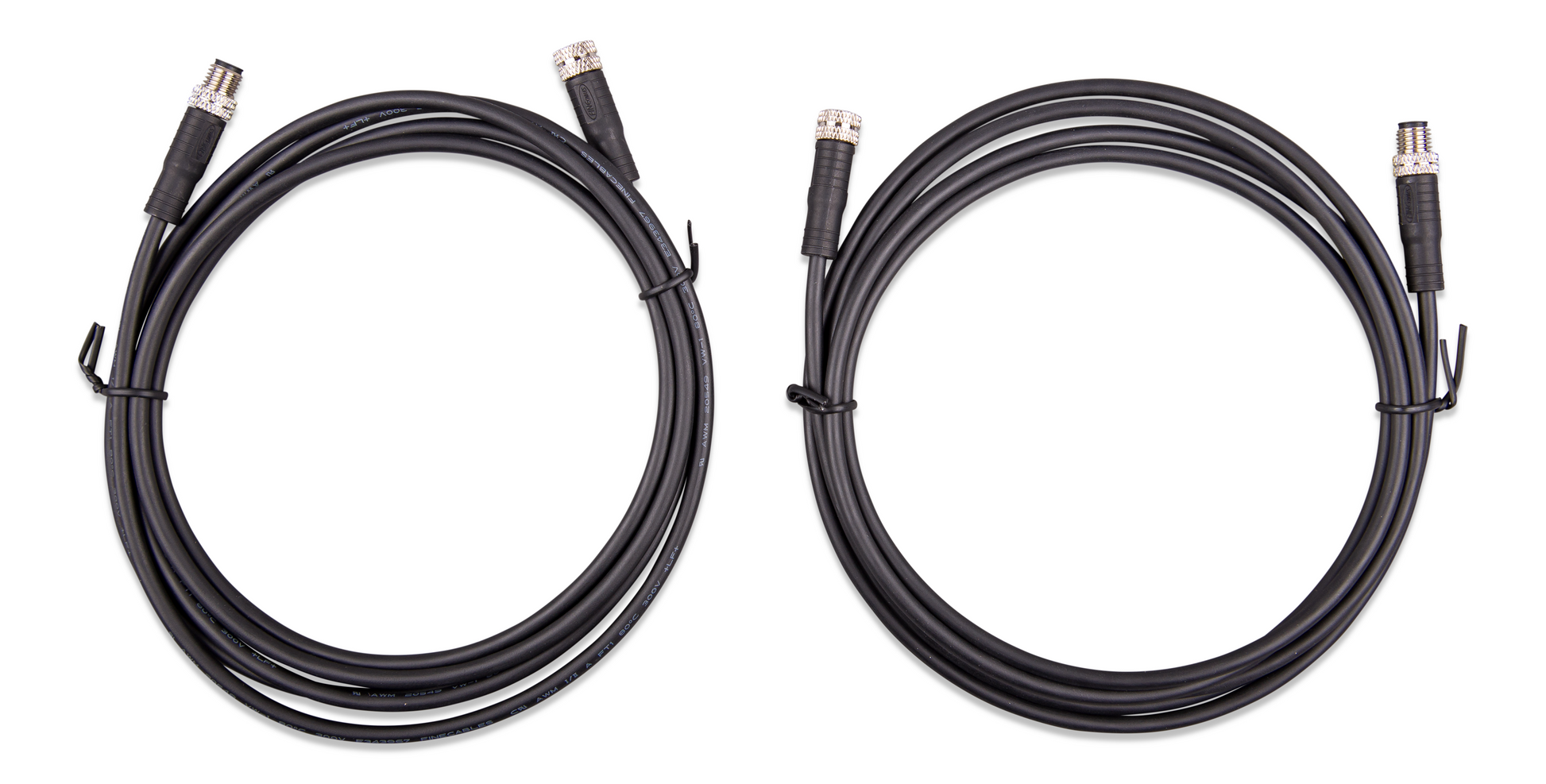

Supplied as a Bag of Two Cables

Each pack contains two extension cables of the selected length — providing a pair for use in a dual-battery or multi-battery chain installation, or one for immediate use and one as a spare, particularly useful in remote marine and off-grid installations.

Available in Four Lengths — 1m, 2m, 3m, and 5m

Available in 1m, 2m, 3m, and 5m lengths to suit installation layouts of varying scale — from compact battery bank installations where a short extension is needed, to large battery rooms or multi-compartment vessel installations requiring a longer communication cable run.

Specifications
