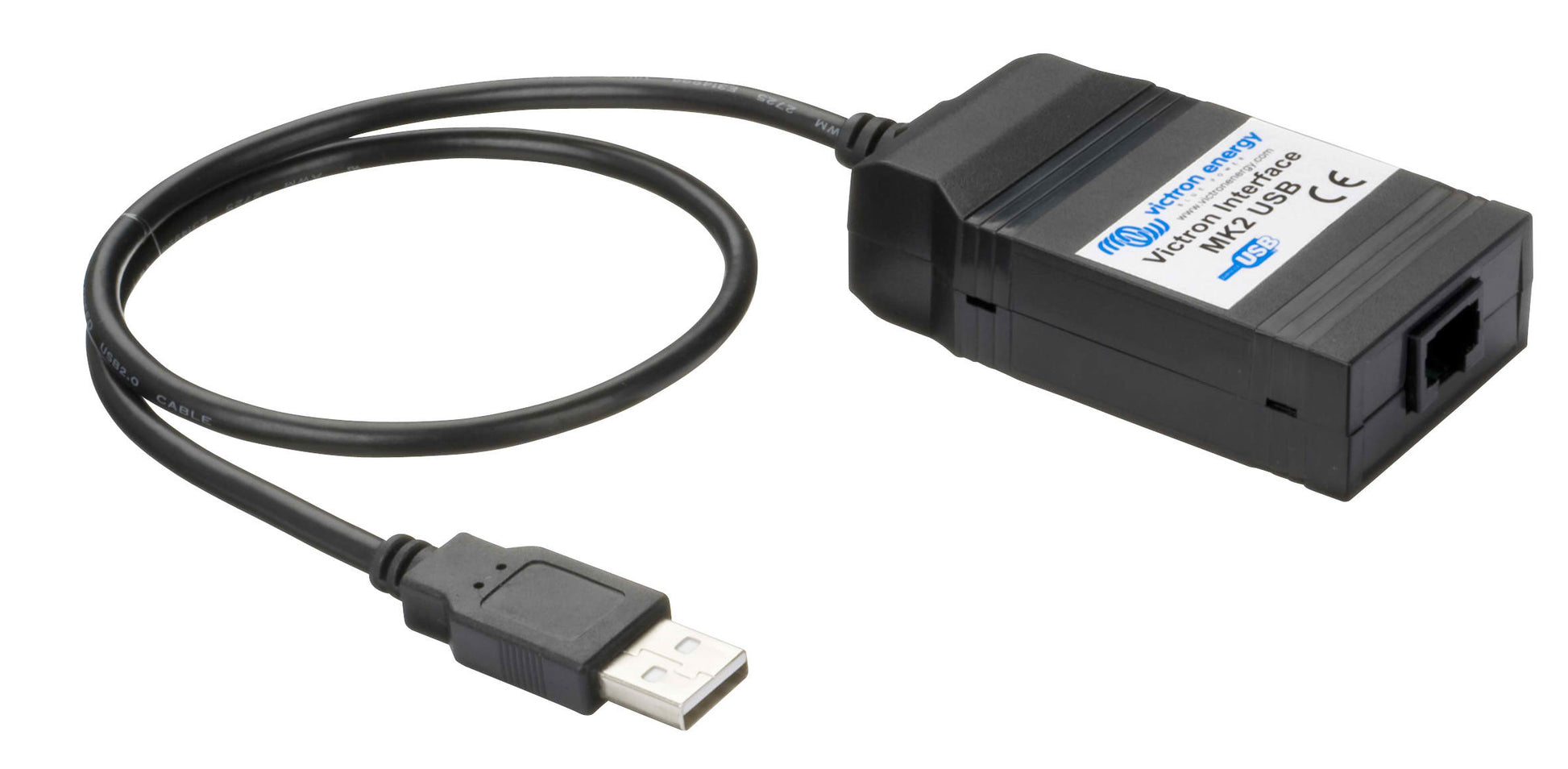

Victron Interface MK2-USB Adapter

The Victron Interface MK2-USB is a dedicated diagnostic and configuration tool designed to bridge the gap between your legacy Victron Phoenix Inverters/Chargers and a Windows PC. By converting the device's RS-485 data port into a standard USB connection, this interface allows you to fully customize device parameters, monitor performance, and update firmware using Victron’s free VEConfigure and VEFlash software tools.

This adapter is specifically engineered for the older generation of Phoenix products utilizing the RS-485/VE.9bit protocol. Whether you are adjusting charging profiles or configuring inverter setpoints, the MK2-USB provides a reliable, plug-and-play link. Note: This unit is intended for the legacy Phoenix RS-485 series. For modern VE.Bus products like the MultiPlus-II or Quattro, please use the Interface MK3-USB adapter instead.

Features

RS-485 to USB Connectivity

Seamlessly bridges the RS-485 data port of classic Phoenix Inverters and Chargers to your computer’s USB port for easy configuration and diagnostics.

Powered via USB

Eliminates the need for external power adapters; the interface draws all necessary power directly from your PC’s USB port, streamlining your setup process.

Broad Legacy Model Support

Fully compatible with a wide range of RS-485-equipped Phoenix models, including 12V, 24V, and 48V units ranging from 1200VA up to 10,000VA.

Compatible with Pro Software

Enables full functionality within Victron’s VEConfigure (for parameter adjustments) and VEFlash (for firmware updates) software environments.

Standard RJ45 Interface

Utilizes common RJ45 UTP network cabling to connect to the target device, making it easy to replace or extend the connection if needed.
