Victron MPPT Control Remote Display

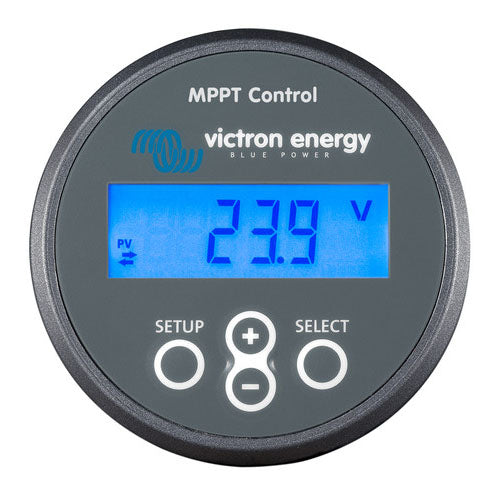

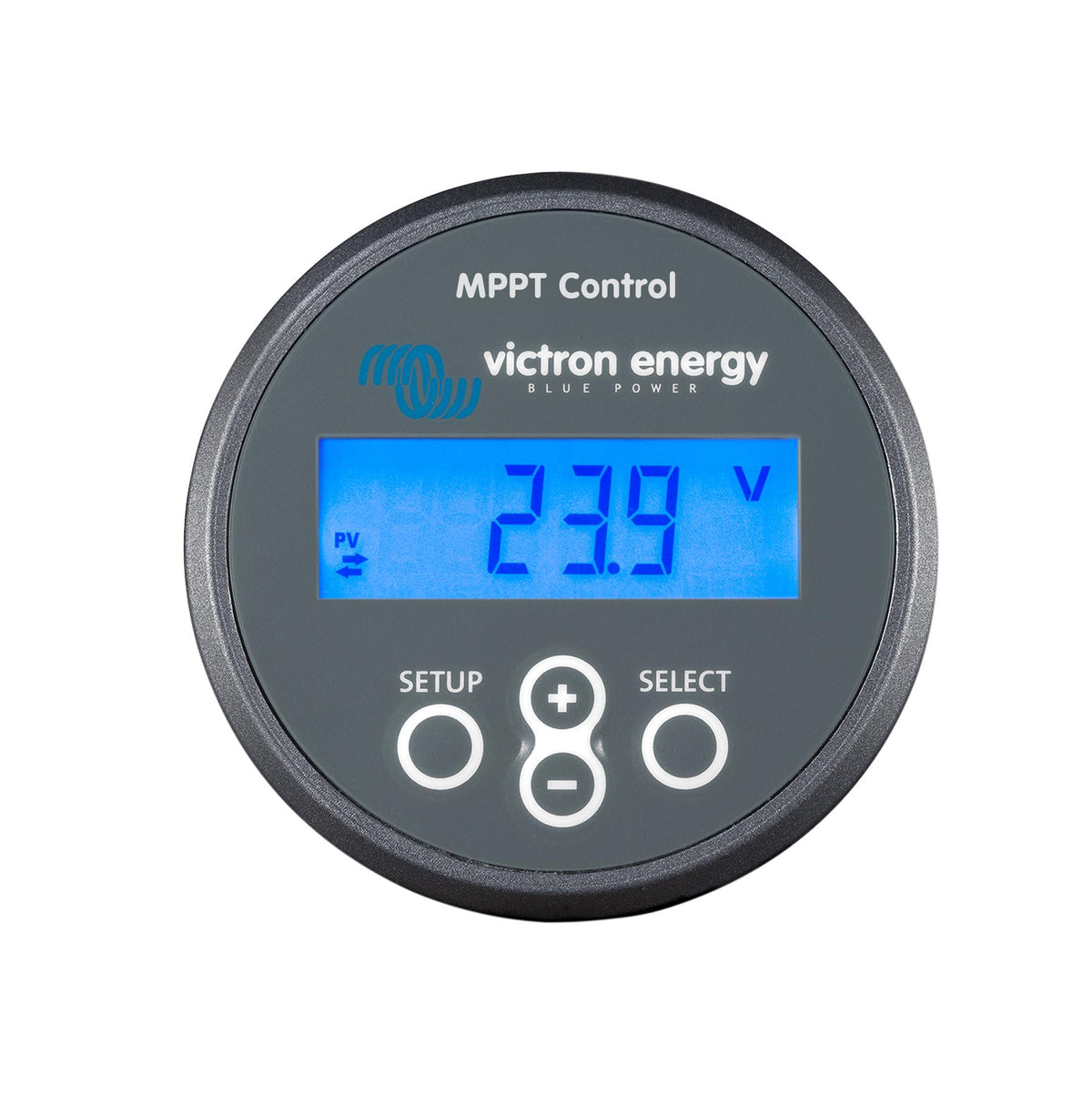

The Victron MPPT Control Remote Display is a dedicated panel-mount display for the full range of Victron BlueSolar and SmartSolar MPPT solar charge controllers equipped with a VE.Direct communications port. Housed in the familiar BMV-700-style enclosure, it gives the same clean, professional look as a Victron battery monitor while providing live and historical readouts, plus on-screen configuration, for the connected solar charger.

Live status readings cycle through PV power, PV voltage, daily PV yield, battery charge stage, battery current and voltage, and - on solar chargers equipped with one - load output state and current. A dedicated history menu stores both daily and cumulative totals, including total yield, maximum panel and battery voltage, minimum battery voltage, the last four fault codes, and 30 days of daily yield, power, voltage, and charge-stage-duration records for reviewing system performance over time.

Beyond monitoring, the display doubles as a configuration tool: battery voltage, battery type, maximum charge current, absorption and float voltages, bulk and absorption time limits, and other common solar-charger settings can all be viewed and adjusted directly from the front panel, without a laptop or the VictronConnect app. For chargers rated 60A and above, Victron recommends the SmartSolar Control display instead, which supports the additional settings available on those larger models.

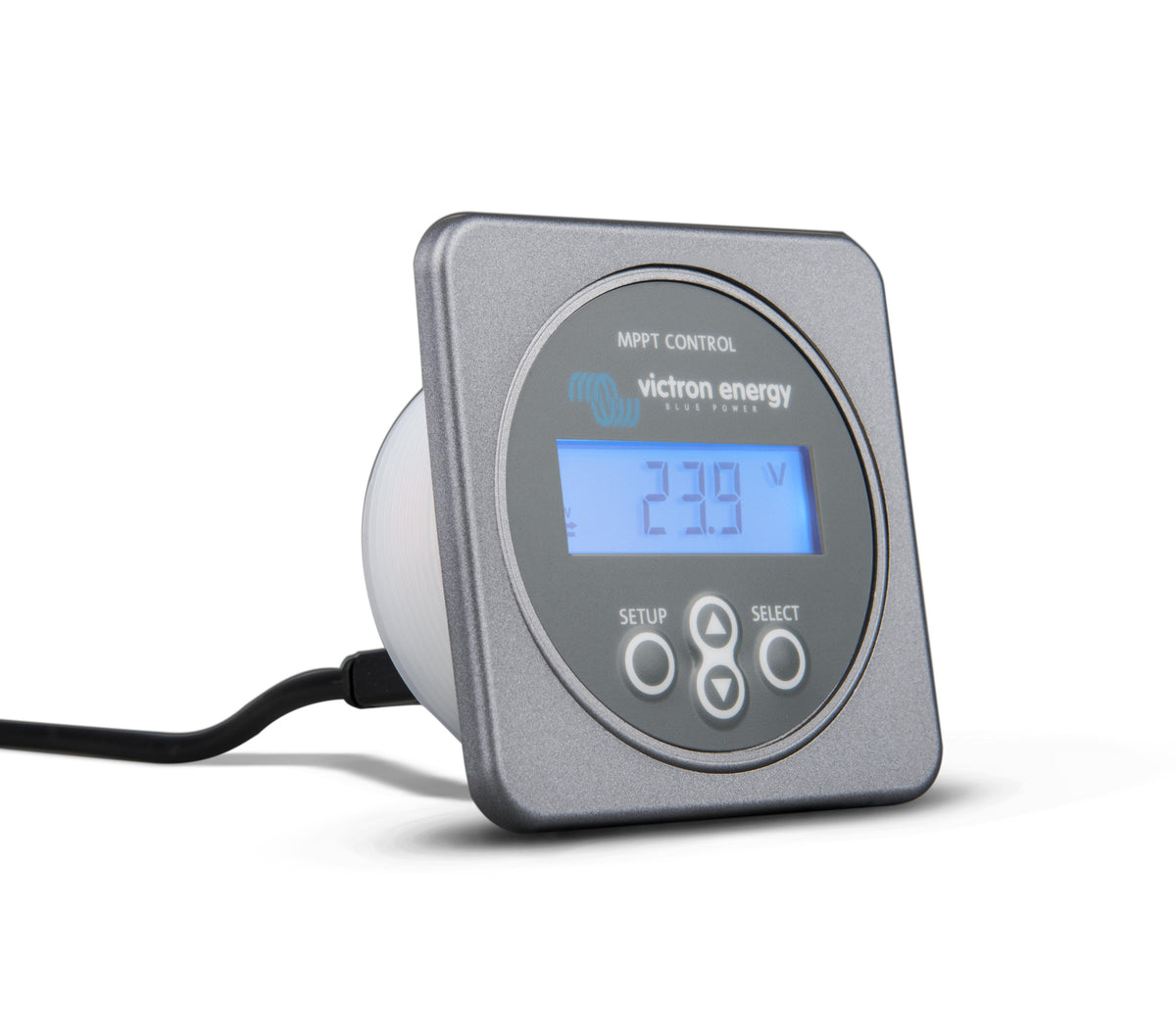

The housing is designed for flush panel mounting; where flush mounting isn't practical, a separate wall-mount enclosure (sold separately) lets the same display be surface-mounted. A VE.Direct cable, purchased separately in the length needed, connects the display to the solar charger; the included fused power cable is only required for a small number of very early solar charger models that cannot power the display over the VE.Direct connection itself.

Features

Live Solar Charger Monitoring

Displays real-time PV power, PV voltage, battery voltage and current, charge stage, and load output state and current on chargers equipped with a load output.

30-Day and All-Time History

Logs daily solar yield, maximum power, maximum and minimum panel/battery voltage, and time spent in each charge stage for the past 30 days, plus cumulative all-time totals and the last four fault codes.

On-Screen MPPT Setup

Views and edits common solar charger settings - battery voltage, battery type, maximum current, and absorption/float parameters - directly from the front panel.

Familiar BMV-Series Housing

Shares the same compact flush-mount housing as the Victron BMV-700 series, keeping a consistent, professional look across a panel of Victron instruments.

Flexible Mounting

Flush-mounts through a panel out of the box, or pairs with a separate wall-mount enclosure (sold separately) for surface mounting.
