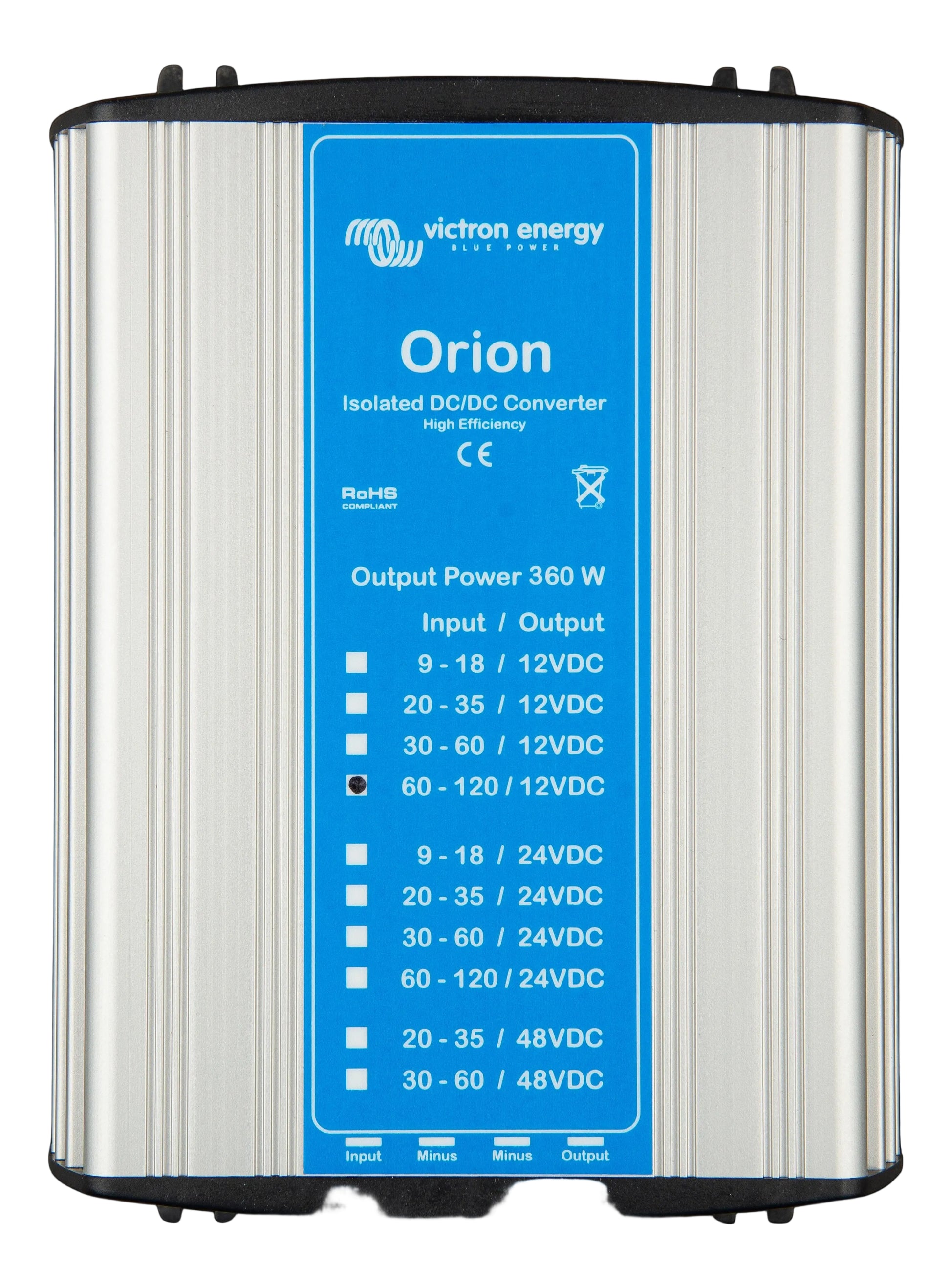

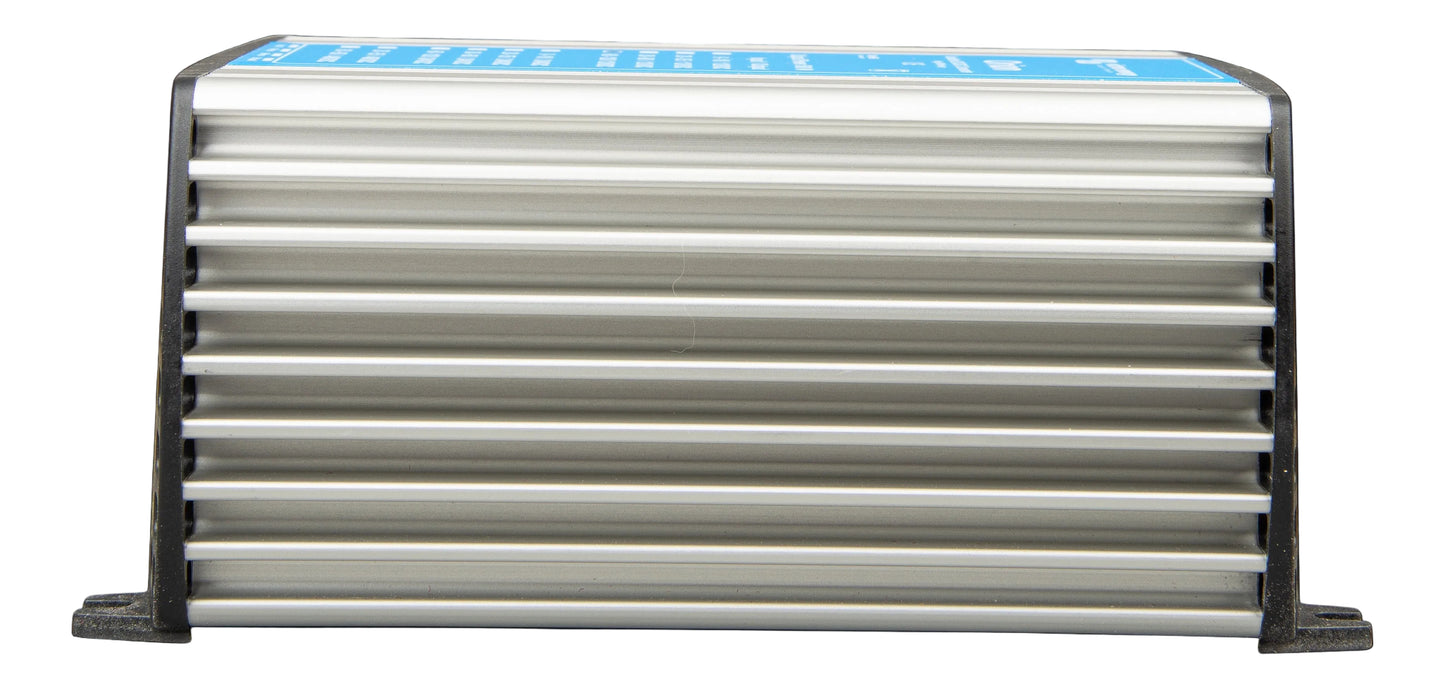

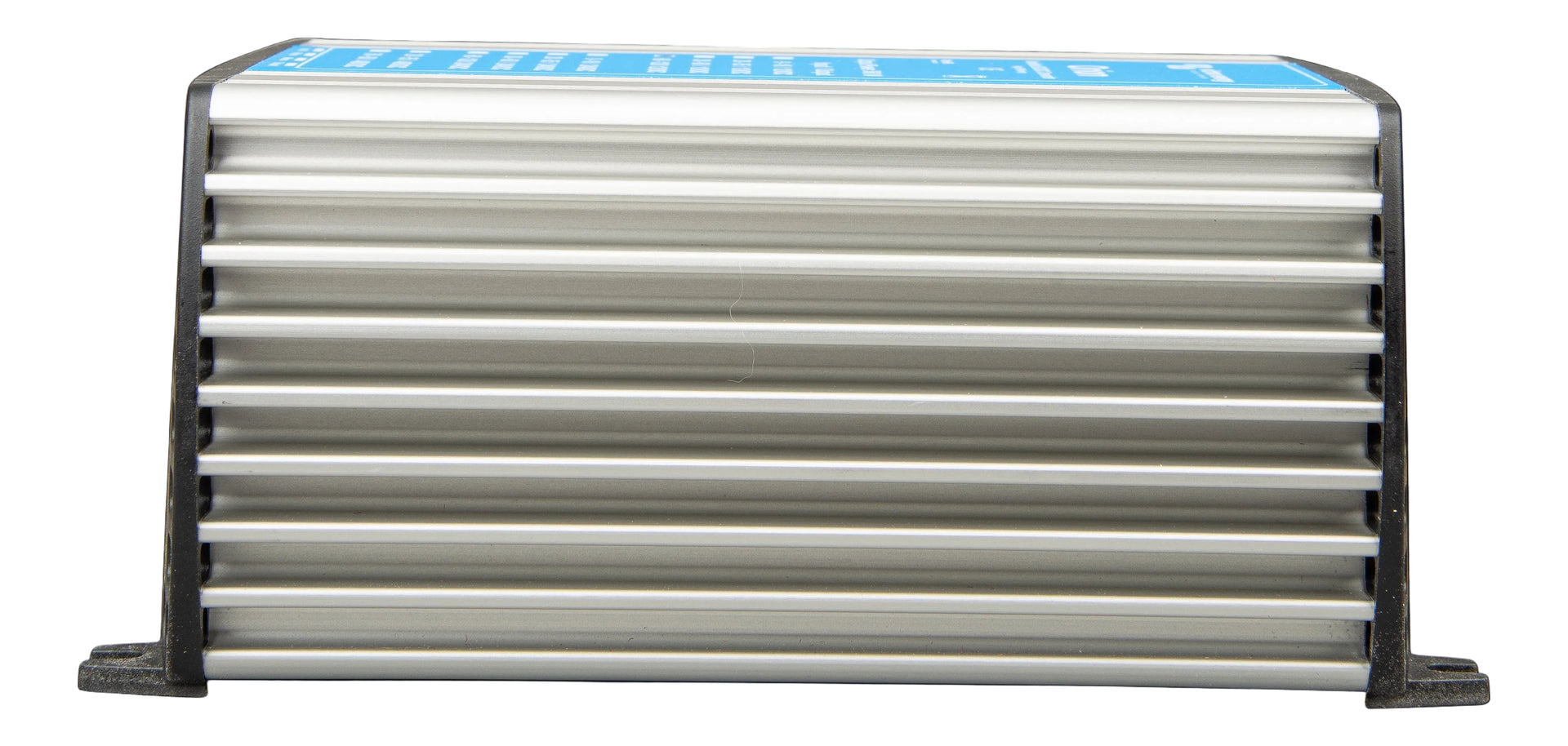

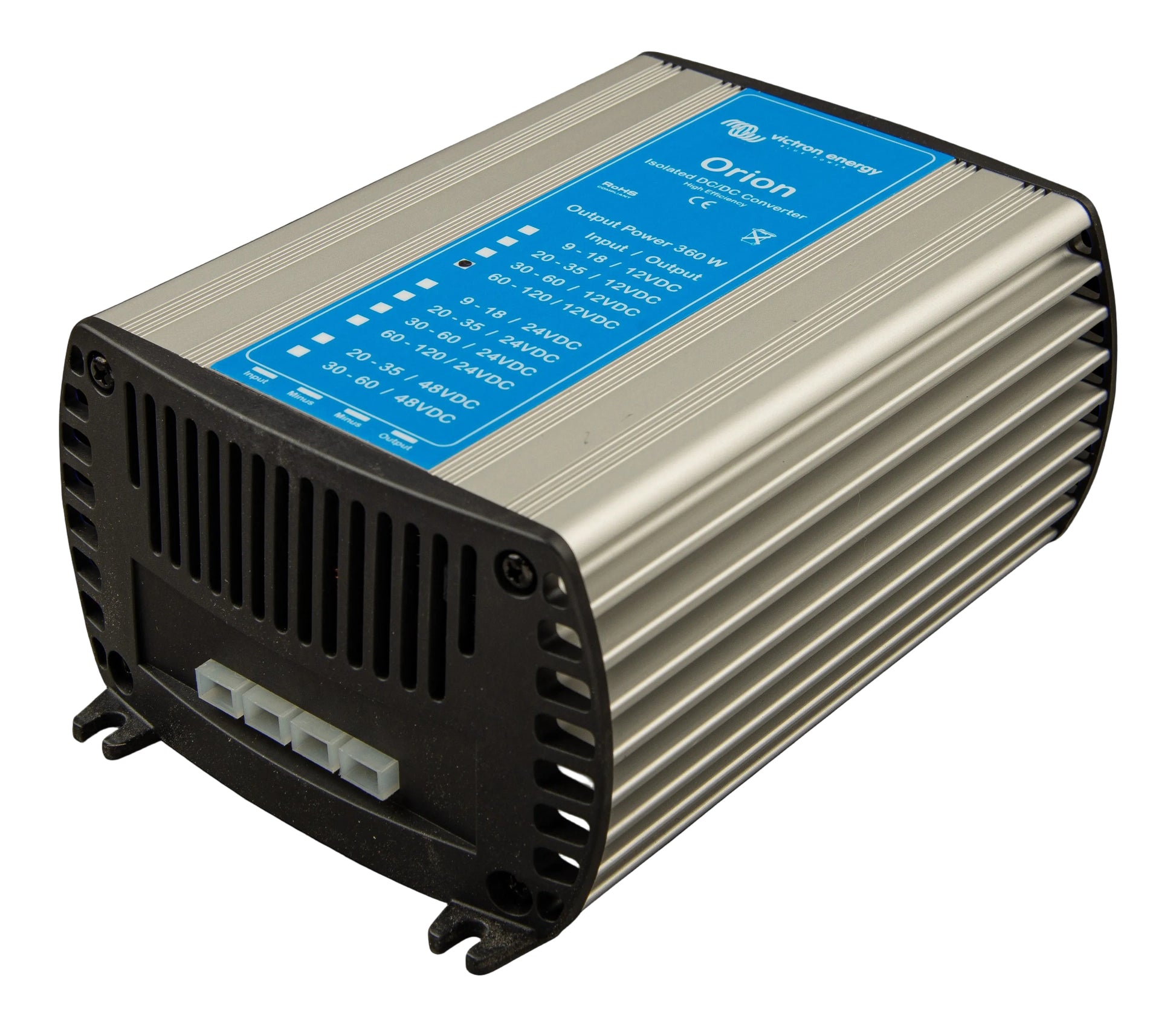

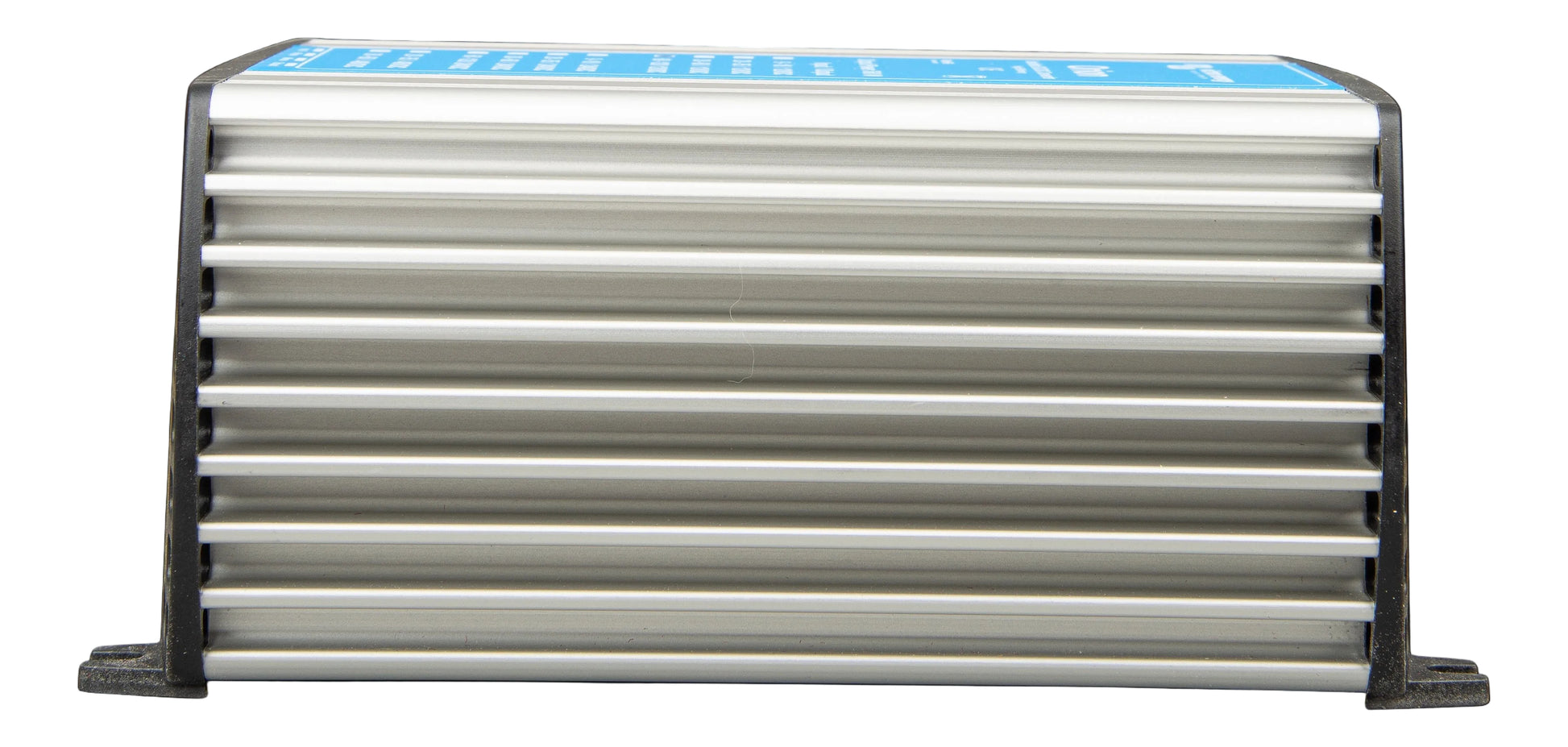

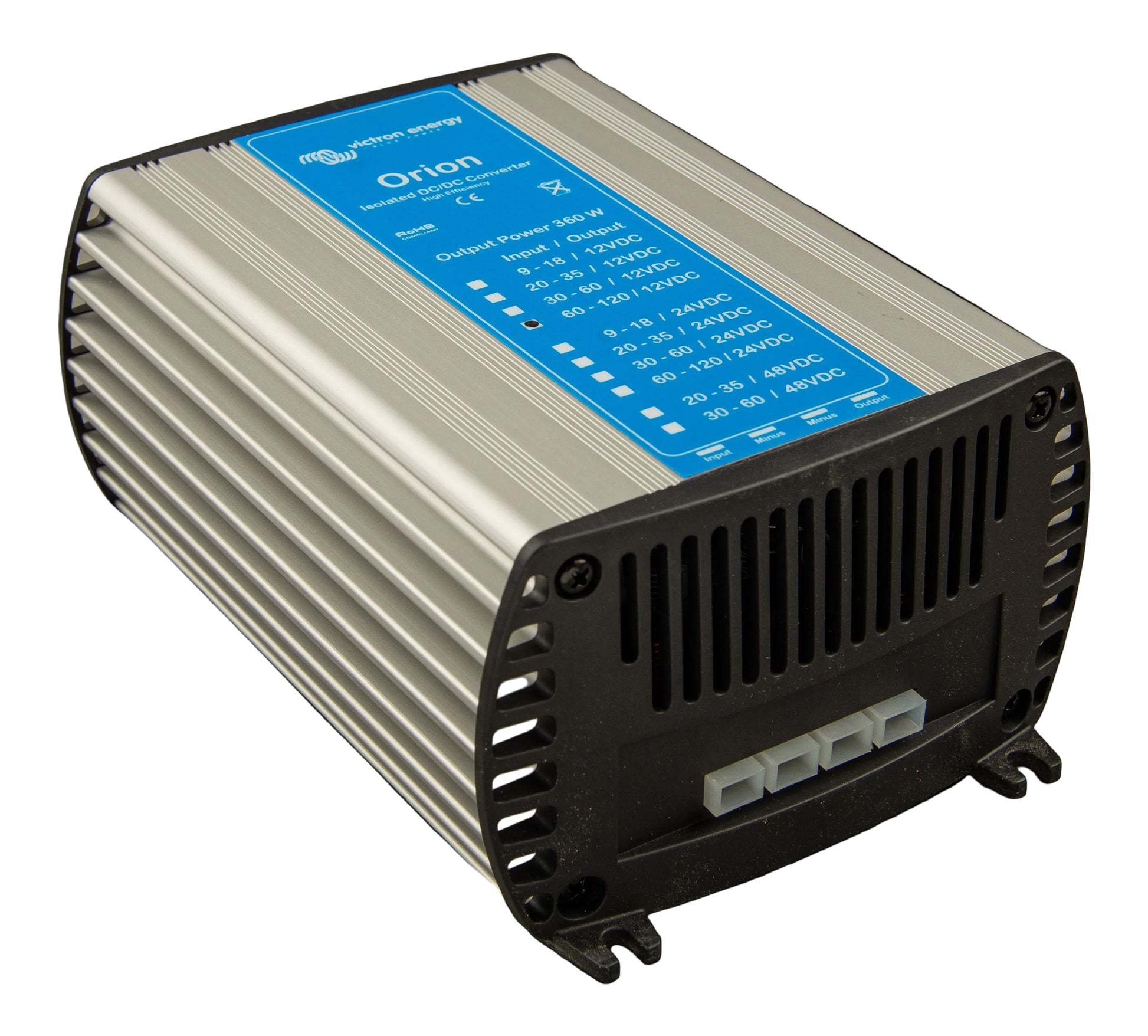

Victron Orion 110/24-15A (360W) Isolated DC-DC Converter
Regular price
$366.35
Sale price
$366.35
Regular price
$431.00
Unit price
per
VCV70393
ORI110243610
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
The Victron Orion 110/24-15A (360W) Isolated DC-DC Converter is a high-performance power conversion solution designed to provide reliable and stable DC power in demanding mobile, marine, and industrial applications. Built by Victron Energy, this unit efficiently converts input voltage from 110V DC to a regulated 24V DC output, delivering up to 15A (360W) of continuous power.
Engineered with full galvanic isolation between input and output, the Orion 110/24-15A ensures maximum safety and protects sensitive electronics from voltage spikes, ground loops, and electrical interference. This makes it especially suitable for complex electrical systems found in boats, RVs, commercial vehicles, and off-grid installations where multiple power sources are used.
The converter features high efficiency and low heat generation, allowing it to operate reliably even in enclosed or high-temperature environments. Its robust aluminum housing enhances durability and provides excellent protection against vibration and harsh operating conditions.
Installation is straightforward thanks to clearly labeled terminals and a compact design that allows flexible mounting in tight spaces. The Orion series is also known for its consistent output voltage, ensuring that sensitive equipment such as communication devices, navigation systems, and control electronics receive clean and stable power at all times.
Whether you are stepping down voltage in a marine electrical system or integrating multiple battery banks in a mobile power setup, the Victron Orion 110/24-15A offers dependable performance, long service life, and professional-grade power management. It is a trusted choice for users who require efficiency, safety, and reliability in one compact DC-DC converter solution.
Key Features
- Wide input voltage range: Operates from 110V DC (60–140V DC range), ideal for high-voltage battery systems and industrial applications.
- Stable 24V output: Delivers a regulated 24V DC output at up to 15A (360W continuous power).
- Galvanic isolation: Provides full electrical isolation between input, output, and chassis for improved safety and noise reduction.
- Adjustable output voltage: Output can be fine-tuned, allowing use as a DC-DC converter or battery charger.
- Remote on/off control: Enables low-power switching via ignition switch or external control signal.
- Short-circuit & overload protection: Built-in electronic protection ensures safe operation under fault conditions.
- Parallel operation capability: Multiple units can be connected in parallel to increase total output current.
- High efficiency design: Optimized for minimal energy loss and reliable long-term performance in demanding environments.
- Rugged construction: IP43-rated enclosure (when mounted correctly) suitable for marine, automotive, and industrial use.
- Easy installation: Screw terminals and compact aluminum housing for straightforward mounting and wiring.
Technical Specifications
| Model | Victron Orion 110/24-15A (ORI110243610) |
|---|---|
| Type | Isolated DC-DC Converter |
| Nominal Power | 360 W |
| Input Voltage Range | 60 – 140 V DC (nominal 110 V DC) |
| Output Voltage | 24 V DC (adjustable) |
| Output Current | 15 A |
| Galvanic Isolation | Yes (>400 Vrms input/output/case) |
| Efficiency | High efficiency DC-DC conversion (approx. up to 90% depending on load) |
| Protection Features | Short circuit protection, over-temperature protection, over-voltage protection, reverse polarity protection |
| Cooling | Fan-assisted / temperature controlled |
| Remote On/Off | Yes (low-power switch or ignition controlled) |
| Parallel Operation | Supported (units can be paralleled to increase output current) |
| Enclosure Protection | IP43 (when installed with terminals facing downward) |
| Connection Type | Screw terminals / flat blade connectors (depending on version) |
| Operating Temperature | -20°C to +55°C (derating above rated temperature) |
| Dimensions (H × W × D) | 82 × 132 × 190 mm (3.2 × 5.2 × 7.5 in) |
| Weight |
Approx. 1.4 kg (3.1 lb) |
Datasheets and Manuals
*with galvanic isolation*
