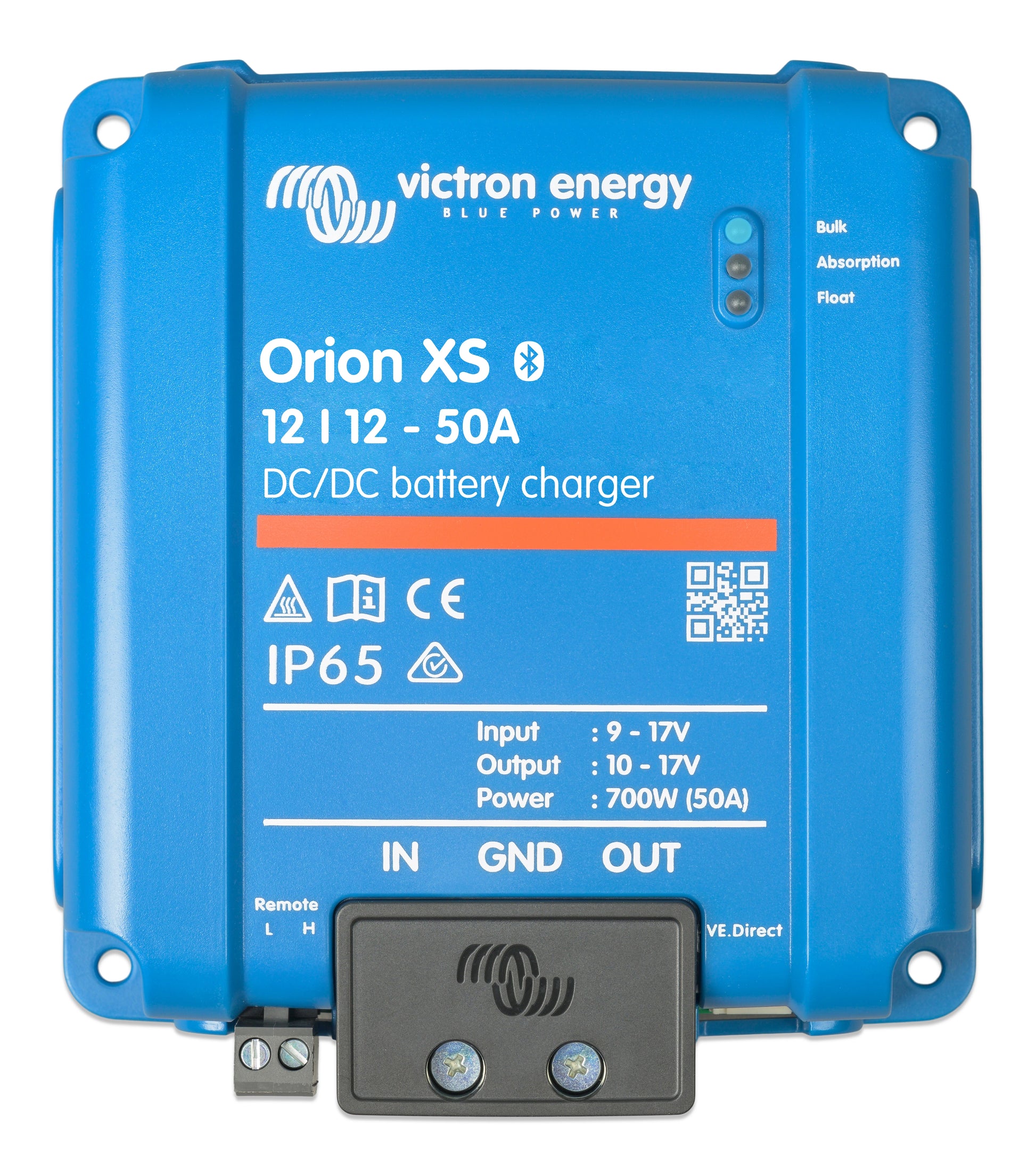

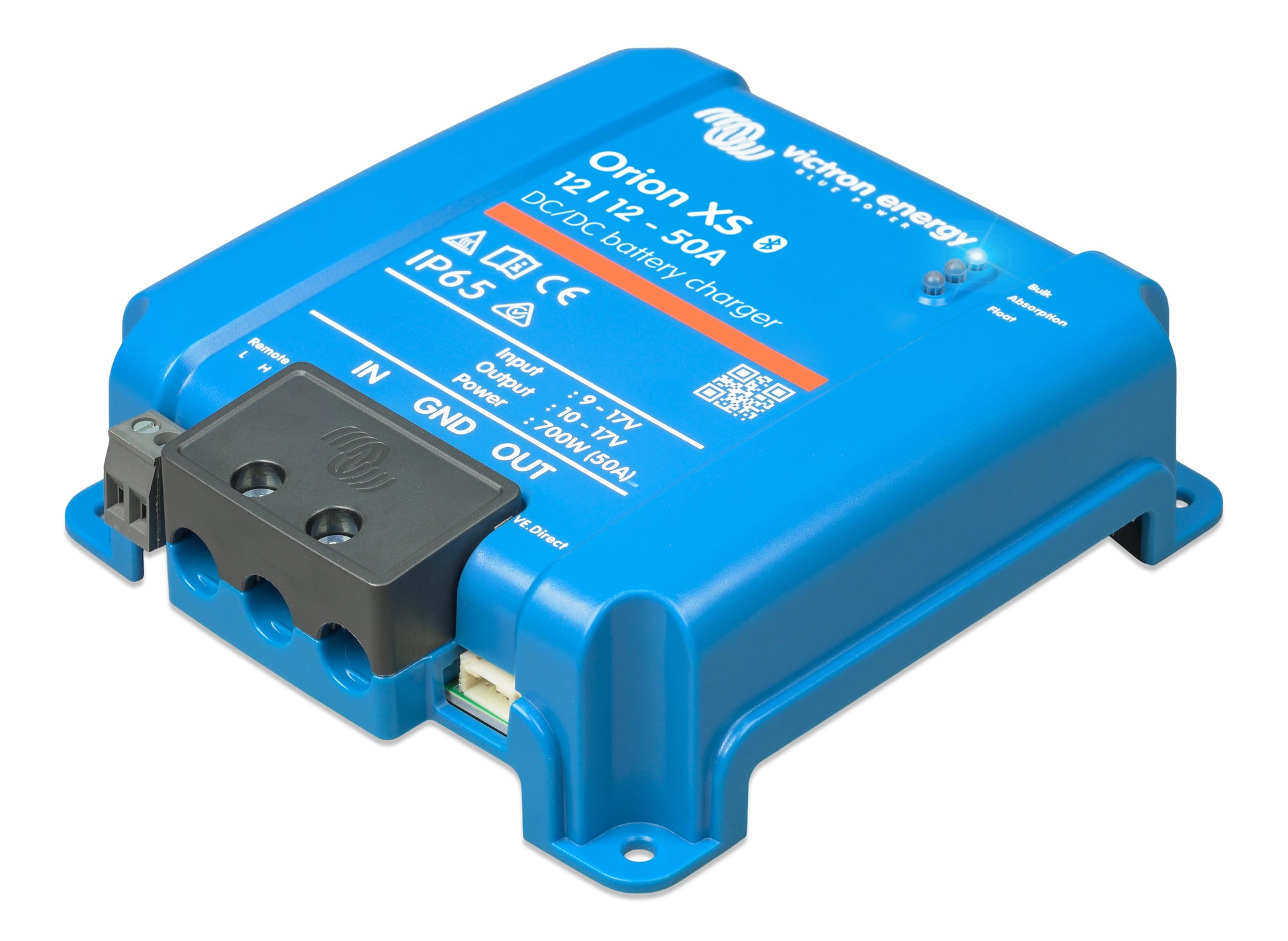

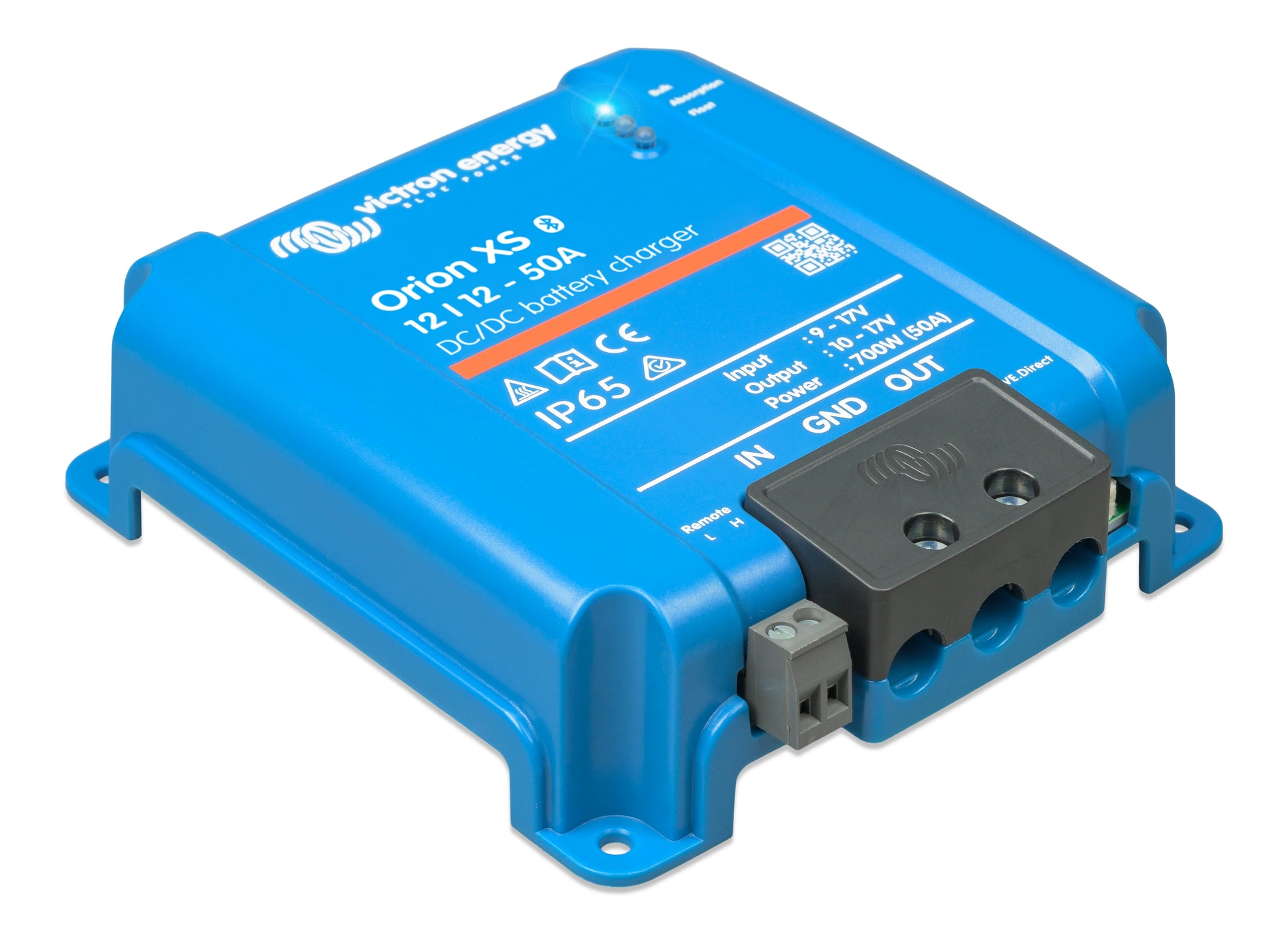

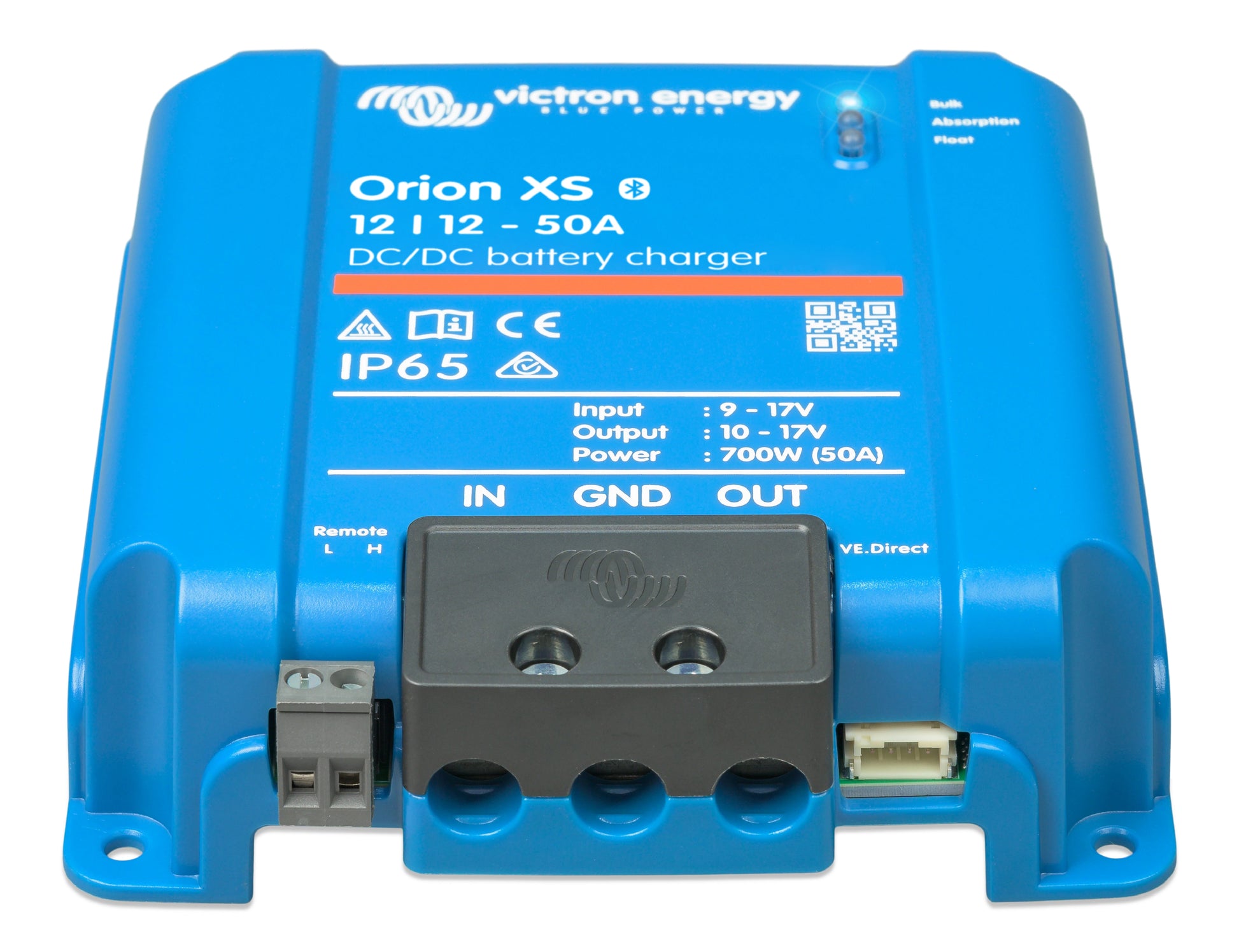

Victron Orion XS 12/12-50A DC-DC Battery Charger

The Victron Orion XS 12/12-50A is a next-generation adaptive DC-DC battery charger engineered from the ground up for dual battery systems charged by an intelligent or smart alternator. Rated at 50A maximum output current with 700W continuous power at 40°C, it provides fully controlled, adaptive battery-to-battery charging in 12V vehicle and marine systems — solving the common problem of smart alternators (Euro 5/Euro 6) that supply insufficient charging voltage to properly charge a service battery, or where extended cable lengths cause significant voltage drop.

Unlike conventional DC-DC converters, the Orion XS is a true battery charger — featuring a four-stage adaptive charging algorithm (Bulk, Absorption, Float, Storage) with fully programmable parameters and eight pre-programmed battery presets for all common lead-acid and LiFePO₄ battery chemistries. Absorption time is automatically adjusted based on discharge depth — kept short after shallow discharges to prevent overcharging, and extended after deep discharges to ensure complete recharge. The charge current is adjustable in 0.1A steps via VictronConnect, enabling the output to be precisely limited to protect the input (starter) battery and alternator from overload.

Integrated engine shutdown detection automatically activates the charger only when the alternator is supplying power — preventing the service battery from discharging the starter battery when the engine is stopped. A configurable input undervoltage lockout shuts down the charger when the input voltage drops below a set threshold, protecting the starter battery from deep discharge during low alternator output periods. Low temperature shutdown prevents lithium battery damage during cold-weather charging.

Built-in Bluetooth Smart enables full monitoring and configuration via the VictronConnect app — with Instant Readout displaying key data in the device list without requiring a connection. VE.Smart Networking shares voltage, temperature, and current data wirelessly from connected BMV battery monitors and SmartShunts for optimised charging. A VE.Direct port enables wired GX device integration with full DVCC support, and the IP65-rated enclosure ensures reliable operation in engine bays, bilges, and outdoor environments.

Features

Smart Alternator Compatibility — Engine Shutdown Detection

Integrated engine shutdown detection automatically activates the Orion XS only when the alternator is supplying power — preventing the service battery from back-feeding and discharging the starter battery when the engine is stopped, without requiring an ignition wire or external relay.

Adaptive Four-Stage Charging Algorithm — Eight Pre-Programmed Profiles

A fully adaptive four-stage algorithm (Bulk, Absorption, Float, Storage) automatically adjusts absorption time based on battery discharge depth — preventing overcharging after shallow discharges and ensuring complete recharge after deep discharges. Eight pre-programmed battery presets plus full custom programming via VictronConnect cover all common lead-acid and LiFePO₄ chemistries.

Adjustable Output Current — 1A to 50A in 0.1A Steps

The output current is fully adjustable from 1A to 50A in 0.1A increments via VictronConnect — enabling the charge current to be precisely limited to protect the starter battery and alternator from overload, and to suit different auxiliary battery capacities and alternator ratings.

Input Undervoltage Lockout — Starter Battery Protection

A configurable undervoltage lockout shuts the charger down when the input voltage drops below a user-set threshold and restarts it when voltage recovers above the restart value — protecting the starter battery from deep discharge during periods of low alternator output or high vehicle electrical demand.

Low Temperature Shutdown — Lithium Battery Protection

The charger automatically shuts down at low temperatures to prevent damage to lithium battery cells during cold-weather charging — with a configurable temperature threshold and automatic restart when temperature recovers above the safe charging limit.

Bluetooth Smart with Instant Readout — VictronConnect App

Built-in Bluetooth Smart pairs with the VictronConnect app for real-time monitoring, full settings configuration, historical data, and wireless firmware updates. Instant Readout displays key data — including warnings and alarms — directly in the VictronConnect device list without requiring an active Bluetooth connection.

VE.Smart Networking — Optimised Charging via Wireless Sensing

Via VE.Smart Networking, the Orion XS receives real-time voltage (Vsense), temperature (Tsense), and current (Isense) data wirelessly from connected BMV battery monitors, SmartShunts, or Smart Battery Sense — using this data to optimise charge voltage and current for maximum efficiency and battery life.

VE.Direct and DVCC — Full GX Device Integration

The VE.Direct port enables wired connection to a Victron GX device for full system monitoring via VRM, with DVCC support (firmware v1.03 or later) allowing the GX device and Lynx Smart BMS NG to automatically set charge voltages and currents based on live battery cell data — replacing the internal charge algorithms with closed-loop BMS control.

IP65 — Dust-Tight and Rain-Proof

Rated IP65 for complete dust protection and resistance to heavy rain — making the Orion XS suitable for permanent installation in engine bays, battery compartments, marine bilges, and outdoor enclosures without risk of ingress damage.

98.5% Efficiency — No Cooling Fan Required

Aluminium circuit board technology achieves 98.5% maximum conversion efficiency — generating minimal heat during normal operation and eliminating the need for a cooling fan, ensuring silent and maintenance-free operation at full rated output.

Specifications

Datasheets and Manuals

Datasheet

Product Manual
