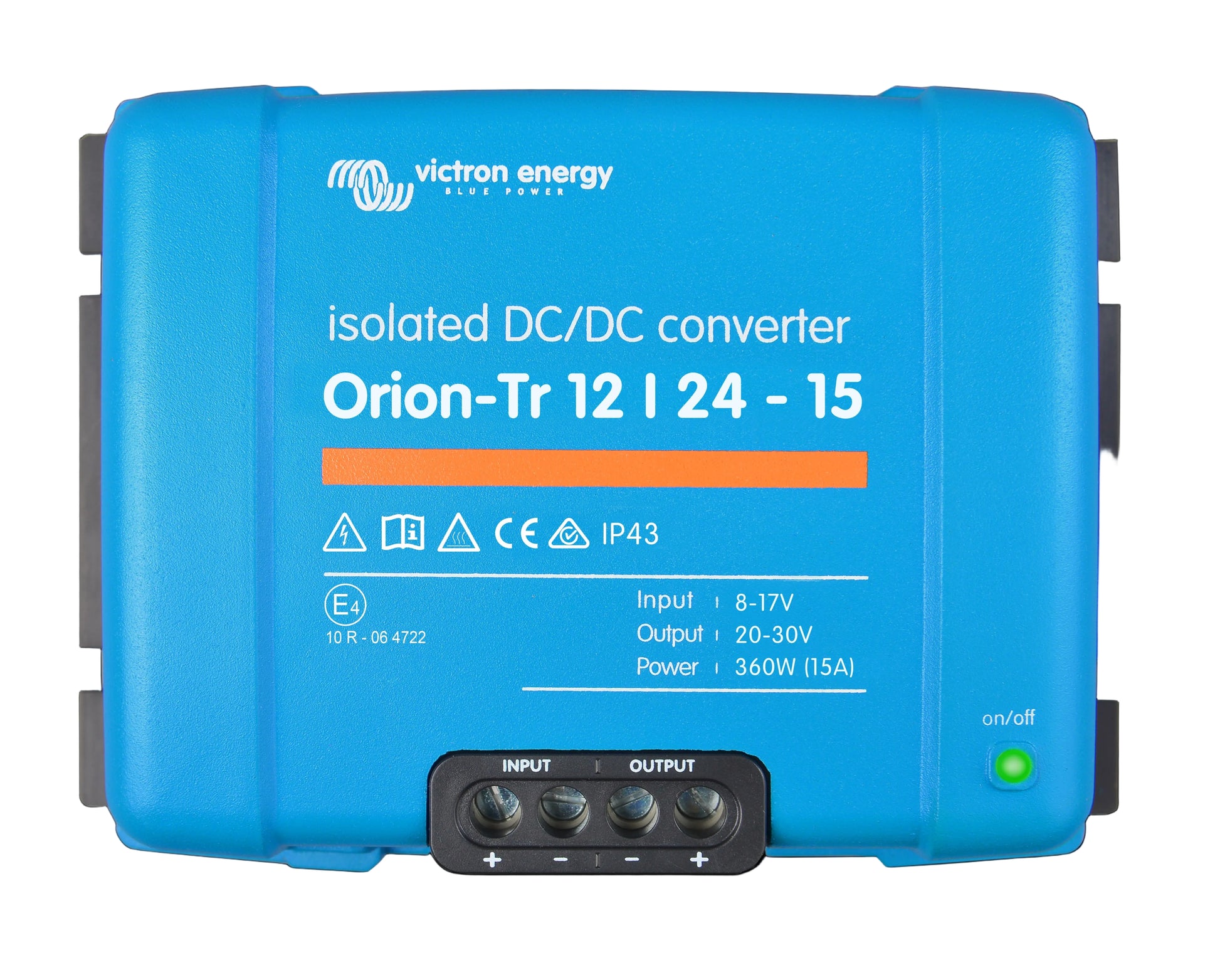

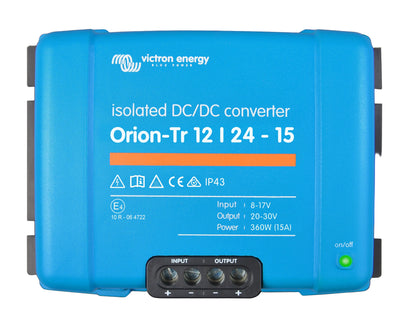

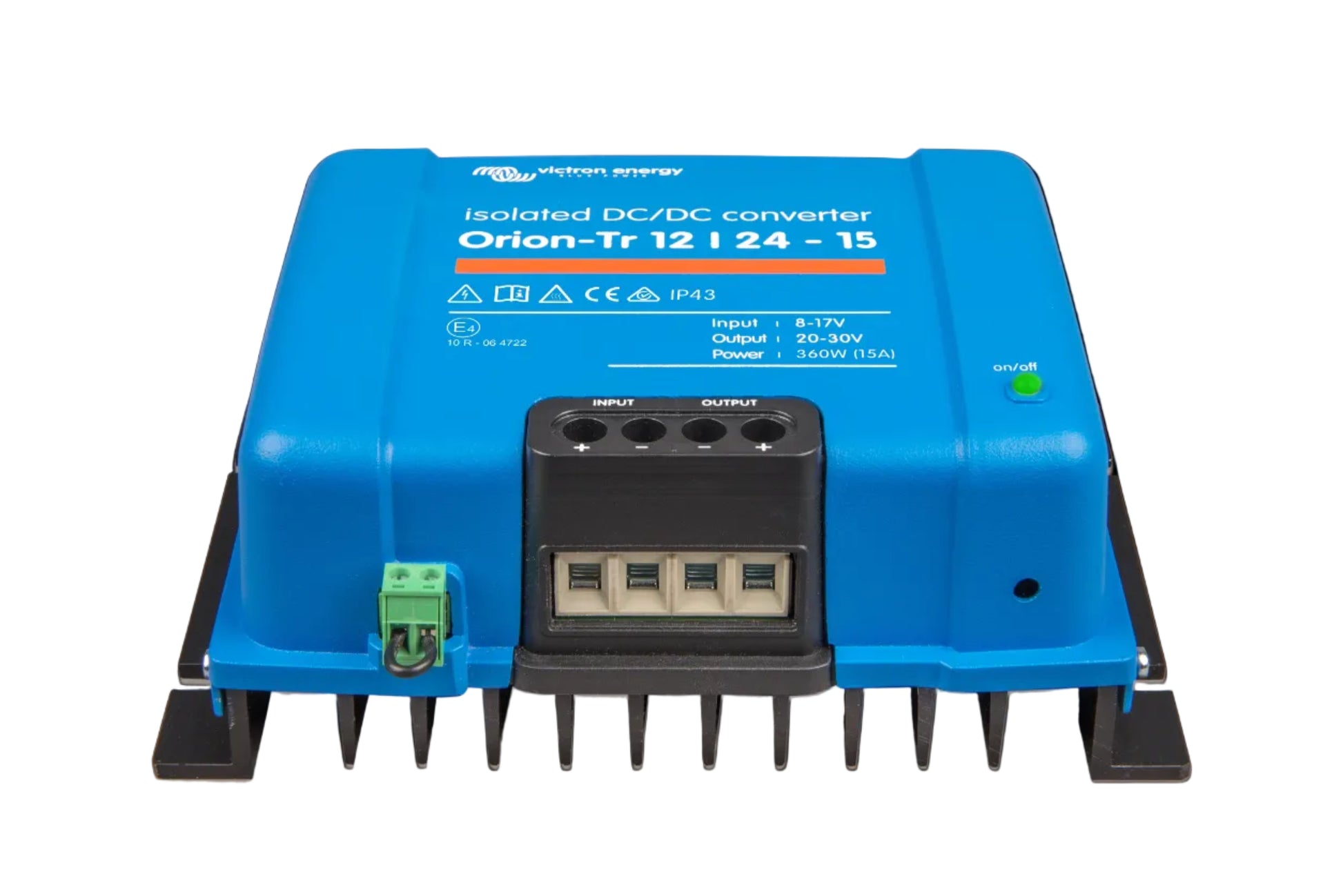

Victron Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter

The DC-DC converter is engineered for reliable power conversion in demanding automotive, marine, RV, and industrial applications. Its advanced remote on/off functionality eliminates the need for a high-current switch in the input wiring, simplifying installation and reducing wiring complexity. The converter can be controlled using a low-power switch or integrated directly with an engine run/stop switch, allowing seamless automation and convenient operation.

Designed with flexibility in mind, all models are fully short-circuit protected, ensuring safe and dependable performance even under fault conditions. For systems requiring higher output capacity, multiple units can be connected in parallel to increase available output current. There is no practical limit to the number of converters that can be paralleled, making the system highly scalable for growing power demands.

The converter features an IP43-rated enclosure when installed with the screw terminals facing downward, providing protection against solid objects and water spray. This makes it well-suited for environments where durability and reliability are essential.

Installation is quick and straightforward thanks to robust screw terminals that require no specialized tools. This user-friendly design reduces installation time and simplifies maintenance. Additionally, 12V and 24V input models include an integrated input fuse, providing an extra layer of protection for both the converter and connected equipment.

Combining advanced protection features, flexible control options, scalable power capability, and easy installation, this DC-DC converter is an ideal solution for professional and recreational electrical systems that demand efficient and reliable power conversion.

Features

Efficient 12V to 24V DC Power Conversion

The Victron Orion-Tr 12/24-15A (360W) efficiently converts a 12V DC input into a stable 24V DC output with up to 88% efficiency. Its regulated output voltage ensures reliable operation of 24V equipment, even when the input voltage fluctuates due to battery discharge or alternator variations.

High 360W Continuous Power Output

Designed for demanding DC applications, the converter delivers up to 15A of continuous output current at 24V, providing a maximum continuous output of 360 watts. This makes it ideal for powering 24V electronics, communication systems, lighting, and industrial equipment from a 12V battery source.

Wide Input Voltage Range

The converter operates over an input voltage range of 8 to 17V, allowing dependable performance with vehicle, marine, and off-grid battery systems. The wide operating range helps maintain a stable output even during engine cranking or varying battery conditions.

Adjustable Regulated Output Voltage

The output voltage can be adjusted between 18V and 30V to match the requirements of connected equipment or compensate for cable voltage drop. Precise voltage regulation helps ensure sensitive devices receive consistent power under changing load conditions.

Remote On/Off Control

A built-in remote on/off connection allows the converter to be controlled by a low-current switch, ignition signal, or external relay. This simplifies system integration while eliminating the need for a high-current switch on the input wiring.

Parallel Operation for Increased Capacity

Multiple Orion-Tr converters can be connected in parallel to increase total output current and power. This modular capability allows the system to expand as future power requirements grow without replacing existing equipment.

Comprehensive Protection Features

The converter includes protection against short circuits, over-temperature conditions, and low input voltage to safeguard both the converter and connected equipment. Automatic protection functions improve system reliability and help prevent damage during abnormal operating conditions.

Marine and Vehicle Ready Construction

Built for harsh operating environments, the Orion-Tr features IP43 protection when mounted correctly, durable screw terminal connections, and reliable operation in ambient temperatures from -20°C to +55°C. Its rugged design makes it well suited for marine, RV, commercial vehicle, and industrial installations.

Specifications

Datasheets and Manuals

Datasheet

Product Manual

Product Dimensions
