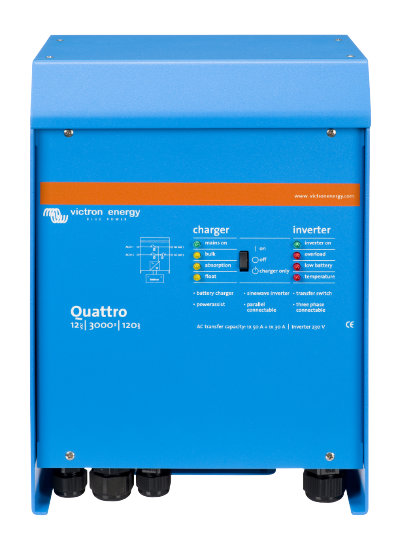

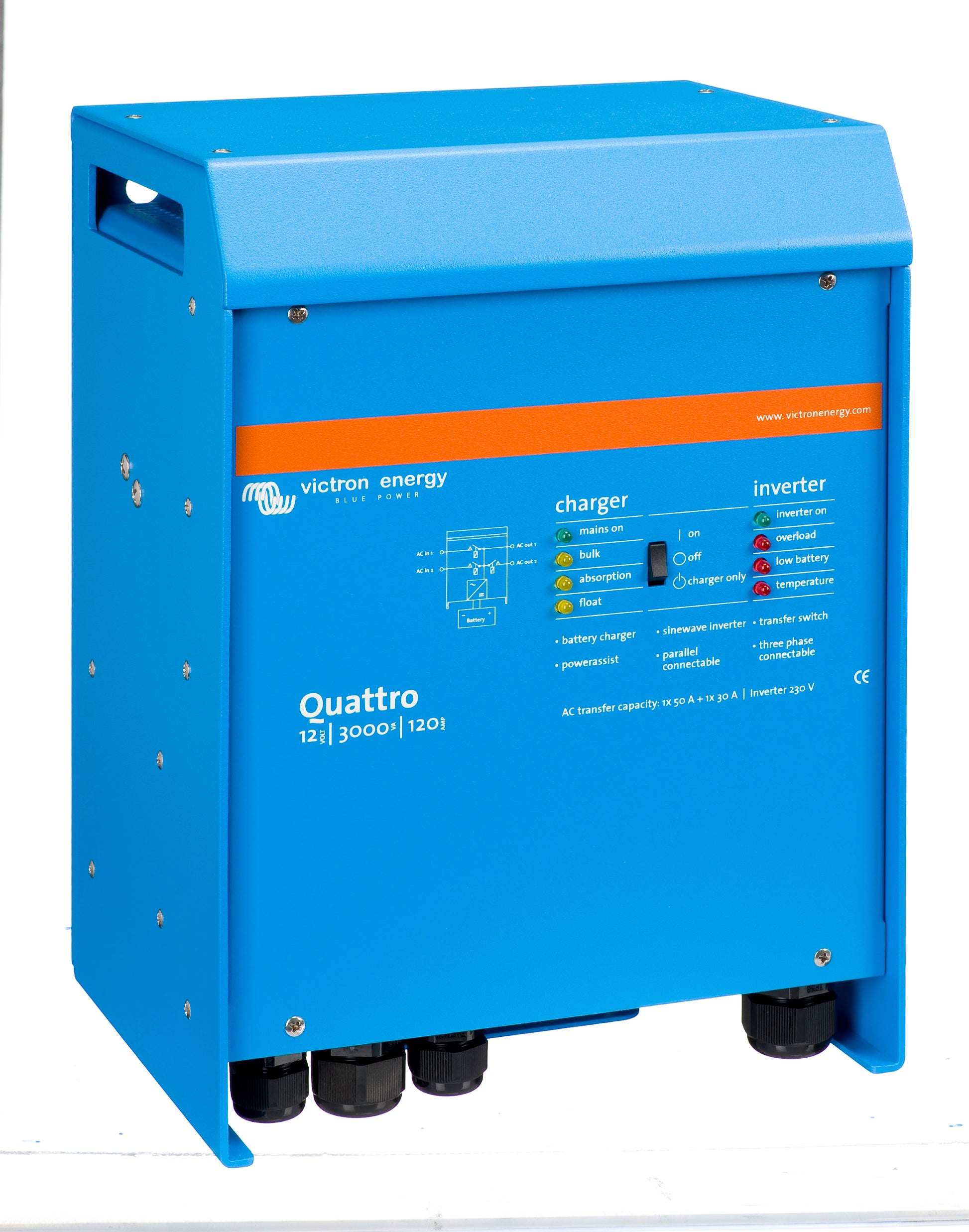

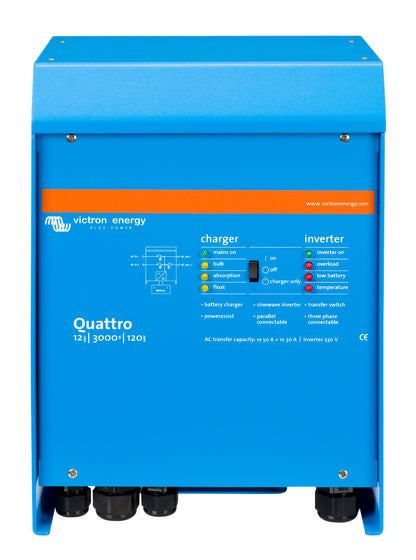

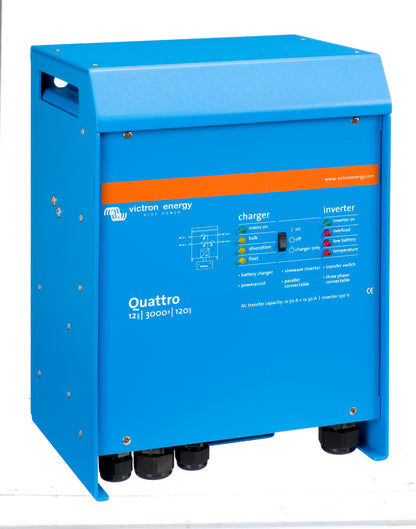

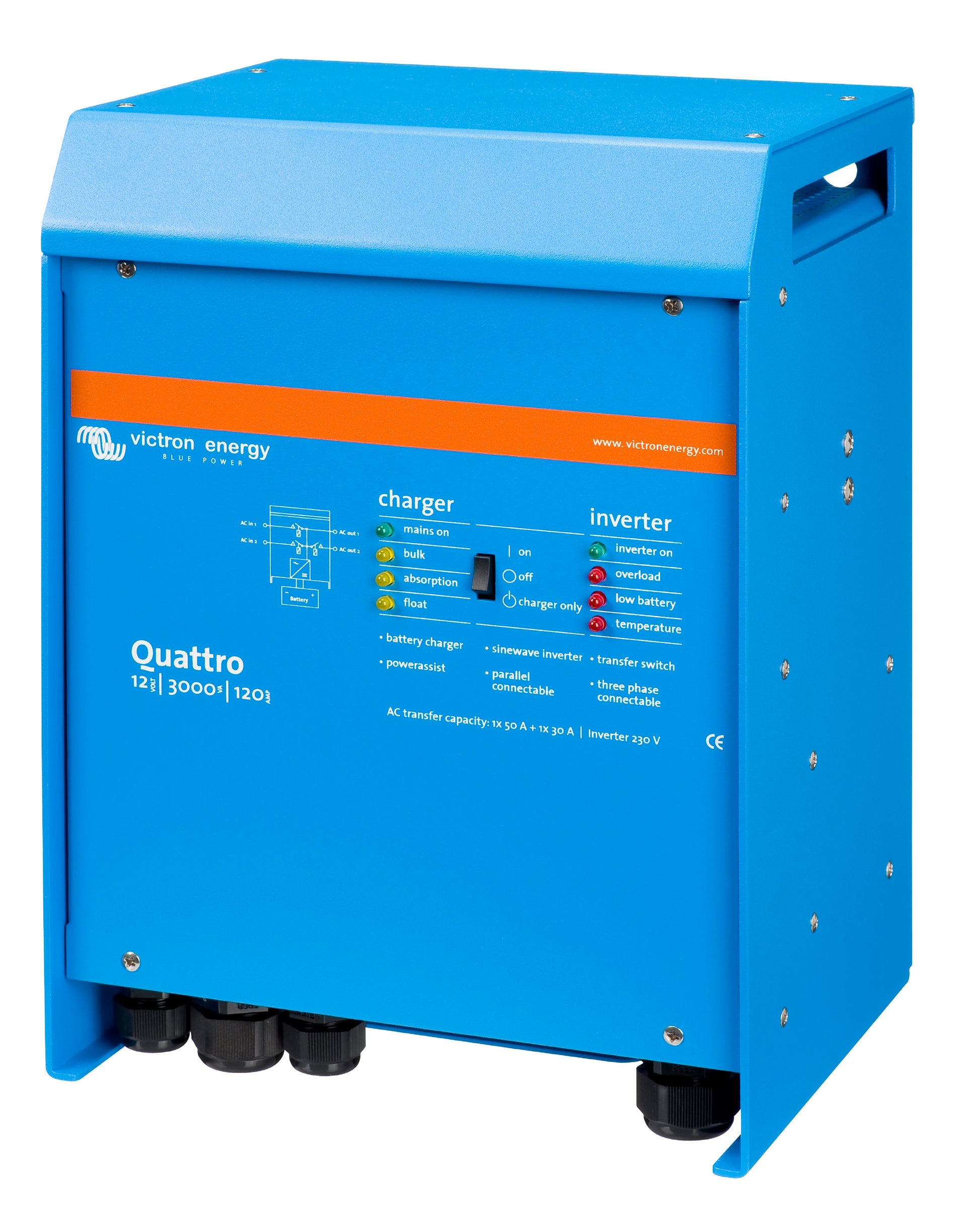

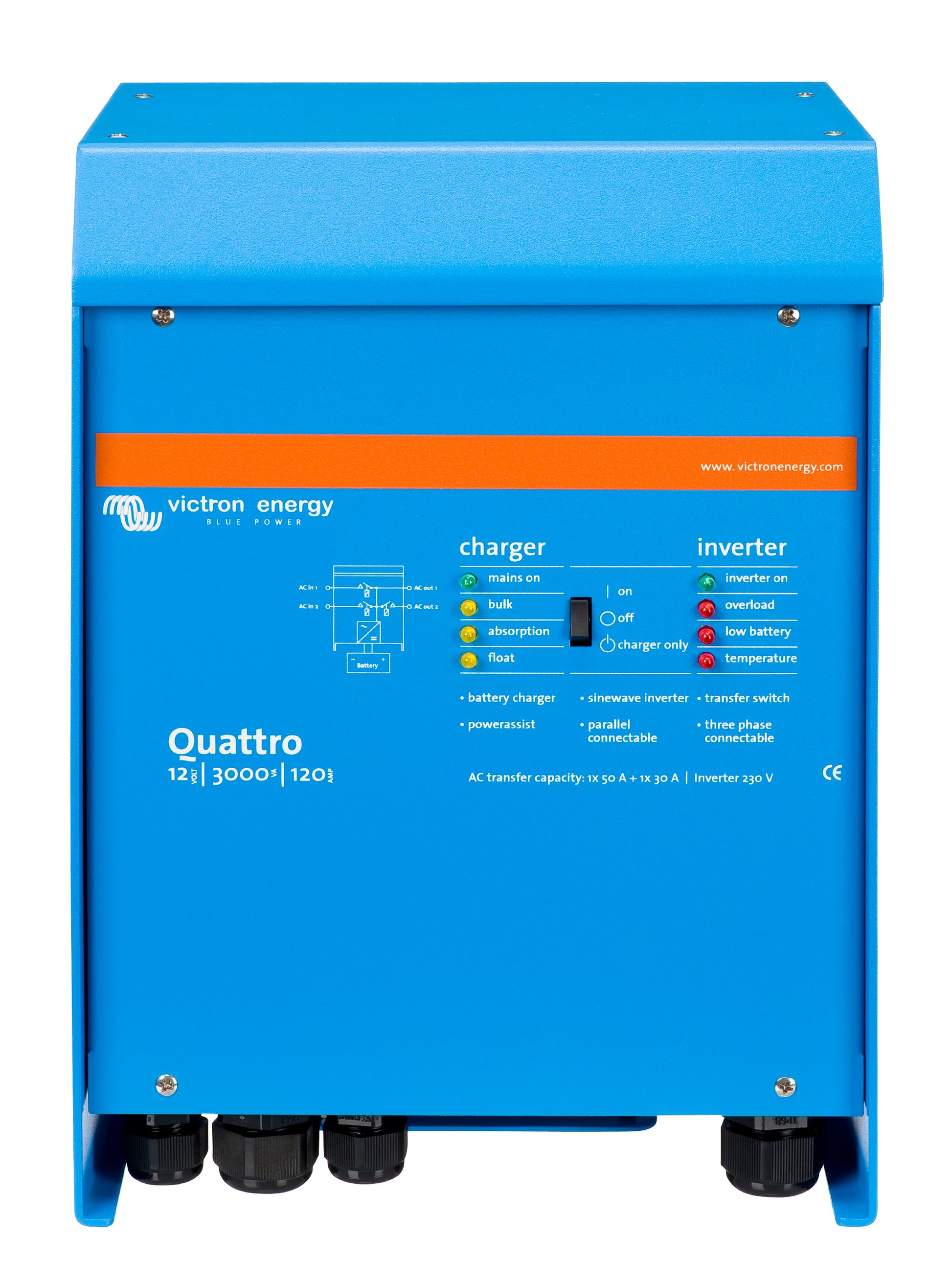

Victron Quattro 12/3000/120-50/50 230V VE.Bus Inverter/Charger

The Victron Quattro 12/3000/120-50/50 230V is a multifunctional inverter/charger that combines a powerful true sine wave inverter, an adaptive four-stage battery charger, and two independent AC inputs with automatic transfer switching into a single compact aluminium enclosure. Designed for European and international 230V installations, it delivers 3000 VA of continuous inverter output from a 12V battery bank while simultaneously managing two independent AC sources — such as shore power and a generator — with full VE.Bus system integration for comprehensive monitoring, control, and remote management.

The defining characteristic of the Quattro is its two independent AC inputs with automatic transfer switching — the key distinction from the MultiPlus, which has only one AC input. One input connects to shore power and the other to a generator or secondary grid supply, with the Quattro automatically selecting the active source. Each AC input has its own independently configurable PowerControl current limit, and the Quattro will never connect the two inputs together — making it intrinsically safe for use with two independent AC sources simultaneously present.

The primary AC output (AC-out-1) provides no-break UPS functionality — transferring to inverter operation in less than 20 milliseconds in the event of a grid or generator failure, fast enough that computers and sensitive electronics continue operating without interruption. The secondary output (AC-out-2) is live only when AC is present on one of the inputs, making it ideal for loads that must not draw from the battery — such as water heaters, washing machines, and other high-consumption appliances.

Up to six Quattro units can be connected in parallel for higher power output, and three units configured for three-phase operation. A split-phase 240V / 60Hz output can be achieved using the Victron autotransformer in combination with a single Quattro. Three programmable relays support general alarm, DC undervoltage, and generator start/stop functions. VE.Bus integration enables full monitoring, configuration, and firmware updates via Victron GX devices, the VRM Online Portal, and the VictronConnect app.

Features

Two Independent AC Inputs with Automatic Transfer Switching

Accepts two independent AC sources — such as shore power and a generator — and automatically connects to whichever is live. Each input has its own independently configurable PowerControl current limit, and the two inputs are never bridged together, ensuring complete electrical isolation between the two AC sources at all times.

True Sine Wave Inverter — 3000 VA / 2400W Continuous

Delivers a clean 230 VAC ± 2% true sine wave output at 50 Hz (configurable to 60 Hz) with 3000 VA / 2400W of continuous power at 25°C and 6000W peak capacity — handling motor startup surges and high-demand loads without distortion.

PowerAssist — Boosting Shore or Generator Power

When connected AC power is insufficient for the connected loads, PowerAssist automatically supplements the supply with power drawn from the battery. Once demand drops, surplus AC input is used to recharge the battery — maximising every available watt from shore power or generator connections of any size.

PowerControl — Preventing AC Source Overload

An independently configurable current limit on each AC input monitors all connected loads and automatically reduces battery charging to prevent overloading the shore supply or generator — enabling smaller, more fuel-efficient generators to power larger systems without risk of overload shutdown.

No-Break UPS Transfer — Under 20 Milliseconds

In the event of shore power or generator failure the Quattro switches to inverter operation in less than 20 milliseconds — fast enough that computers, communication equipment, and sensitive electronics continue operating without interruption or power cycling.

Two AC Outputs — Primary UPS and Auxiliary Non-Critical

The primary output (AC-out-1) provides uninterrupted UPS power. The secondary output (AC-out-2) is live only when AC is present at one of the inputs — preventing non-critical loads such as water heaters and washing machines from discharging the battery when running on inverter power.

Four-Stage Adaptive Battery Charger with Starter Battery Output

The 120A adaptive charger automatically adjusts absorption time based on battery discharge depth and condition — keeping absorption short after shallow discharges and extending it after deep discharges. An independent 4A trickle charge output simultaneously maintains a separate starter or generator battery.

Parallel and Three-Phase Scalability

Up to six Quattro units can be connected in parallel for higher power output, and three units configured for three-phase operation — enabling systems up to 18kVA / 14.4kW from this model. Four sets of three units can be combined for up to 144kW in larger three-phase configurations.
