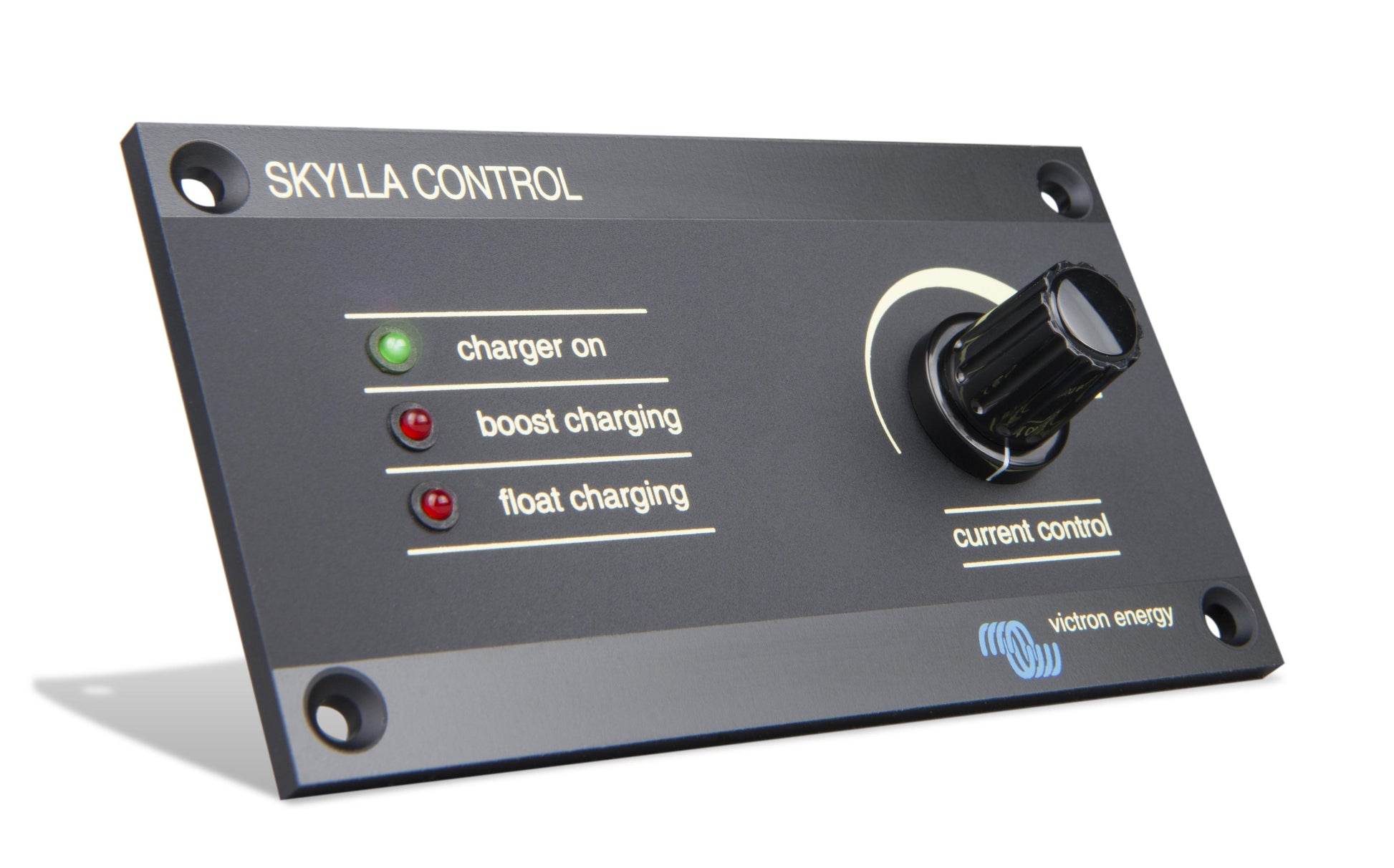

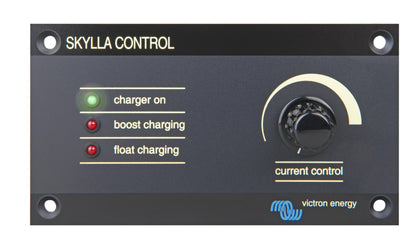

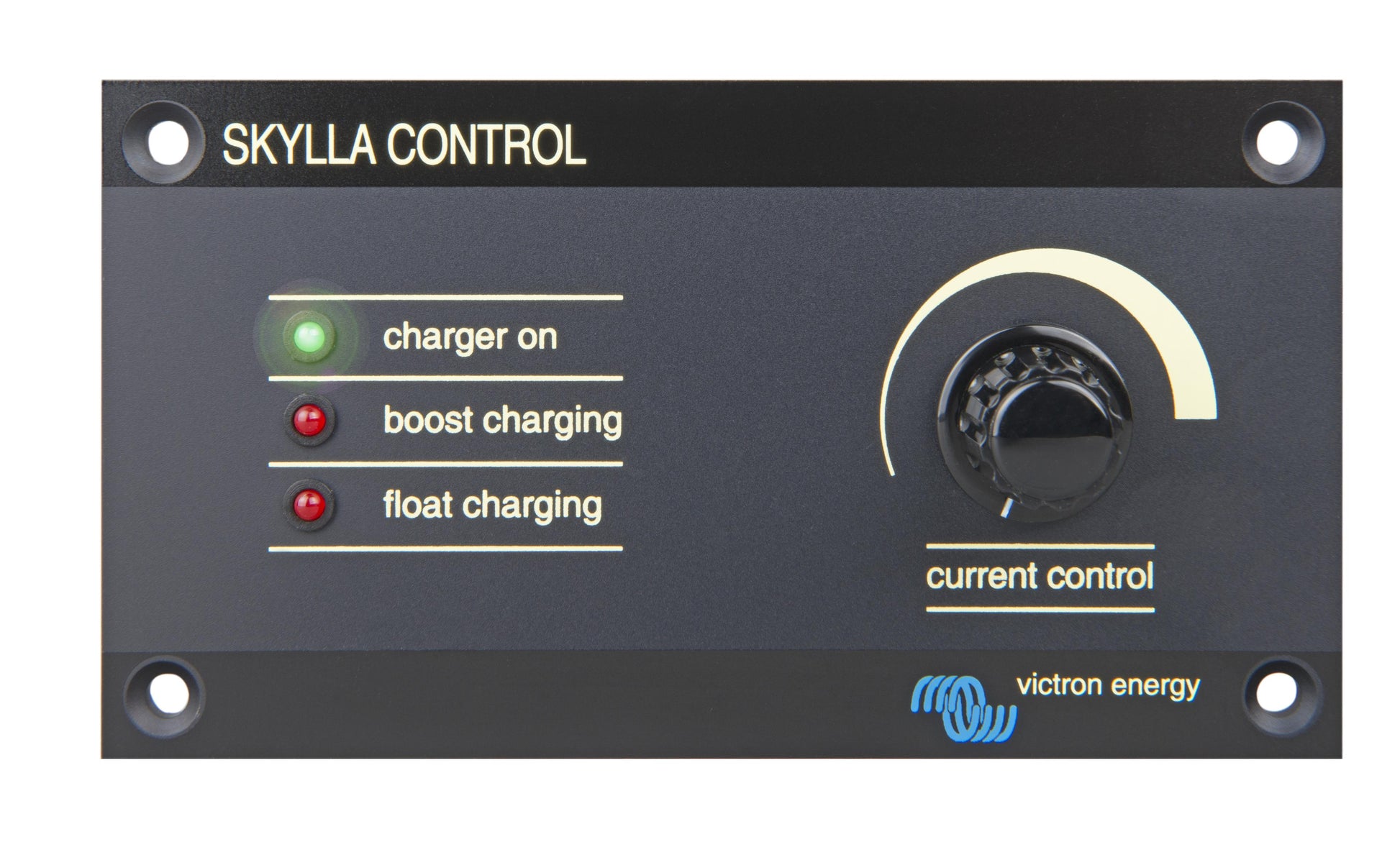

Victron Skylla Control Remote Panel

The Victron Skylla Control is the full-featured remote panel for the Victron Skylla-TG battery charger series, combining charger status, charge-mode indication, and current adjustment in a single flush-mounted panel. Rather than a simple on/off switch, it lets you monitor and fine-tune the charger from a helm, dashboard, or distribution panel without needing access to the charger itself, which is often installed in an engine room or other hard-to-reach compartment.

A green on/off LED confirms the charger is powered and running, while separate boost and float LEDs indicate which stage of the charge cycle is currently active. An onboard potentiometer lets the maximum charging current be limited below the charger's rated output - useful for matching the charge rate to a battery's specifications, or for keeping the load within the capacity of a shore-power fuse or breaker.

The panel connects to the charger's remote-panel header using the on/off, boost, float, and ground connections described in the Skylla-TG charger manual, and is compatible with the full Skylla-TG 24V and 48V charger range. Its compact metal front panel is designed for flush mounting through a 120 x 65 mm cutout, keeping the control point neat and professional-looking alongside other Victron instruments on a helm or dashboard.

Because it is a simple flush-mount panel wired directly to the charger's remote-panel header, installation does not require any programming or additional configuration - once connected, the on/off, boost, and float LEDs mirror the charger's own status immediately.

Features

On/Off Status Indication

A dedicated green LED confirms at a glance whether the connected Skylla-TG charger is powered on and running.

Charge Mode LEDs

Separate boost and float LEDs show which stage of the charge cycle the charger is currently in, without needing to access the charger itself.

Adjustable Maximum Charge Current

An onboard potentiometer limits the charger's maximum output current, useful for matching battery specifications or protecting a shore-power fuse.

Compatible with the Full Skylla-TG Range

Connects directly to the remote-panel header on any Skylla-TG 24V or 48V charger model using the standard on/off, boost, float, and ground connections.

Flush Panel Mounting

The compact metal front panel is designed to flush-mount through a 120 x 65 mm cutout for a clean, professional installation on a helm or dashboard.

Specifications

Datasheets and Manuals
