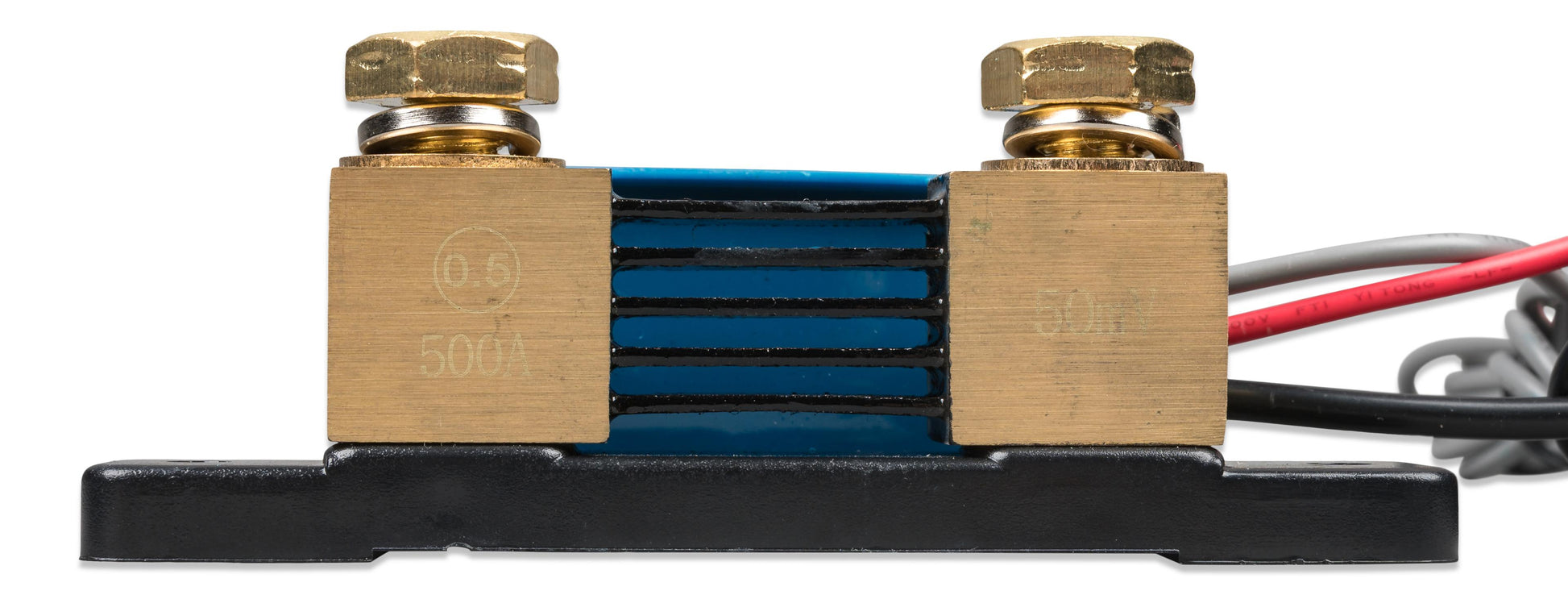

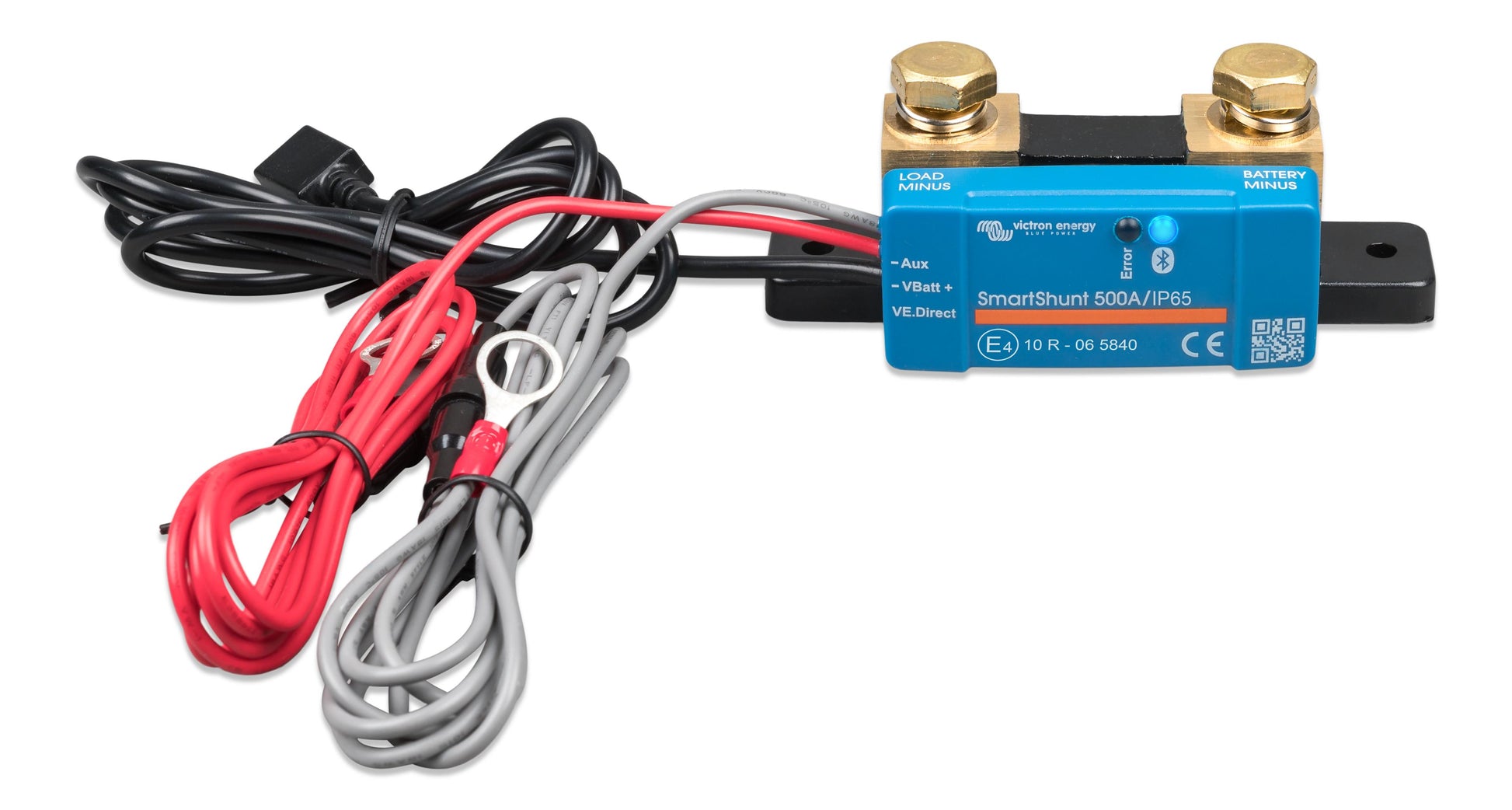

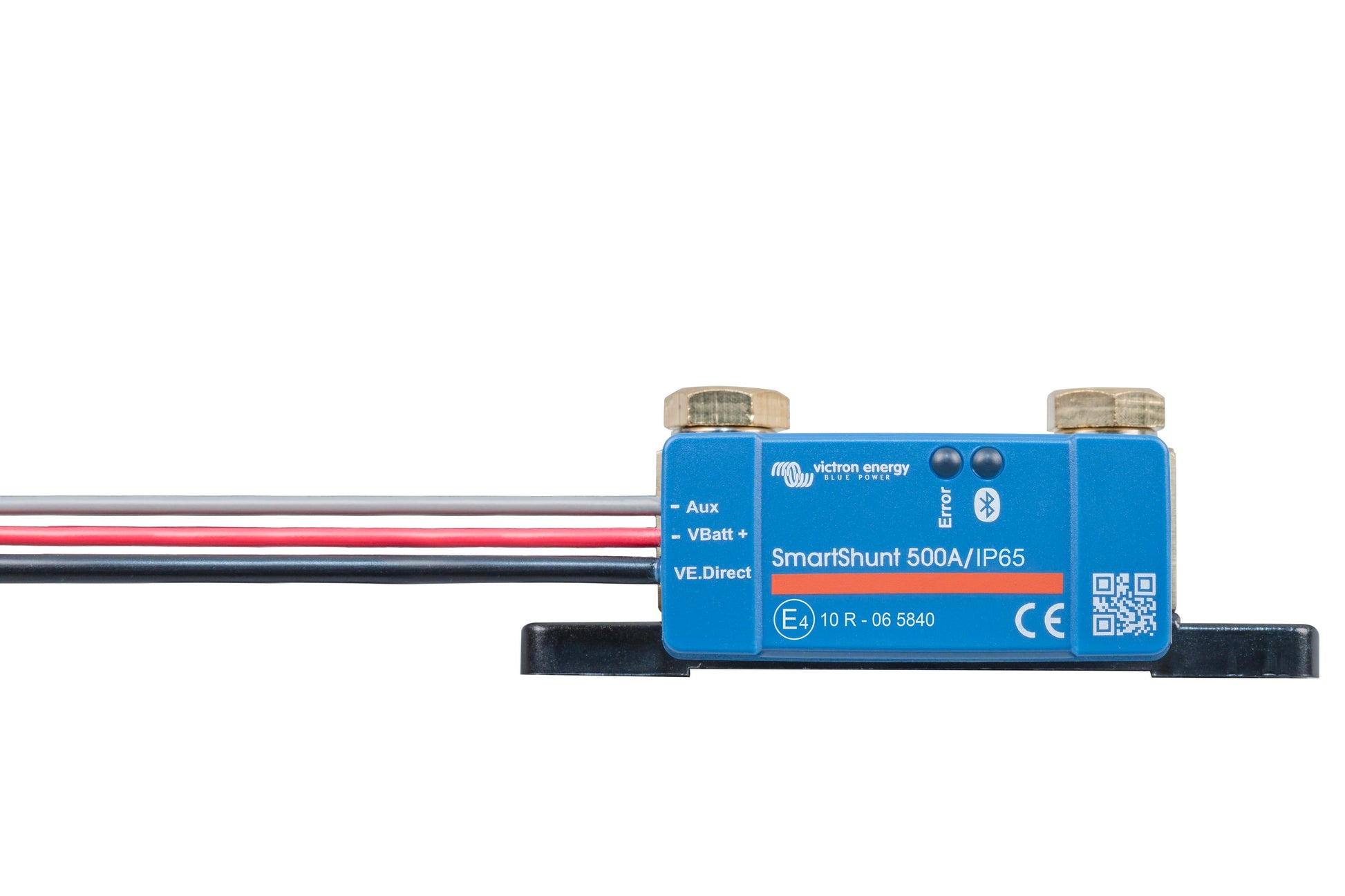

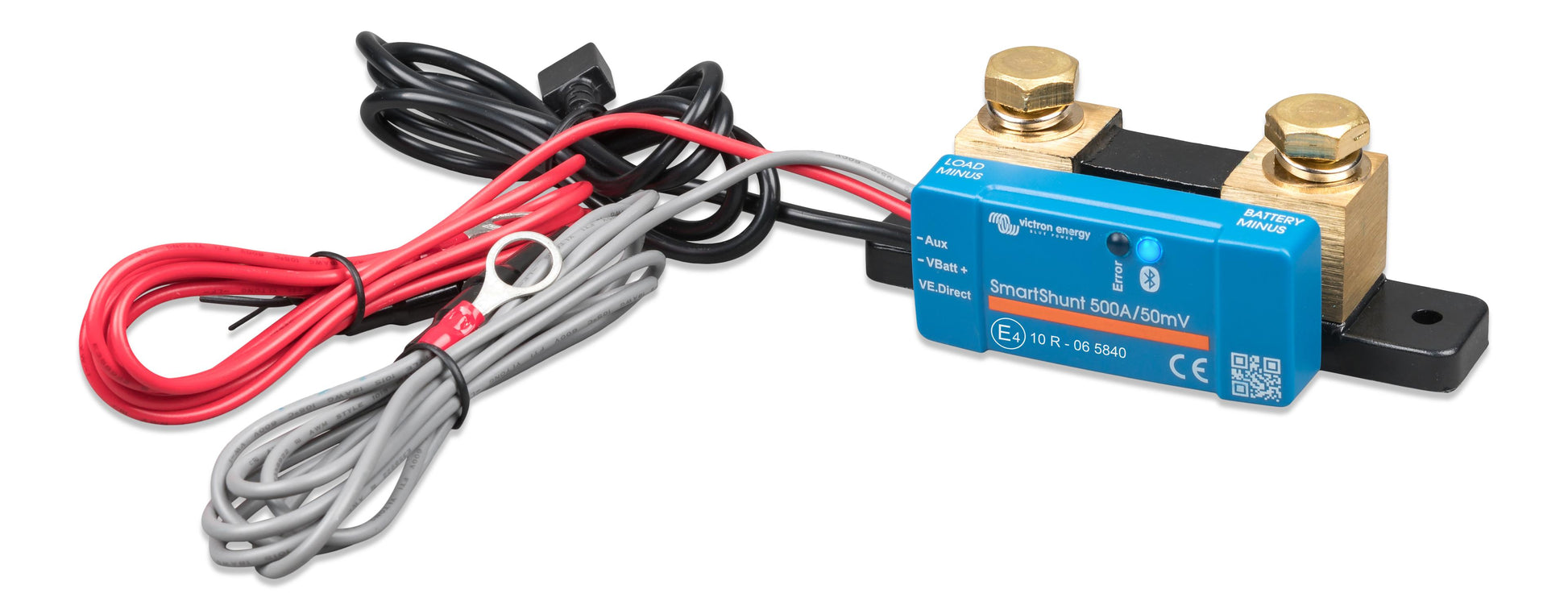

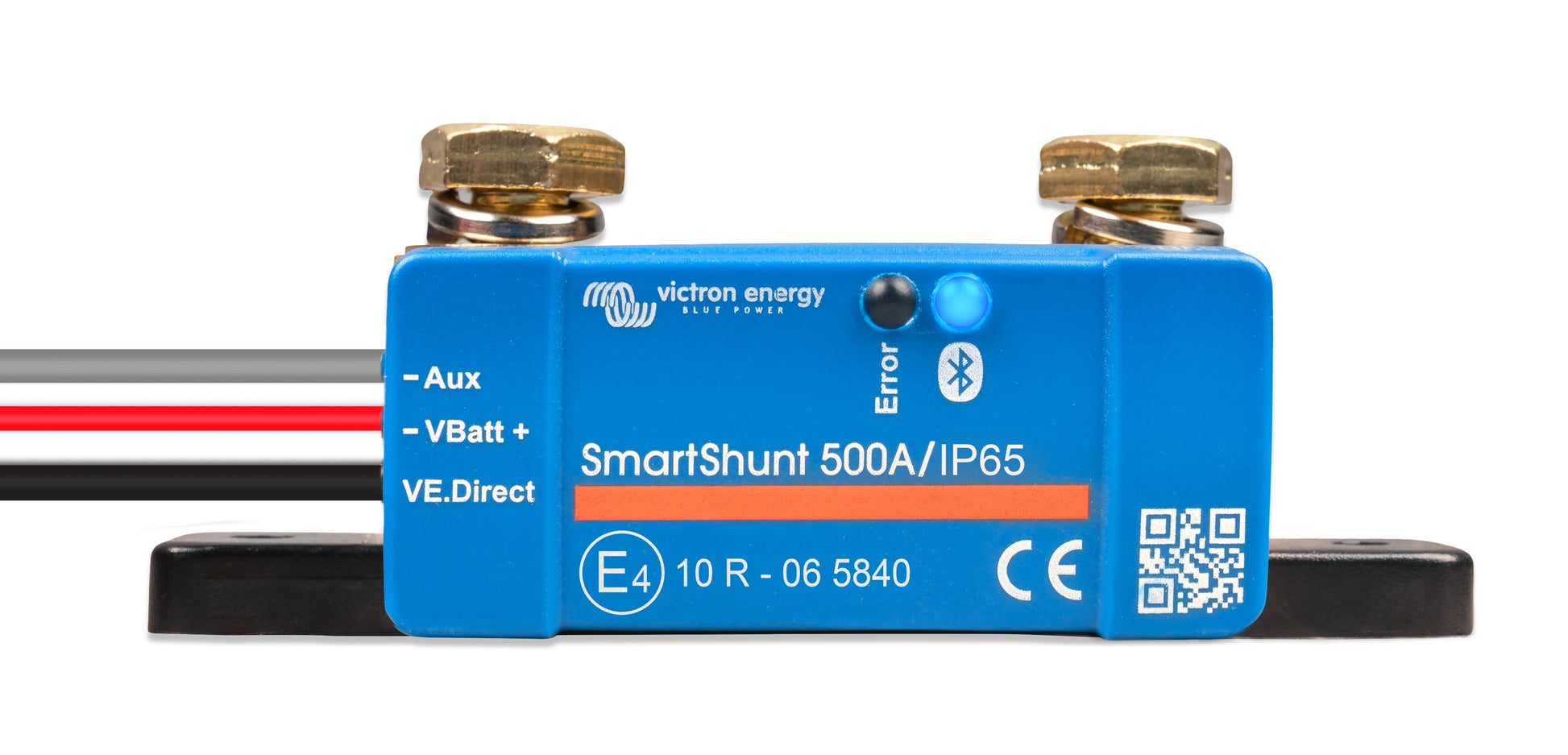

Victron SmartShunt IP65 Battery Monitor

The Victron Energy SmartShunt IP65 is an all-in-one battery monitor that delivers high-precision tracking without the clutter of a dedicated physical display. Instead, your smartphone or tablet acts as the screen. By connecting wirelessly via Bluetooth to the free VictronConnect App, you can instantly monitor crucial battery parameters, including State of Charge (SoC), time-to-go, voltage, real-time current draw, and extensive historical usage data.

With its IP65 water-resistant rating, this version of the SmartShunt is specifically engineered to withstand harsh, wet, or dusty environments—making it the ultimate choice for marine engine rooms, outdoor battery boxes, off-grid installations, and open-air automotive setups.

Because the shunt itself carries no display, all setup and day-to-day monitoring happen in the free VictronConnect app, which also stores a long-term history of deep discharges, charge cycles, and voltage alarms for tracking battery health over time. A built-in relay can be programmed to trigger an alarm, start a generator, or shed non-essential loads automatically based on State of Charge, voltage, or a user-defined alarm condition.

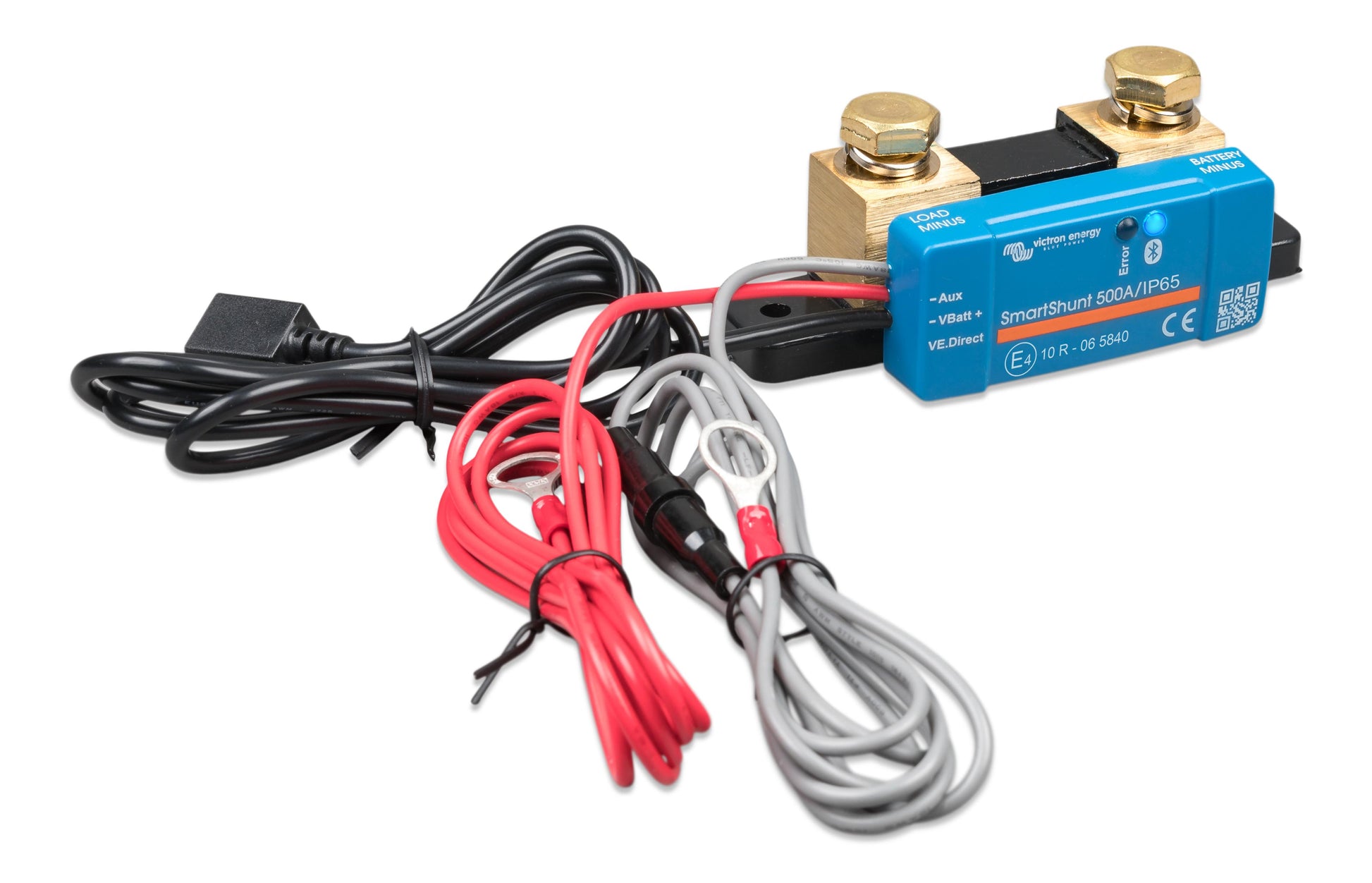

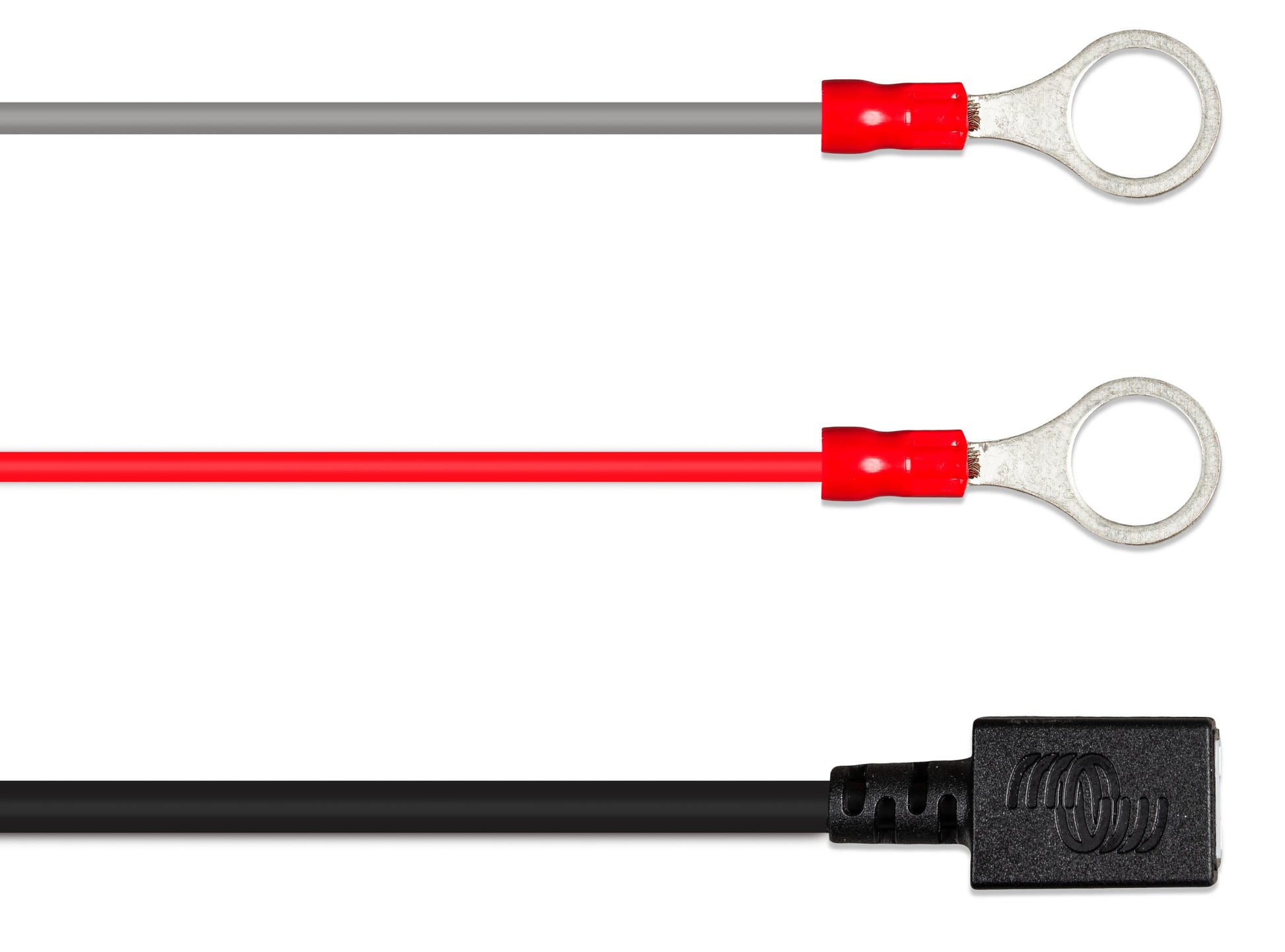

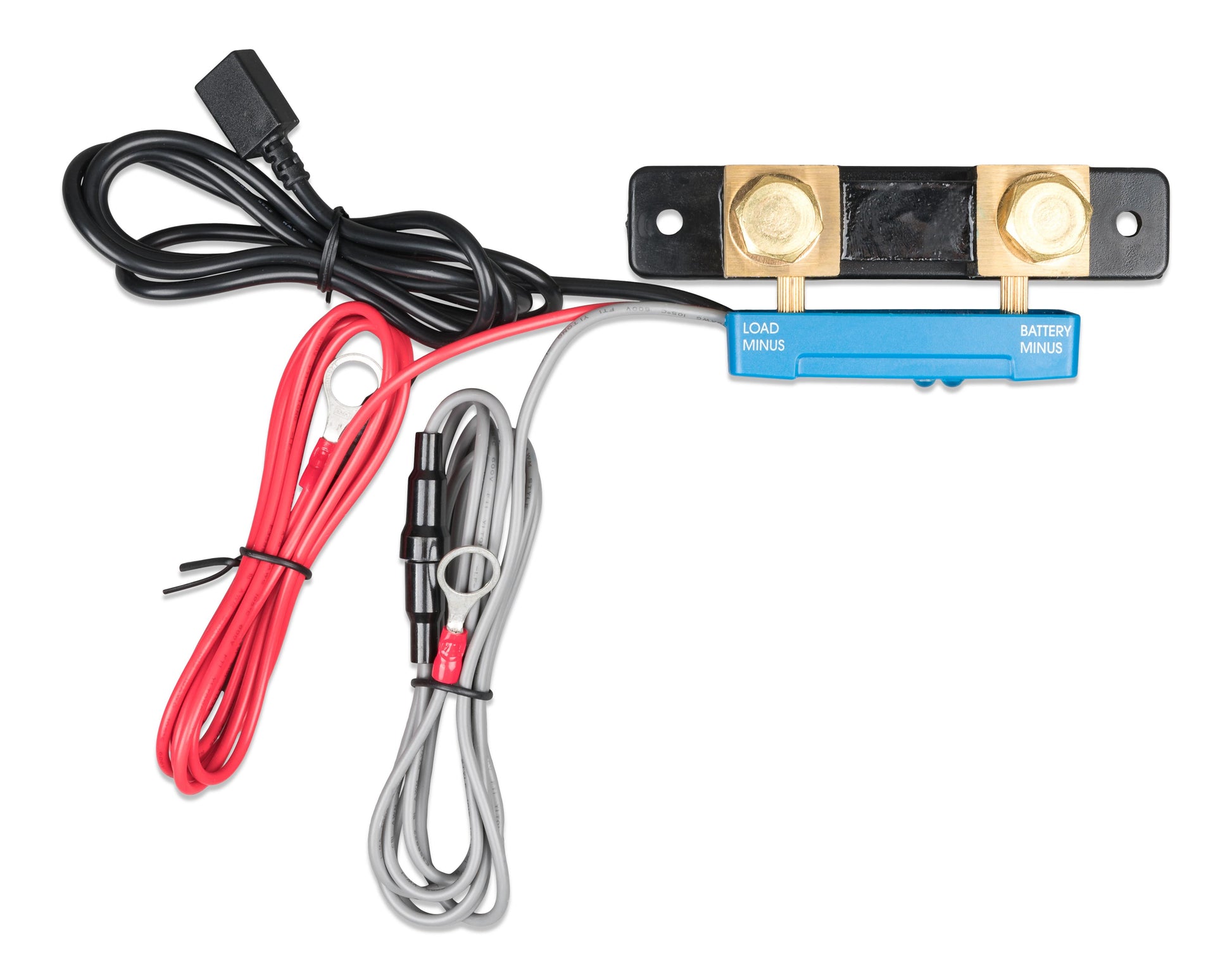

An auxiliary input adds further flexibility beyond basic monitoring: it can track the voltage of a second battery such as an engine starter bank, measure the temperature of the battery using an optional sensor, or monitor midpoint voltage to catch a weakening cell before it damages the rest of the bank. Two supply cables with inline fuses are included, and the compact IP65 housing mounts directly to the negative battery terminal alongside the shunt itself.

Features

All-in-One Monitor with No Cabin Clutter

Delivers high-precision battery tracking without the need for a physical, wall-mounted display. Your smartphone, tablet, or laptop acts as the screen, keeping your dashboard clean and wiring to an absolute minimum.

IP65 Water & Dust Resistance

Completely dust-proof and protected against water jets from any angle. This makes it the ultimate choice for marine engine rooms, exposed battery boxes, high-humidity compartments, and rugged outdoor applications.

Built-in Bluetooth Smart

Provides seamless, instant wireless connection to the free VictronConnect App. Easily monitor your State of Charge (SoC), time-to-go, real-time current, and adjust settings from up to 30 feet away.

Flexible Auxiliary Input

Equipped with a secondary input terminal that can be configured to monitor the voltage of a second battery, Midpoint Deviation of your main bank, or battery temperature (requires optional Victron temperature sensor).

GX Device & System Integration

Features an onboard VE.Direct port. Connect the shunt directly to a Cerbo GX, Ekrano GX, or other GX controllers via a VE.Direct cable for whole-system monitoring and remote cloud tracking via the Victron Remote Management (VRM) Portal.

Deep Historical Data Logging

Automatically stores extensive historical performance logs. Track charge cycles, deepest discharge levels, battery health trends, and voltage alarms over time to optimize your system's lifespan.

Specifications

Datasheets and Manuals
