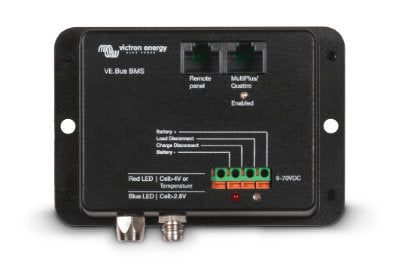

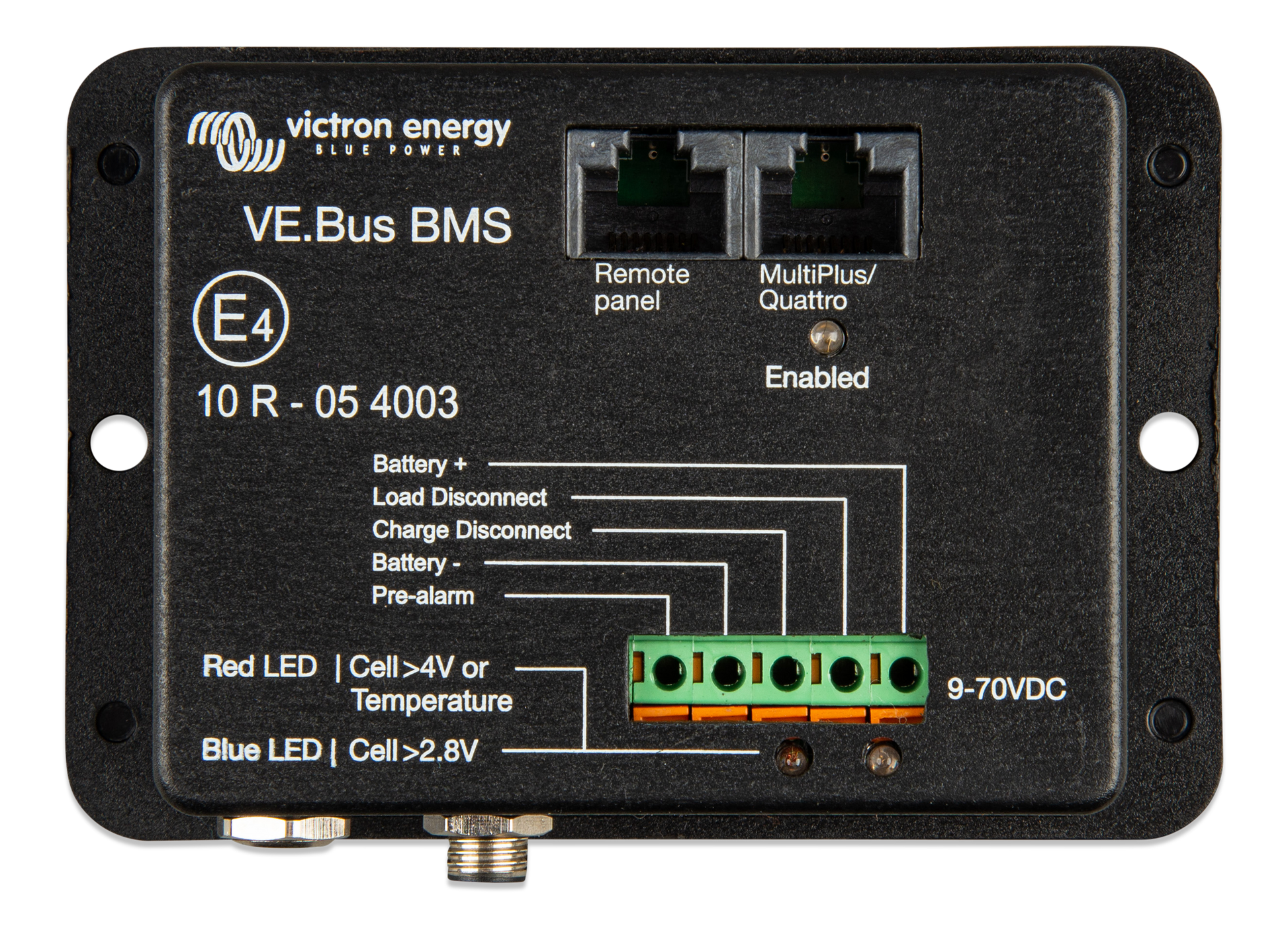

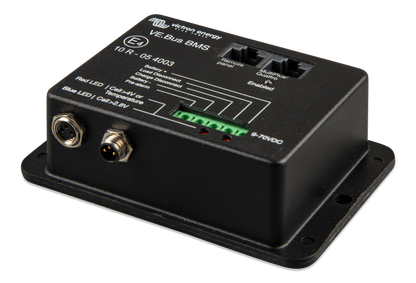

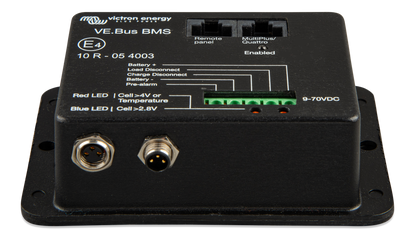

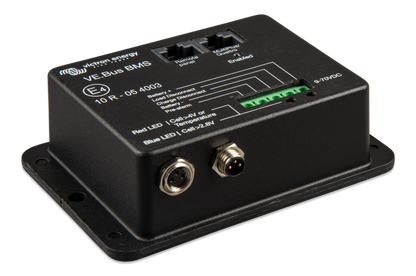

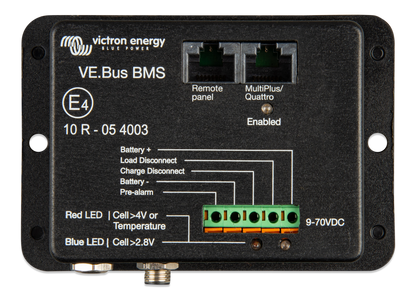

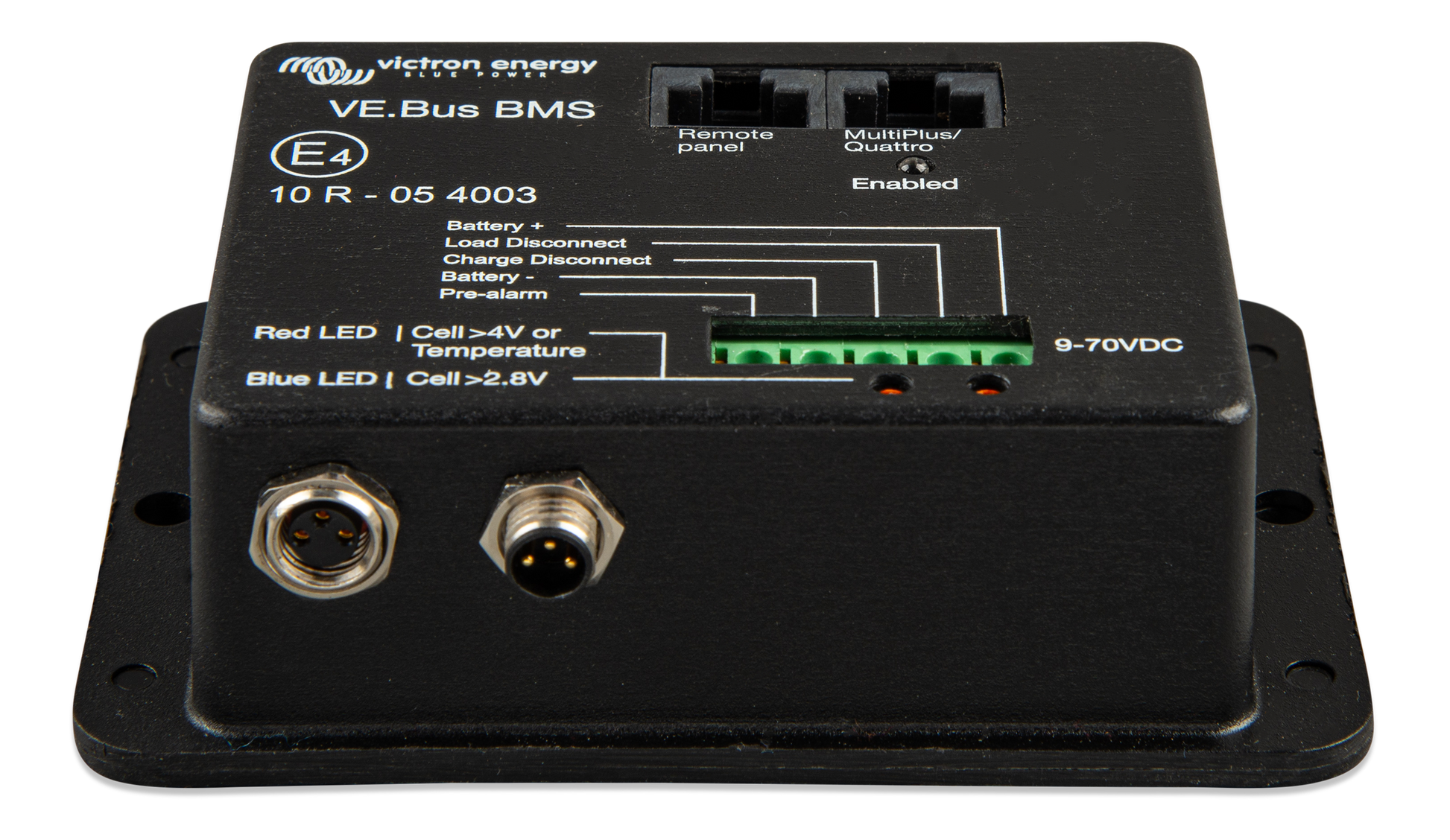

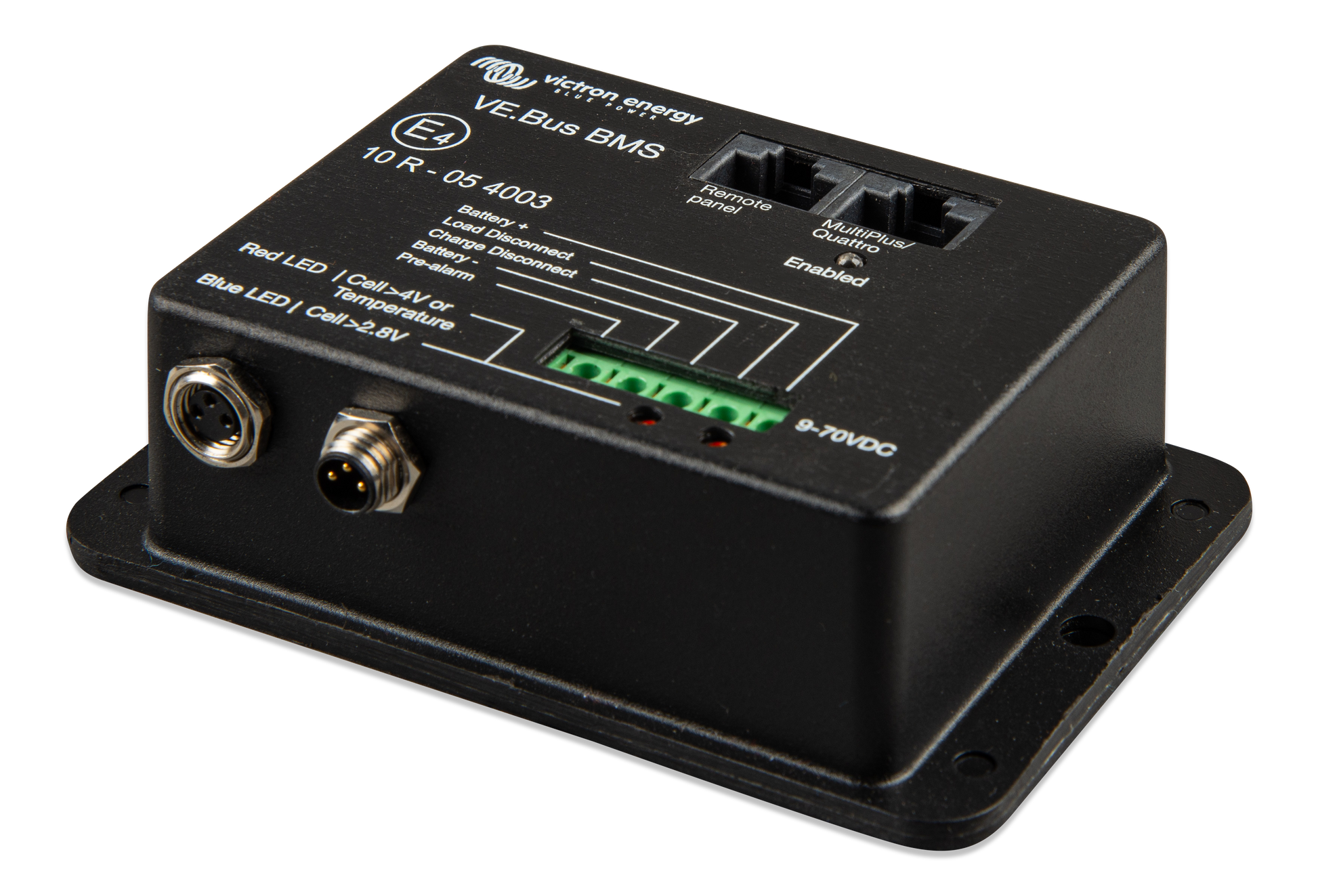

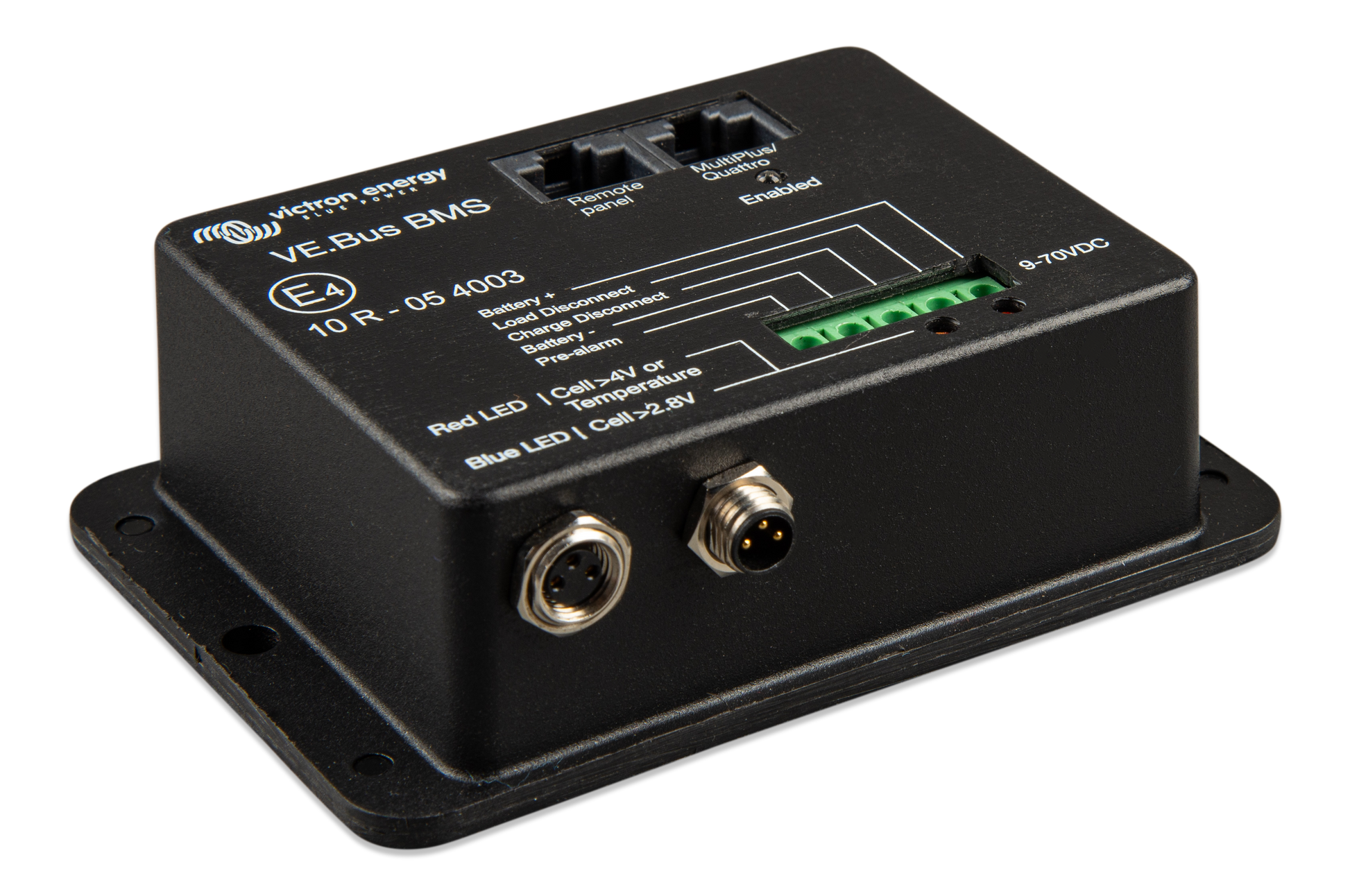

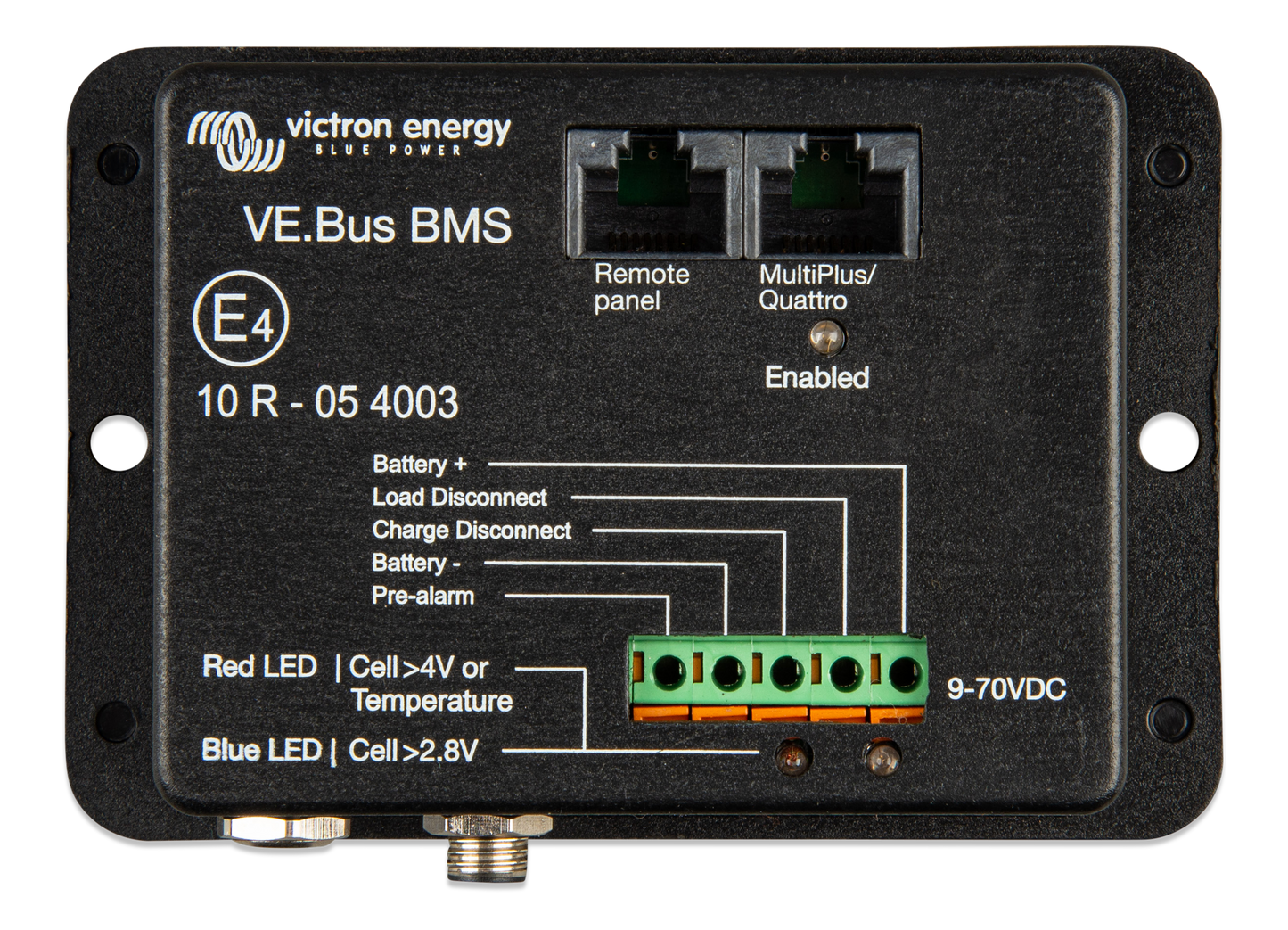

Victron VE.Bus BMS Battery Management System

The Victron Energy VE.Bus BMS is a highly sophisticated, dedicated Battery Management System designed specifically to protect each individual cell within a Victron Lithium Iron Phosphate (LiFePO4 or LFP) battery bank. Because lithium cells are highly sensitive to voltage and temperature fluctuations, this BMS acts as the central safety hub—intervening automatically to prevent permanent cell damage and maximize the life of your energy storage system.

The VE.Bus BMS communicates natively and directly with Victron VE.Bus inverter/chargers (such as MultiPlus, Quattro, and EasySolar units) to dynamically adjust charge parameters without requiring external relays. This advanced system eliminates the risk of manual oversight by operating entirely in the background, keeping your valuable lithium bank protected 24/7.

For ease of installation and scalability, the BMS connects effortlessly to the integrated Balancing, Temperature, and Voltage (BTV) control boards found inside Victron Smart Lithium batteries. It supports linking multiple batteries in series, parallel, or series-parallel configurations using simple, reliable male/female M8 circular connector cords.

The BMS itself is powered from the VE.Bus data connection, drawing negligible current, and communicates its status through onboard LED indicators that flag a low-cell-voltage or over-temperature condition before it becomes critical. A potential-free pre-alarm contact can also drive an external buzzer, light, or GX device input for remote notification well before any load or charge disconnect actually takes place.

Because it works entirely through the M8 circular connectors and the BTV boards already built into each Victron Smart Lithium battery, no external cell-monitoring wiring is required - the same cable set that links batteries together in series or parallel also carries the cell data the BMS needs to make its protection decisions.

Features

Under-Voltage Defense

To prevent catastrophic deep-discharge damage, the BMS automatically shuts down or disconnects non-essential DC loads in the event of an imminent cell under-voltage condition.

Over-Voltage & Over-Temperature Control

The system actively protects cells by automatically reducing the charge current or signaling the charger to shut off if any single cell approaches an over-voltage or over-temperature threshold.

Seamless VE.Bus Product Integration

Natively integrates with Victron MultiPlus, Quattro, and EasySolar inverter/chargers, allowing direct control over charging and discharging processes without complex programming.

Comprehensive Diagnostics

Features integrated visual LED status indicators that notify you instantly about system errors, low cell voltages, or temperature faults, simplifying troubleshooting.

Daisy-Chain Capabilities

Supports linking multiple batteries in series, parallel, or series-parallel banks using simple, reliable male/female M8 circular connector cords.

System-Wide Safety Safeguards

Provides round-the-clock, automated protection of your lithium bank, eliminating the risk of human error or oversight.
