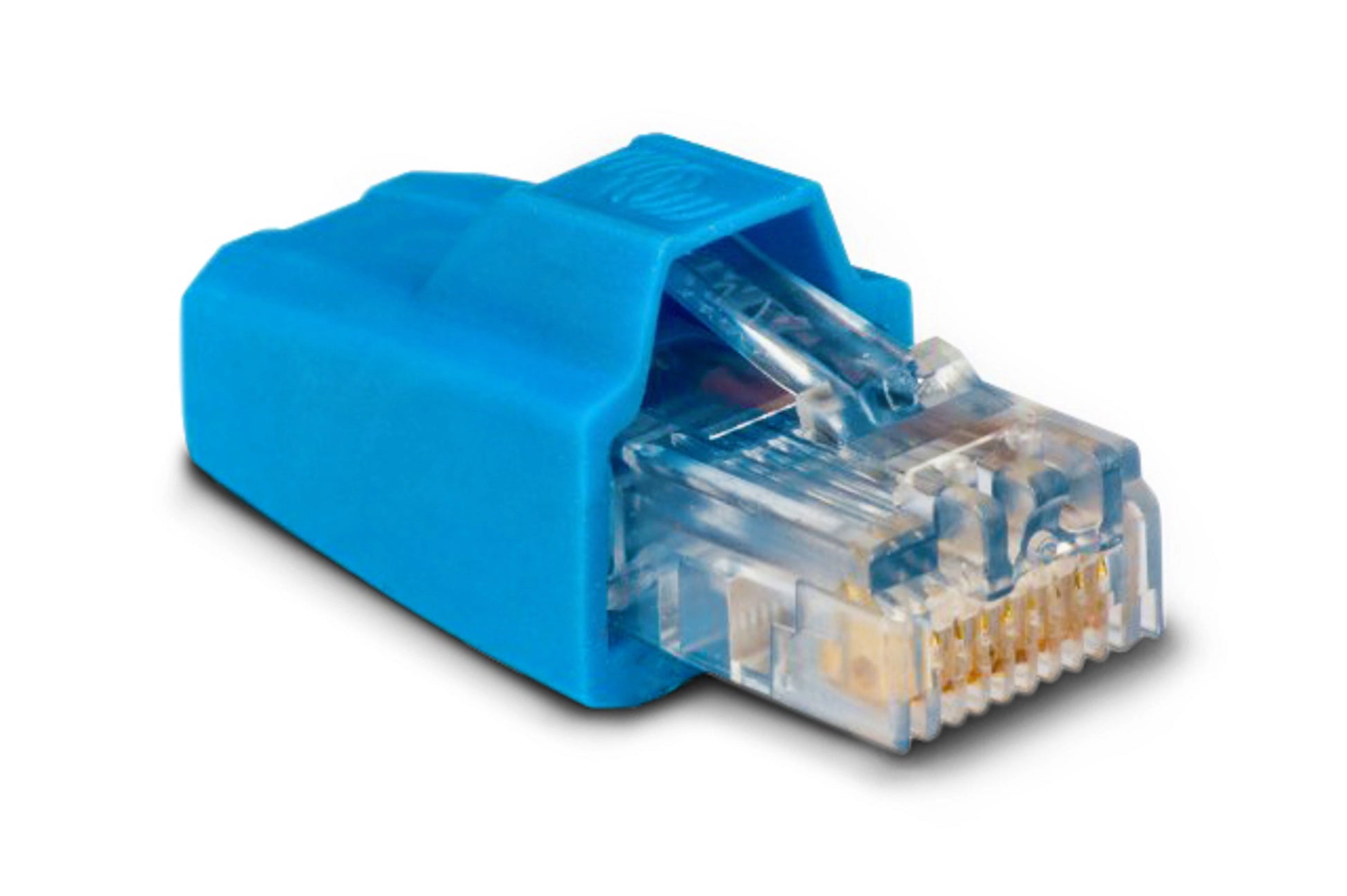

Victron VE.Can RJ45 terminator (bag of 2)

The Victron VE.Can RJ45 Terminator is a compact end-of-line termination plug required for correct operation of any Victron VE.Can communication network. Supplied in a pack of two — providing exactly the pair needed to terminate both ends of a single VE.Can bus — these terminators are a small but critical component in any properly configured CANbus system, preventing signal reflections that cause communication errors, data dropouts, and erratic system behaviour.

Every CAN bus network requires a 120-ohm termination resistor plugged into the last RJ45 VE.Can port at each end of the network. Without correct termination, signal energy reflects back along the cable and interferes with the data being transmitted between devices — potentially causing unreliable communication, false readings, and instability across the entire connected system. The VE.Can RJ45 Terminator provides the correct 120-ohm impedance to absorb signal energy at the cable end and maintain clean, stable communication throughout the network.

The terminators plug directly into any standard RJ45 VE.Can port — on GX devices, Lynx Smart BMS, MPPT charge controllers, and any other Victron VE.Can-equipped product — with no tools, wiring, or configuration required. One terminator is fitted to the first device at the start of the VE.Can network, and the second to the last device at the end of the network, regardless of how many devices are connected in between.

The VE.Can RJ45 Terminator is also included in the box with selected Victron products such as the CANUSB interface and the Lynx Shunt VE.Can. Sold separately in packs of two, they are an essential spare accessory for any Victron installation using VE.Can communication.

Features

Prevents Signal Reflections on VE.Can Networks

Plugging a terminator into the last RJ45 VE.Can port at each end of the network absorbs signal energy at the cable termination point — preventing reflections that would otherwise travel back along the cable and corrupt data transmissions between connected devices.

120-Ohm CAN Bus Impedance Matching

The terminator presents the correct 120-ohm impedance required by the CAN bus standard, ensuring proper signal integrity and reliable data communication across all VE.Can-equipped Victron devices connected to the network.

Compatible with All Victron VE.Can Devices

Fits any standard RJ45 VE.Can port on Victron products including Cerbo GX, Ekrano GX, Color Control GX, Lynx Smart BMS, Lynx Shunt VE.Can, MPPT solar charge controllers, CANUSB interface, and any other Victron product equipped with a VE.Can port.

Plug-and-Play — No Configuration Required

Simply plug one terminator into the open RJ45 VE.Can port at each end of the network — no tools, wiring, or settings changes required. The network is correctly terminated and ready for use immediately after insertion.

Also Included with Selected Victron Products

The VE.Can RJ45 Terminator is included in the box with certain Victron products — such as the CANUSB interface and the Lynx Shunt VE.Can — so check whether terminators are already included before ordering additional packs.

Sold as a Pack of Two

Each pack contains two terminators — the exact quantity needed to correctly terminate both ends of a single VE.Can bus — making ordering straightforward for new installations and ensuring a spare pair is always available on site.
