Victron VE Direct to USB Interface

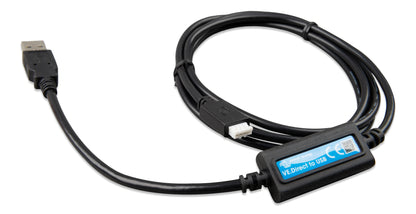

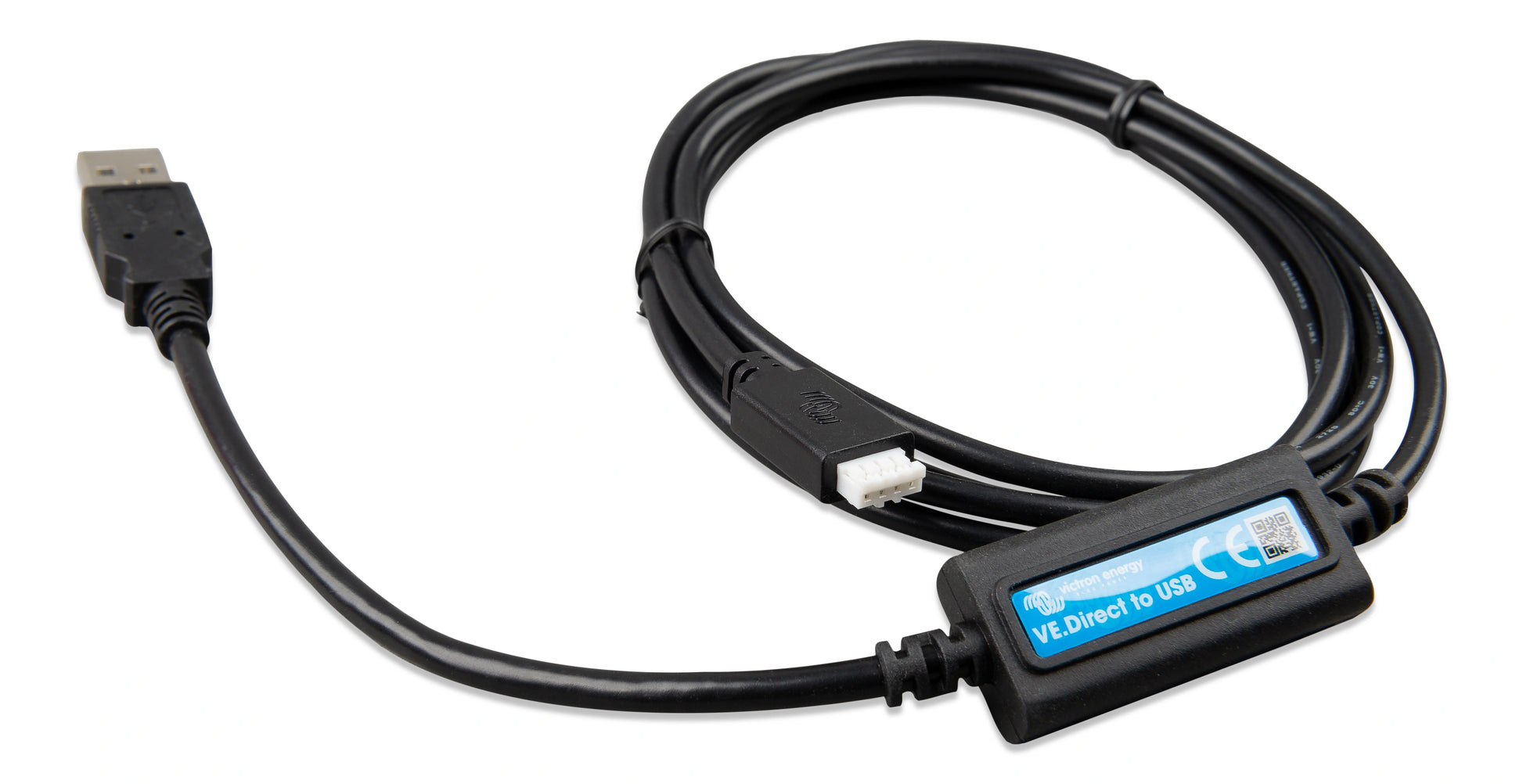

The Victron VE.Direct to USB Interface (ASS030530010) is a compact adapter cable that converts a VE.Direct port on any compatible Victron product to a standard USB-A connection, enabling direct communication between a VE.Direct-equipped device and any computer, laptop, or USB host device. It is the standard interface used for device configuration, firmware updates, data logging, and real-time monitoring via the VictronConnect app on Windows, macOS, and Linux computers.

The cable is used in two primary ways: first, for connecting a single VE.Direct device — such as a SmartSolar MPPT charge controller, BMV battery monitor, or SmartShunt — directly to a computer running VictronConnect for configuration and firmware updates; and second, for expanding the VE.Direct device capacity of a Victron GX monitoring device. Since a CCGX or Cerbo GX has a fixed number of dedicated VE.Direct ports, additional VE.Direct products can be connected to the GX device's USB-A ports using VE.Direct to USB interface cables — effectively bypassing the VE.Direct port limit and allowing more devices to be monitored simultaneously.

Powered entirely by the connected USB host port, the interface requires no external power supply and is recognised automatically by VictronConnect and Venus OS without additional drivers on current operating systems. It is compatible with all Victron products featuring a VE.Direct port, making it a universally useful interface cable across the entire VE.Direct product family.

Features

Connects VE.Direct Devices to Computers via USB

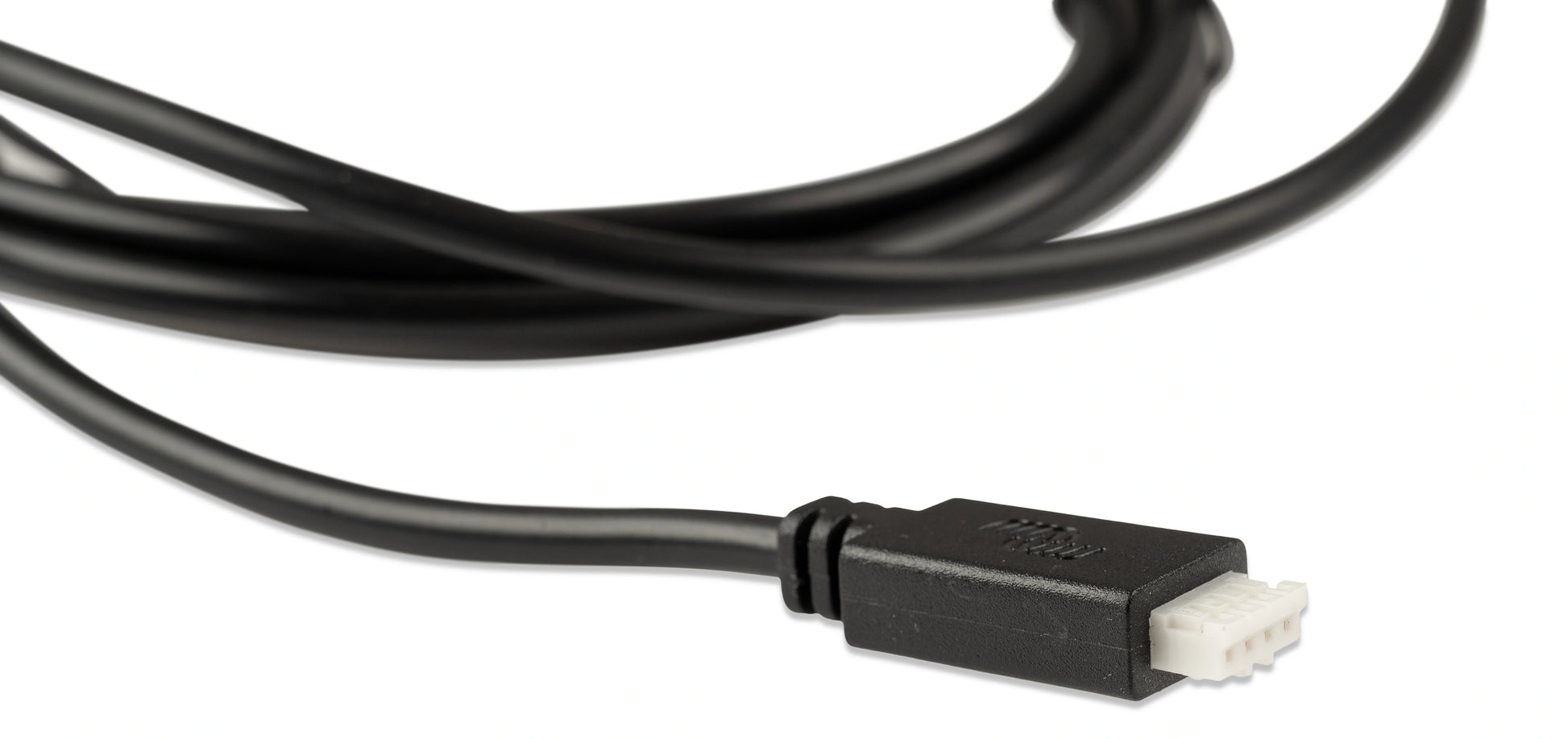

Converts the VE.Direct port on any compatible Victron product to a USB-A connection — enabling the VictronConnect app on Windows, macOS, and Linux to communicate with the device for real-time monitoring, settings configuration, and firmware updates without requiring Bluetooth or a GX device.

Expands GX Device VE.Direct Capacity via USB Ports

When plugged into a USB-A port on a Victron GX device (Cerbo GX, CCGX, Ekrano GX, Venus GX), the interface allows an additional VE.Direct product to be connected and monitored — bypassing the physical limit of dedicated VE.Direct ports on the GX device and allowing more products to be integrated into a single monitoring system.

Compatible with All VE.Direct Victron Products

Compatible with the full range of Victron products equipped with a VE.Direct port — including SmartSolar and BlueSolar MPPT charge controllers, BMV-700/702/712 battery monitors, SmartShunt, Phoenix inverters, Blue Smart chargers, and all other VE.Direct-equipped Victron devices.

Firmware Updates and Configuration via VictronConnect

Enables firmware updates and full settings configuration of VE.Direct-equipped Victron products via the VictronConnect app on a computer — essential for devices without Bluetooth, or in situations where a USB wired connection is preferred over wireless for reliable firmware programming.

No Drivers Required on Current Operating Systems

The interface is recognised automatically by VictronConnect on Windows, macOS, and Linux without requiring additional driver installation on current operating system versions — enabling fast, hassle-free connection to any compatible laptop or desktop computer.

Bus-Powered — No External Power Required

Powered entirely from the connected USB host port — no separate power supply, mains connection, or battery connection is required for the interface itself to operate.

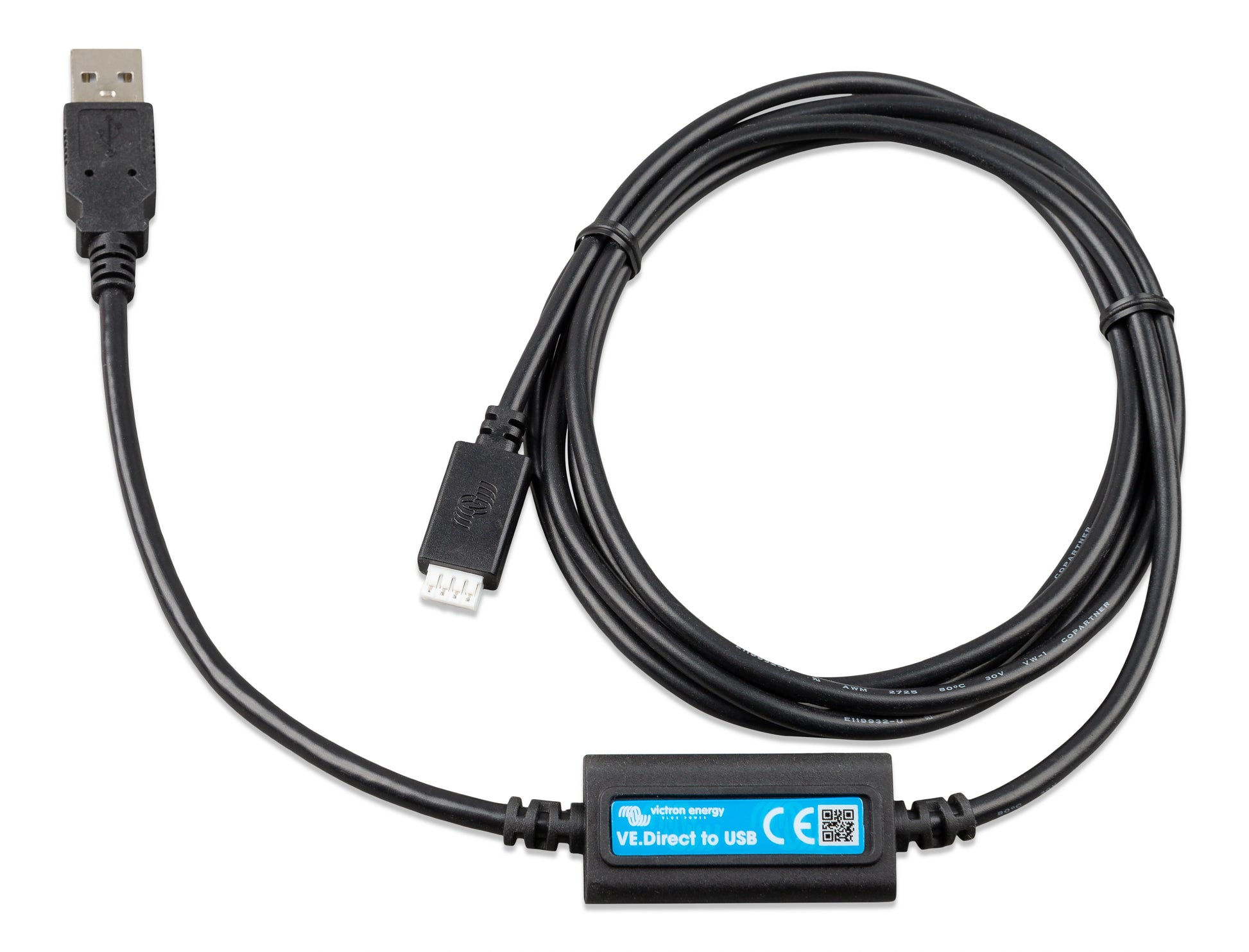

1.8-Metre Cable Length

The 1.8-metre (approximately 5'10") cable length provides sufficient reach for most installation configurations — long enough to connect a device mounted in a battery compartment or electrical panel to a laptop or GX device mounted nearby, without excess cable clutter.
