X Series Electric Outboard 12-40 kw

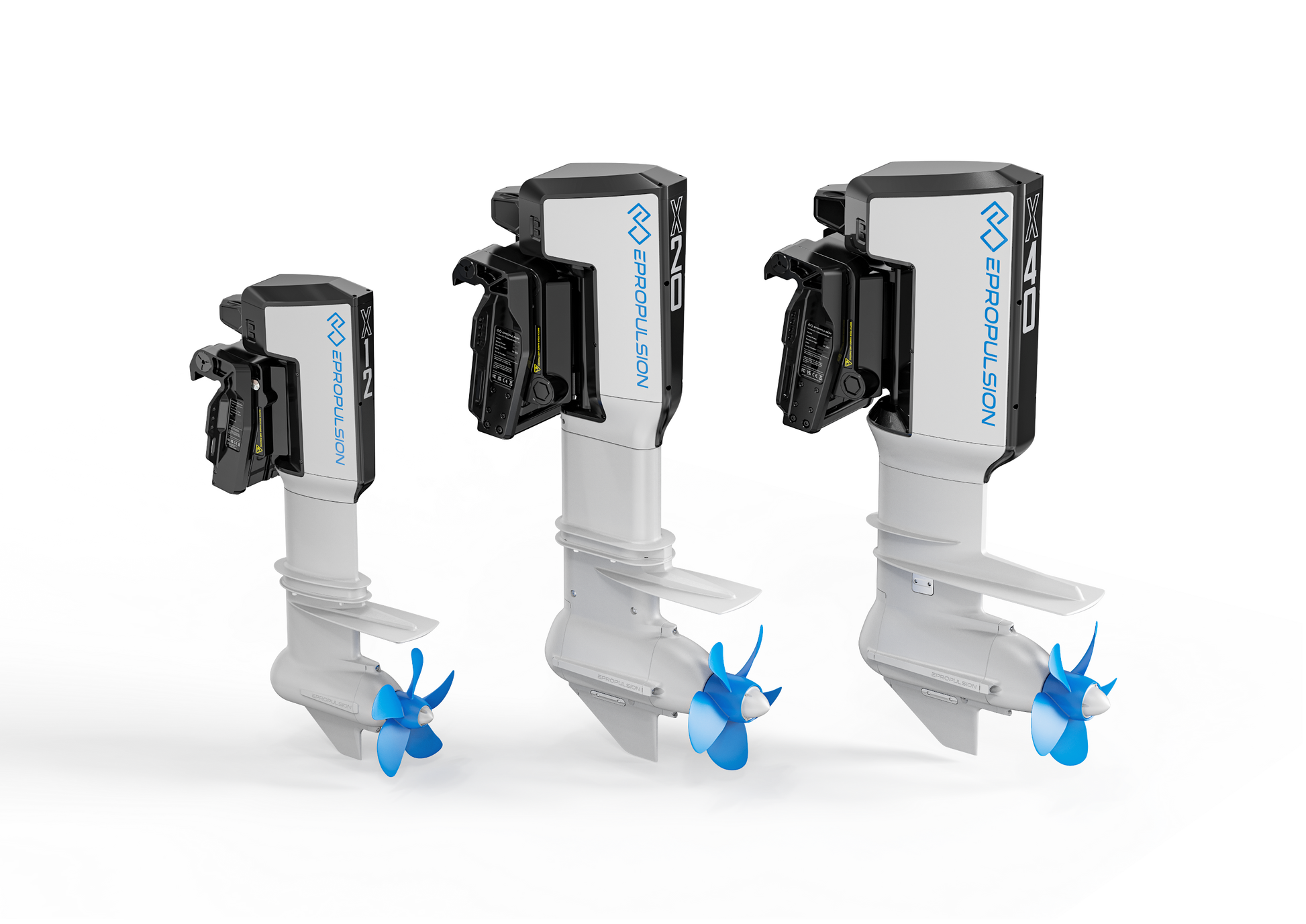

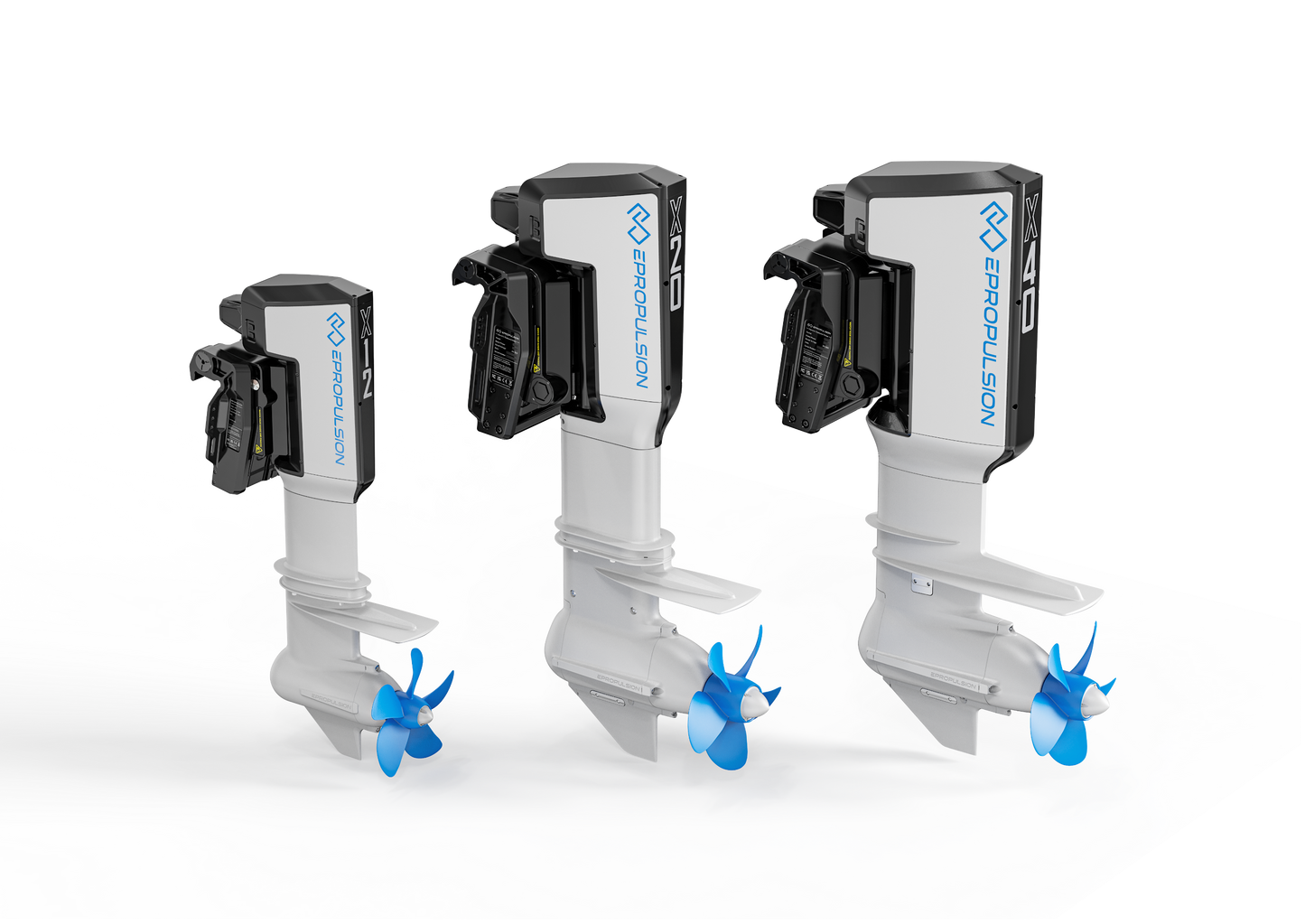

The X Series comprises three innovative electric outboard motors, the X12, X20 and X40, offering remarkable electric propulsion systems with ingenious features.

New Standards for Performance and Efficiency
Setting a new benchmark for energy-efficient marine propulsion, all motors in the series offer an
impressive total powertrain efficiency of 88.2% and are named after the impressive power. The
X12 features 12kW power, the X20 generates 20kW of power and the X40, which made its debut
at the Fort Lauderdale Boat Show boasts a massive 40kW of power.

Weighing up to 36% less than traditional motors, the ingenious X Series features a compact, fully integrated design. All motors within this series unify electric steering, power trim/tilt, the electric control unit (ECU) and the controller within a single assembly, simplifying installation and optimizing onboard space.

The X Series is innovative and user-friendly, featuring the ePropulsion Smart System Architecture (eSSA), facilitating a seamless, worry-free experience for boaters. The modular architecture of eSSA not only assures simple system

configuration but also supports the integration of renewable energy systems for an enhanced, sustainable experience on the water.

X Series Models:

X12 Short Shaft: Short Shaft 15" (381mm), 96V, 106 lbs (48 kg)  - P/N: X1-0000-S0

X12 Long Shaft: Long Shaft 20" (508 mm), 96V, 110 lbs (50 kg) - P/N: X1-0000-L0

X20 Long Shaft: Long Shaft 20" (508 mm), 96V, 174 lbs (79 kg)  - P/N: X2-0000-L0

X20 Extra Long Shaft: X-Long Shaft 25" (635 mm), 96V, 179 lbs (81 kg) - P/N: X2-0000-X0

X40 Long Shaft: Long Shaft 20" (508 mm), 96V, 229 lbs (104kg)  - P/N: X4-0000-L0

X20 Extra Long Shaft: X-Long Shaft 25" (635 mm), 96V, 234 lbs (106 kg)  - P/N: X4-0000-X0

X Series  Videos:

X Series information:
	X12 Specifications Sheet
	X20 Specifications Sheet
	X40 Specifications Sheet
