Xantrex Remote Panel for Freedom 458 (84-2056-01)

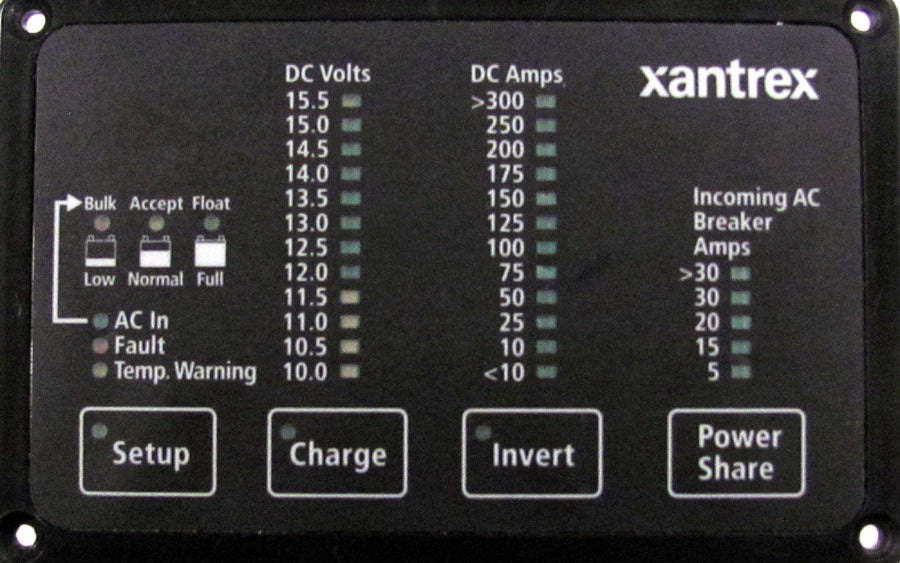

The Freedom 458 Basic Remote Panel

The Freedom Remote Control Panel allows you to control your Freedom Combi, Freedom 458 and Freedom Marine Series Inverter/Charger system from any convenient location. With controls that can be accessed directly from the front panel, it is easy to read, operate and install.

Product Features

• Independent invert and charge on/off controls
• Push button control of power sharing, equalizing, battery set-up
• Multi-colored LED displays battery state of charge, fault conditions, AC input, DC voltage and DC amperage
• LED warning indicators for low battery and overload warning
• Splash resistant design
• Incoming AC breaker selection allows programmable power sharing
• Easy to install
• One year warrant

Dimensions (L x W x D)     5.75" x 3.75" x 1.75” (146 X 95 X 25 mm)

Cutout Size (W x H)     4.875" x 2.875” (116 X 73 mm)

Manufacturer Part #  84-2056-01

More detailed information:
	Xantrex Freedom Basic Remote Control Panel Datasheet
