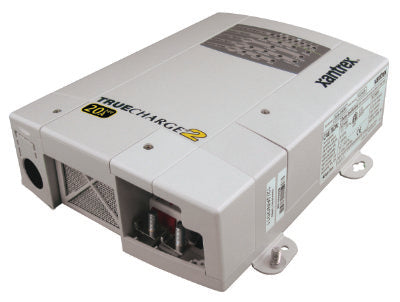

Xantrex TRUECharge2 10A 20A 30A 24V Battery Chargers Battery Chargers are designed to meet the specific needs of marine and commercial markets. Available in 10A, 20A and 30A versions, each model packs a powerful universal charger (90-240Vac, 47-63 Hz) in an ultra-compact, lightweight package.
TRUECharge2 battery chargers are highly versatile and can be mounted in multiple positions, thanks to their inherent drip-free design characteristics. TRUECharge2 delivers outstanding low electrical interference, coupled with efficient, power factor corrected, multistage charging capability. Installation is a breeze, thanks to the easy-access AC and DC wiring compartments. The easy-to-read display can be augmented with an optional remote panel.
TRUECharge2 24-volt chargers are available with parallel stacking feature which allows you to double the output current when used with the optional REMOTE PANEL (part #808-8040-01).
TRUECharge2 Features:
- 24-volt models available in 10A, 20A and 30A
- Microprocessor-controlled, multistage charging algorithms
- Settings for two and three-stage charging
- Settings for flooded, gel, AGM or lead-calcium batteries
- Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources
- Power factor corrected, temperature-compensated charging
- Battery-equalization feature
- Ability to charge batteries drained to extremely low voltage
- Battery temperature sensor available (Part #808-0232-01)
- Optional remote panel (#808-8040-01)
TRUECharge2 Protection Features
- Reverse battery polarity protection
- Drip-proof design
- Over and under-temperature protection
- DC over-voltage protection
- Battery overcharging protection
Specifications
| Specifications |
TRUEcharge2 10 |
TRUEcharge2 20 |
TRUEcharge2 30 |
| Output current (continuous) |
10 Amps |
20 Amps |
30 Amps |
| Output voltage charge |
28.4 - 31.0 VDC |
28.4 - 31.0 VDC |
28.4 - 31.0 VDC |
| Output voltage float |
26.8 - 27.6 VDC |
26.8 - 27.6 VDC |
26.8 - 27.6 VDC |
| Output voltage equalize |
32 VDC |
32 VDC |
32 VDC |
| Input Voltage / Frequency |
90-265 VAC/ 47-63Hz |
90-265 VAC/ 47-63Hz |
90-265 VAC/ 47-63Hz |
| Dimensions (H x W x L) |
2.8 x 6.7 x 9.8”
70 x 170 x 250mm |
2.8 x 6.7 x 9.8”
70 x 170 x 250mm |
3.5 x 6.7 x 13.4”
90 x 170 x 340 mm |
| Weight |
4.8 lbs. / 2.2 kg |
4.8 lbs. / 2.2 kg |
9.9 lbs. / 4.5 kg |
| Recommended Min. battery bank size |
40 Amp Hours
|
80 Amp Hours
|
120 Amp Hours
|
| Battery connections |
3+, 1- terminals |
3+, 1- terminals |
3+, 1- terminals |
| Multistage Charging |
3 Stage |
3 Stage |
3 Stage |
| Remote Panel Option |
Y |
Y |
Y |
| Part Numbers |
804-2410 |
804-2420
|
804-2430
|
Note: Please ensure you order TRUECharge2 Remote Panel part #808-8040-01 for parallel stacking.
