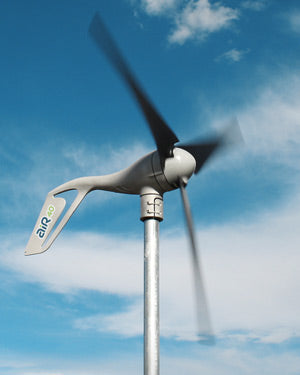

Air 40 Land Small Wind Turbine 24V

Boost Performance?
$952.00
$952.00 $999.00
SKU: WGO10035A

Questions about compatibility? Call us for help.

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

Air 40 Land Small Wind Turbine 24V operates efficiently across a wide-range of wind speeds, providing energy for telecom, water pumping, lighting, SCADA, off-grid systems, and low energy demand battery charging applications.

 If you are interested in boosting the Air 40 Micro Wind Turbine performance, then you need to select the Blue Blades option from the radio buttons above.

The Blue Blades are hand laid carbon fiber blades that are balanced into a set providing maximum energy harvest from the wind while operating with minimum vibration and very low noise.



Air 40 Land Turbine Specifications:

Energy Approx. 40 kWh/mo at 5.8 m/s (13 mph)
Swept Area 1.07 m2 (11.5 ft2)
Rotor Diameter 1.17 m (46 in)
Weight 5.9 kg (13 lb)
Shipping Dimensions 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb)
Startup Wind Speed 3.1 m/s (7 mph)
Voltage 12, 24 and 48 VDC
Turbine Controller Mircoprocessor-based smart controller
Body Permanent mold cast aluminum
Blades (3) Injection-molded composite
Alternator Permanent magnet brushless
Overspeed Protection Electronic torque control
Survival Wind Speed 49.2 m/s (110 mph)
Mount 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter
Wind Speed Operating Range 3.1-22 m/s (7-49 mph)
Optimum Wind Speed Range 4.5-22 m/s (10-49 mph)




AIR 40 Wind Generators Parts
AIR 40 Parts Full selection of AIR 40 Wind Turbine Replacement Parts



Air 40 24V Small Wind Turbine Documents:
PDF Air 40 24V Manual
PDF Air 40 24V Warranty Card
PDF

Air 40 Spec Sheet
