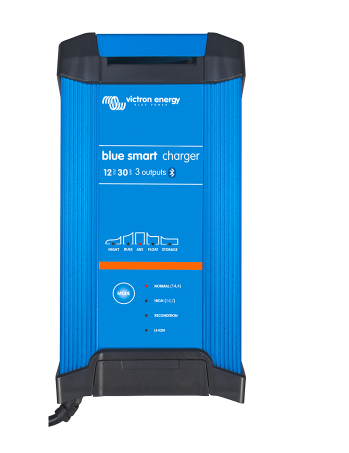

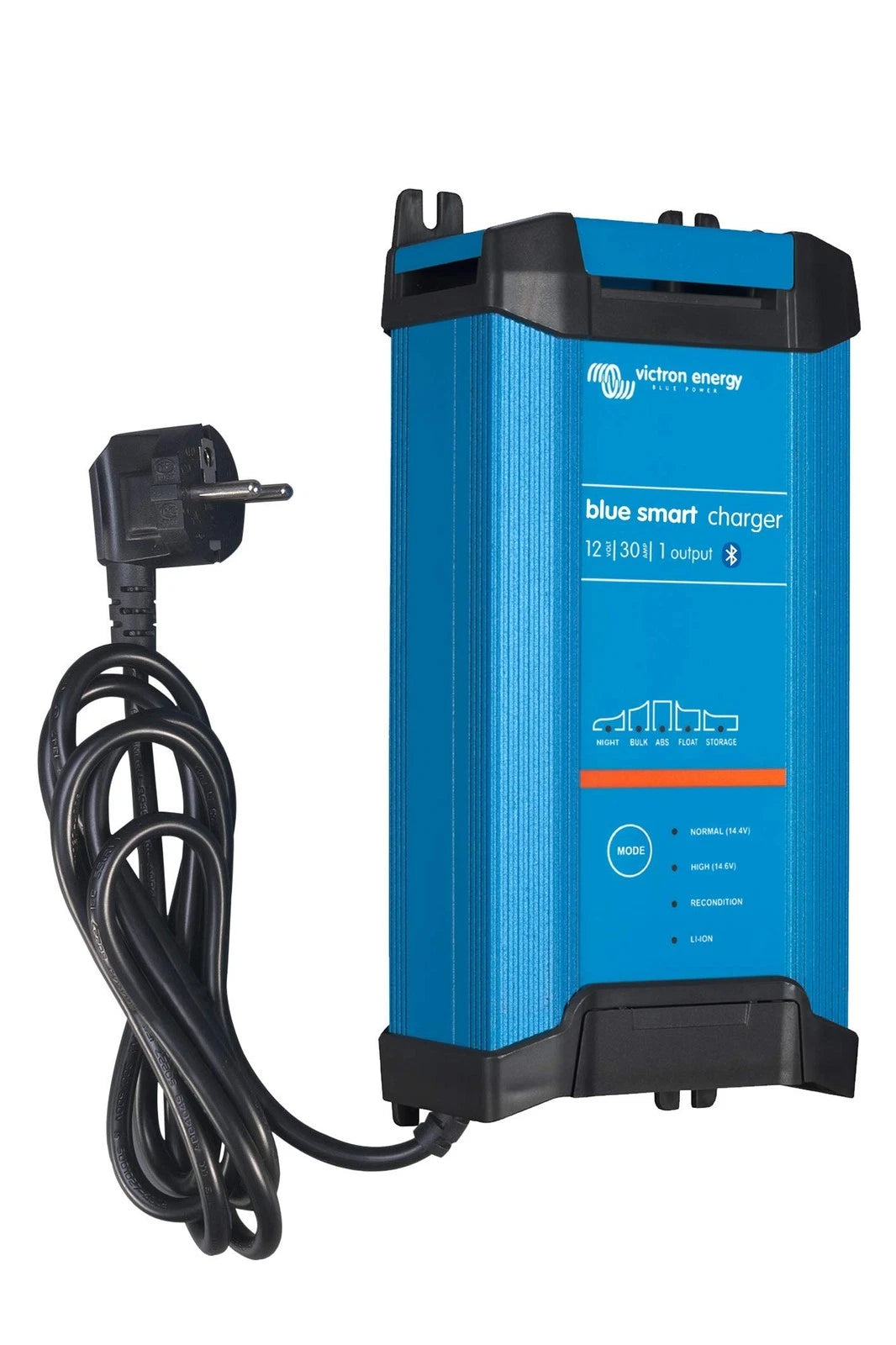

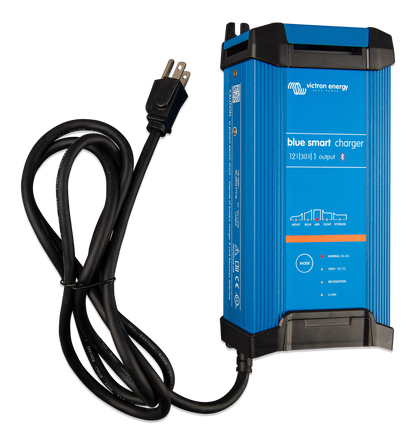

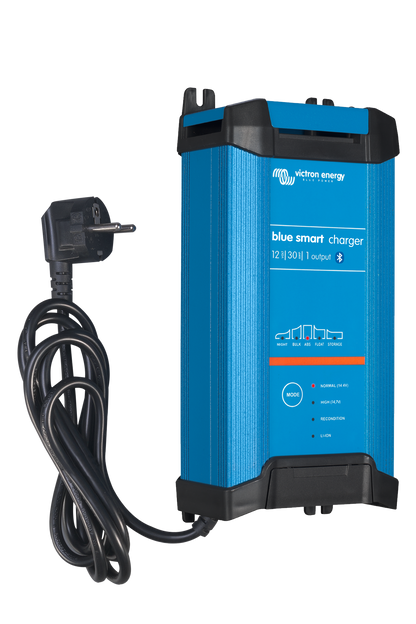

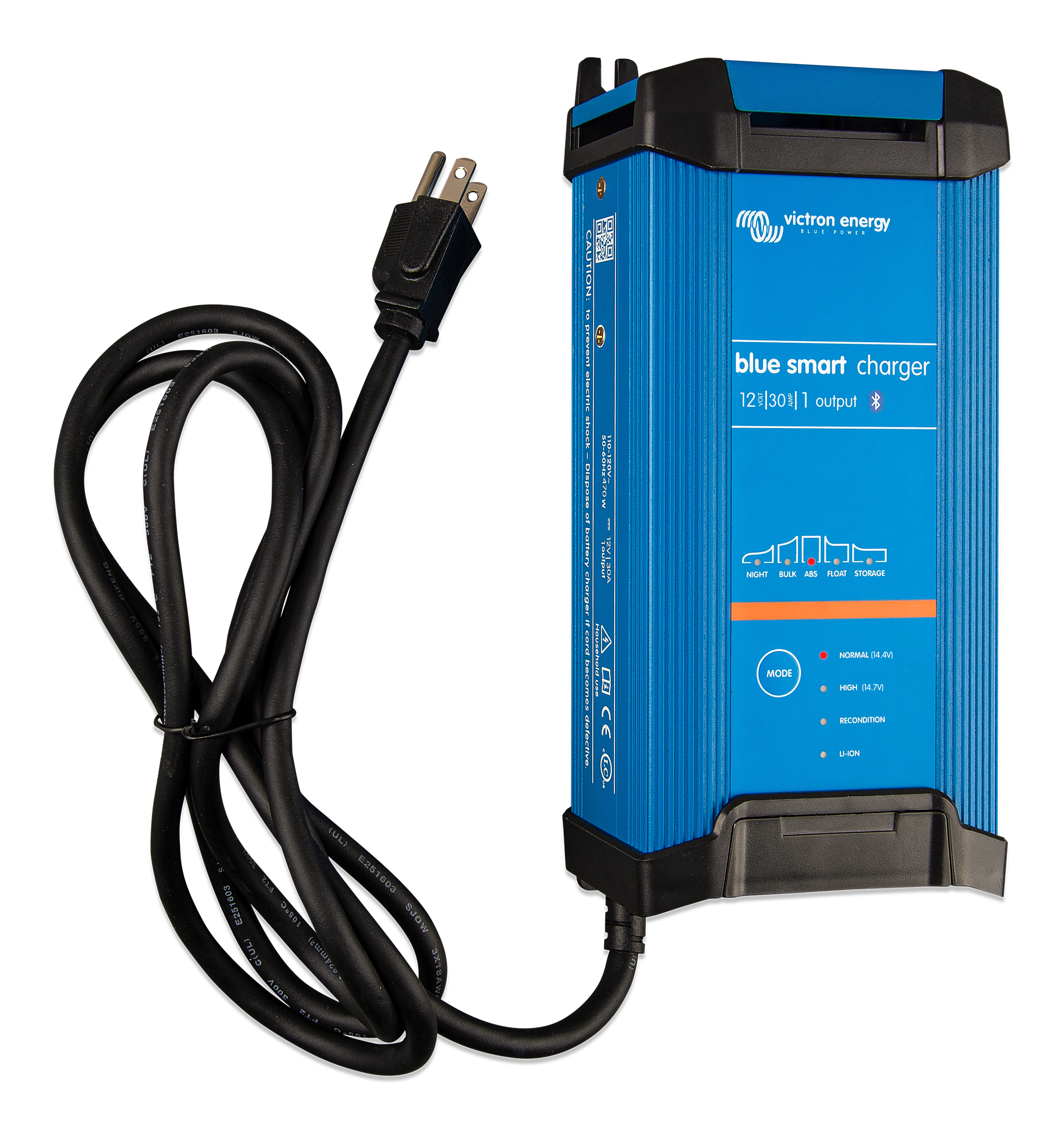

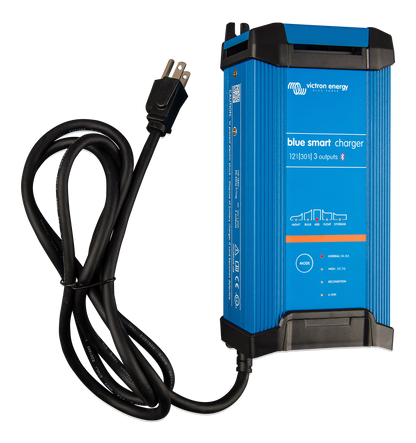

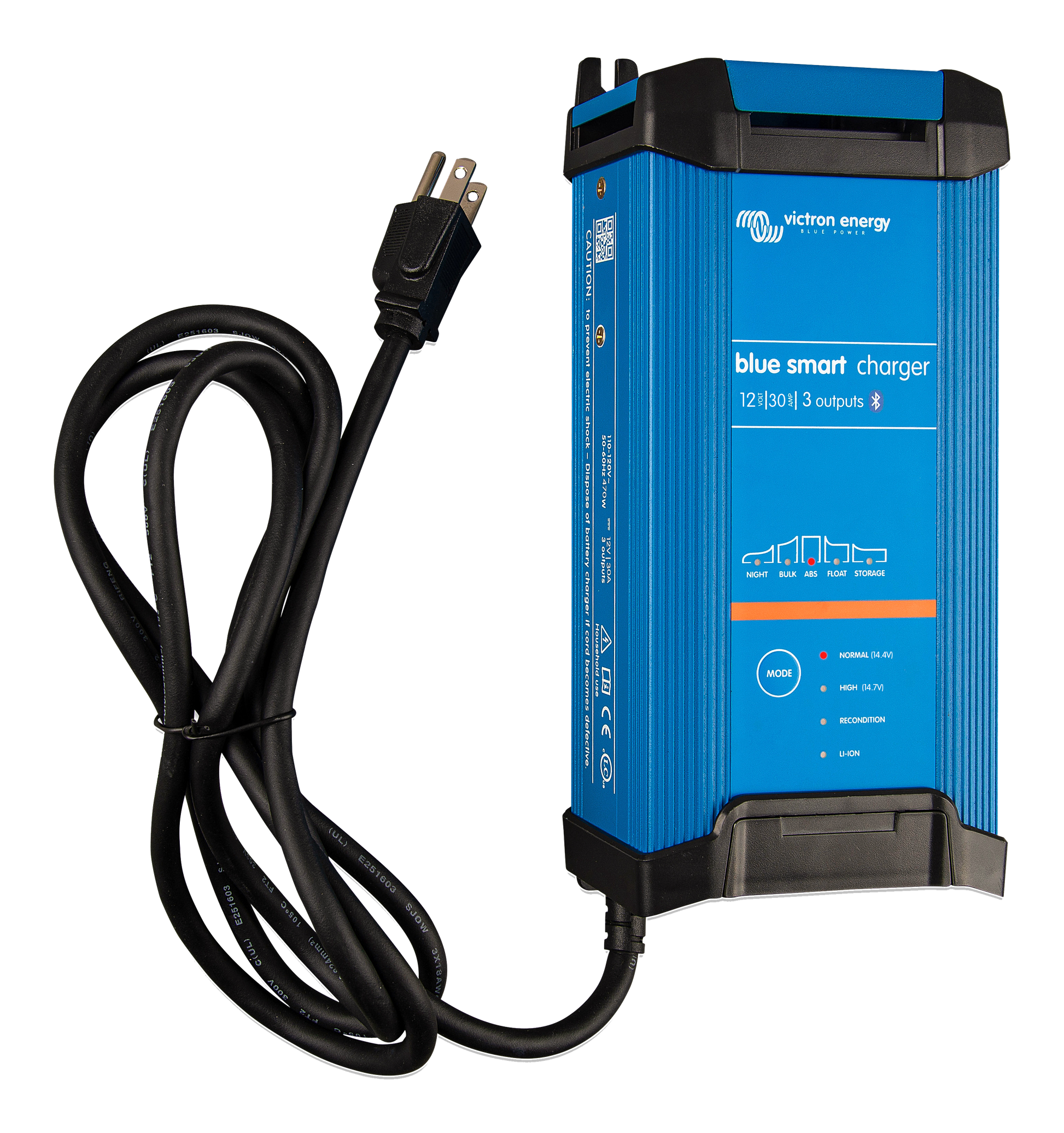

BlueSmart IP22 Charger 12V/30A

The Blue Smart IP22 Charger is the new professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available. Blue Smart IP22 Battery Charger: The highest efficiency ever! With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Bluetooth Smart enabled

The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency

With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage

The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Storage Mode: less maintenance and aging when the battery is not in use

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.

Also charges Li-ion (LiFePO₄) batteries

LiFePO₄ batteries are charged with a simple bulk – absorption – float algorithm.

NIGHT and LOW setting

When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Protected against overheating

Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.

Eleven LEDs for status indication

Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.

MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.

Learn more about settings and monitoring:

Features

Smart Bluetooth Monitoring Integrated Bluetooth enables wireless setup and status monitoring. You can check battery voltage, current, and charge progress, as well as modify settings without needing physical access to the device.

Adaptive 6-Stage Charging Algorithm The microprocessor manages a 6-stage process: Test, Bulk, Absorption, Recondition, Float, and Storage. This ensures the battery is charged safely and efficiently based on its state of charge.

Night Mode and Low-Power Operation The charger features a dedicated 'Night' or 'Low' mode that reduces the output current to 50% of the nominal rating. In this mode, the charger operates in near-silence, making it ideal for overnight charging in quiet environments.

High Efficiency and Thermal Management Engineered for longevity, the unit boasts 94% efficiency, ensuring it runs cool and requires no noisy internal fans. The adaptive power management adjusts the output current if the ambient temperature rises, maintaining safe operating conditions.

Comprehensive Protections Built-in safety systems protect against short circuits, reverse polarity, and over-temperature, ensuring reliable performance even under demanding conditions.

Specifications

Input voltage: 180 - 265 VAC
Efficiency: 94%
No load power consumption: 0.5 W
Charge voltage 'absorption': 14.4 V
Charge voltage 'float': 13.8 V
Charge voltage 'storage': 13.2 V
Charge current: 30 A
Low current mode: 15 A
Protection: Reverse polarity, Output short circuit, Over temperature
Operating temp. range: -20 to +50°C
Humidity: Max 98% (non-condensing)

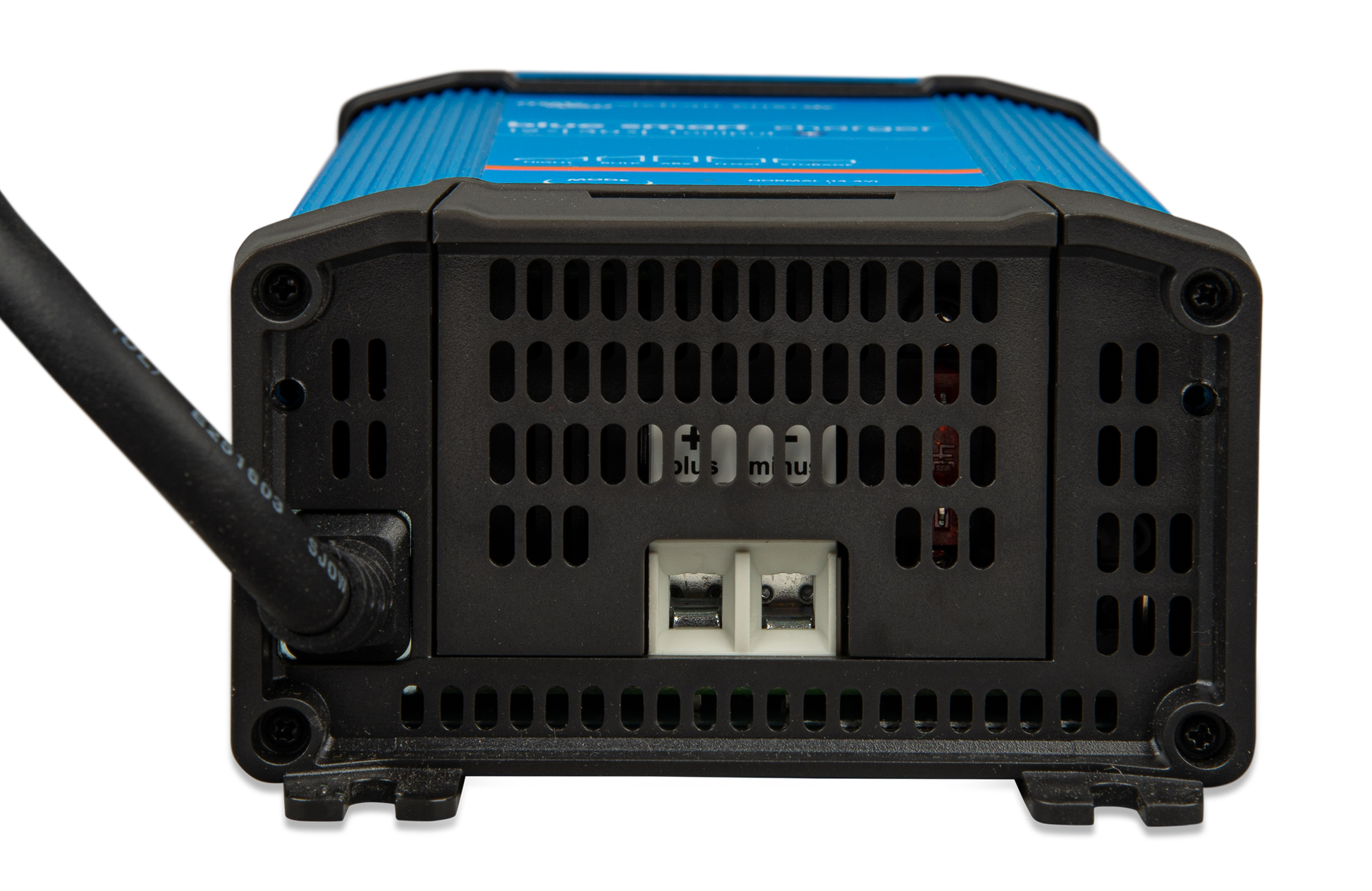

Battery-connection: Screw terminals (can accommodate cables up to 13 mm²)

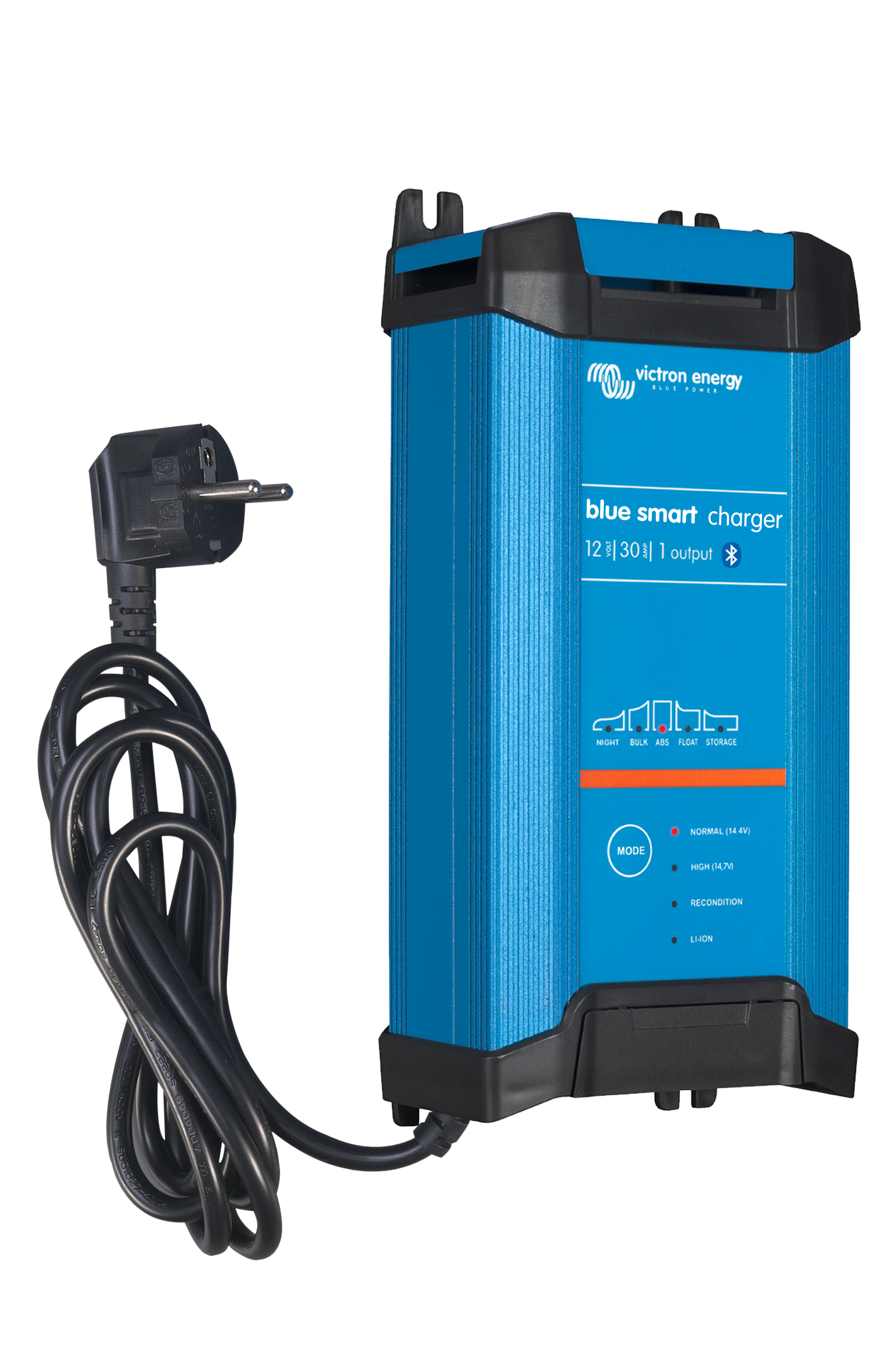

230V AC-connection: Cable 1.5 meter with CEE 7/7 plug
Protection class: IP22
Dimensions (h x w x d): 65 x 180 x 235 mm
Weight: 1.4 kg
