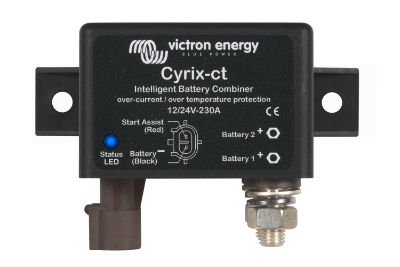

Cyrix-ct 12/24V 230A Battery Combiner

Cyrix-ct 12/24V 230A Battery Combiner is an intelligent battery monitoring that prevents unwanted switching. Some battery combiners (also called voltage controlled relay, or split charge relay) will disconnect a battery in case of a short but high amperage load.

A battery combiner also may fail to connect a large but discharged battery bank because the DC voltage immediately drops below the disengage value once the batteries are connected

The software of the Cyrix-ct 12/24V does more than simply connect and disconnect based on battery voltage and with a fixed time delay. The Cyrix -ct 12/24 looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a cert ain period of time. The time delay depends on the voltage deviation from the trend.

Cyrix-ct 12/24V 230A Battery Combiner Connection Diagram:

Victron Cyrix-ct Information:
	Cyrix-ct 12/24V-230A Datasheet
