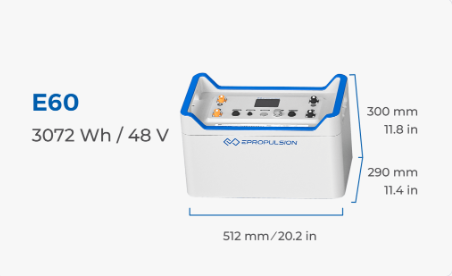

E60 LiFePO4 Batteries 48v 3072W-Hr
Regular price
$1,999.00
Sale price
$1,999.00
Regular price
$0.00
Unit price
per
SKU: EDE38021
Questions about compatibility? Call us for help.
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
Product Discontinued ..Replaced by E163 Batteries
High Performance
E60 (single battery) can support Navy 3.0 Evo (6HP) full power output.
Flexible Installation
The height of E60 battery is only 300 mm, allowing flexible installation under the boat seat or other available spaces.
Lightweight
Features a new innovative double-layer plastic housing design weighing only 33 kg and can be easily lifted by two persons.
| E60 | |
| Capacity | 3072 Wh / 60 Ah |
| Rated Voltage | 51.2 V |
| Battery Life | 3,000 cycles at 80% DOD |
| Weight | 33 kg |
| Dimensions | 512 x 290 x 300 mm(20.2 x 11.4 x 11.8 in) |
| Cut-off Voltage | 41.6 V |
| Final Charging Voltage | 57.6 V |
| Max Continuous Discharging Current | 70 A |
| Serial Connection | N/A |
| Parallel Connection | Up to 16 |
| Cell Configuration | 16S4P |
| Charger | E-Series battery charger |
| Charging Time (220V) | One charger: 2.7 Hrs Two chargers in parallel: 1.3 Hrs |
| Charging Time (110V) | One charger: 4 Hrs Two chargers in parallel: 2 Hrs |
| Charging Temperature | 0 to 55℃ (32 to 131˚F) |
| Discharging Temperature | -10 to 60℃ (14 to 140˚F) |
| Communication | Available: CAN-Bus for Parallel RS485 for ePropulsion motors |
| Shipping Classification | UN3480, Class 9, UN38.3 Certified |
| Approvals | CE, UKCA, FCC |
| Warranty (Non-Commercial Use) | 2 years |
