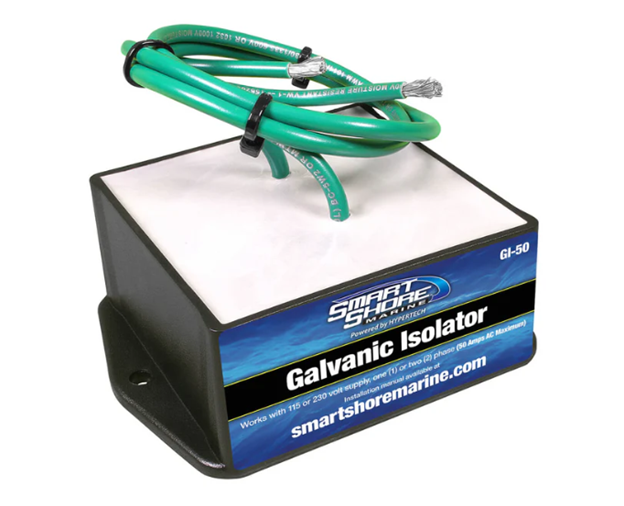

Hypertech Galvanic Isolator

Skip to product information

Regular price $160.45
Sale price $160.45 Regular price $160.45
SKU: GIY12105

Questions about compatibility? Call us for help.

Get an additional off

Add the item to cart to apply the discount

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

This item is currently out of stock. We can often special-order it or suggest an equivalent.

Request a quote or availability or call 954-581-2505.

Sorry, it's out of stock.

But we can let you know when it's back in.

Hypertech Galvanic Isolator Hookup Diagram

The Hypertech Galvanic Isolator is a galvanic isolator for boats with fiberglass or wooden hulls. It is installed in the green ground wire of the shore power connection and blocks the low DC voltages from the dock (typically under 1.5 V) that cause galvanic corrosion of zincs, propellers, shafts and other underwater metals while the boat is plugged in. If an AC fault occurs, it still passes the fault current to ground, so the safety ground keeps working.

Hypertech Galvanic Isolator Features:

  • 50 A AC continuous rating, each unit tested to 135% of rating
  • For any shore power connection up to 50 A; only one isolator is needed for dual 30 A cords
  • Works on 115 V or 230 V supply, single or three phase
  • Fail-safe; meets ABYC standards when fitted with a remote monitor (not included)
  • Waterproof (will operate underwater) and produces no heat in normal use
  • Ignition protected for use in explosive atmospheres
  • Two 18-inch 10-gauge marine-grade leads, non-metallic housing with mounting tabs
  • Mounting and connection hardware included
  • Compact size: 4" x 3" x 1.5"; operating temperature up to 122°F (50°C)
  • Made in the USA, 1-year warranty

Installation and Testing

Mount the isolator inside the boat within about 15 inches of the shore power inlet. With the shore power cord disconnected, remove the green ground wire from the inlet, connect one isolator lead to the inlet ground terminal and the other to the boat ground wire. For dual 30 A cords, join both cord grounds before the isolator. There is no built-in status monitoring, so test the isolator with a diode-test meter once a season and after a lightning strike or an electrical fault. This is a safety connection: if you are not familiar with AC wiring, have a qualified marine electrician install it.

Note: This product is only for use with fiberglass and wooden boats. For aluminum boats, choose the Hypertech Galvanic Isolator Plus for Aluminum Boats. Compare all options in galvanic isolators.

Hypertech Galvanic Isolator Information:
ADOBE PDF Hypertech Galvanic Isolator Manual
LINK Hypertech Galvanic Isolator Warranty
