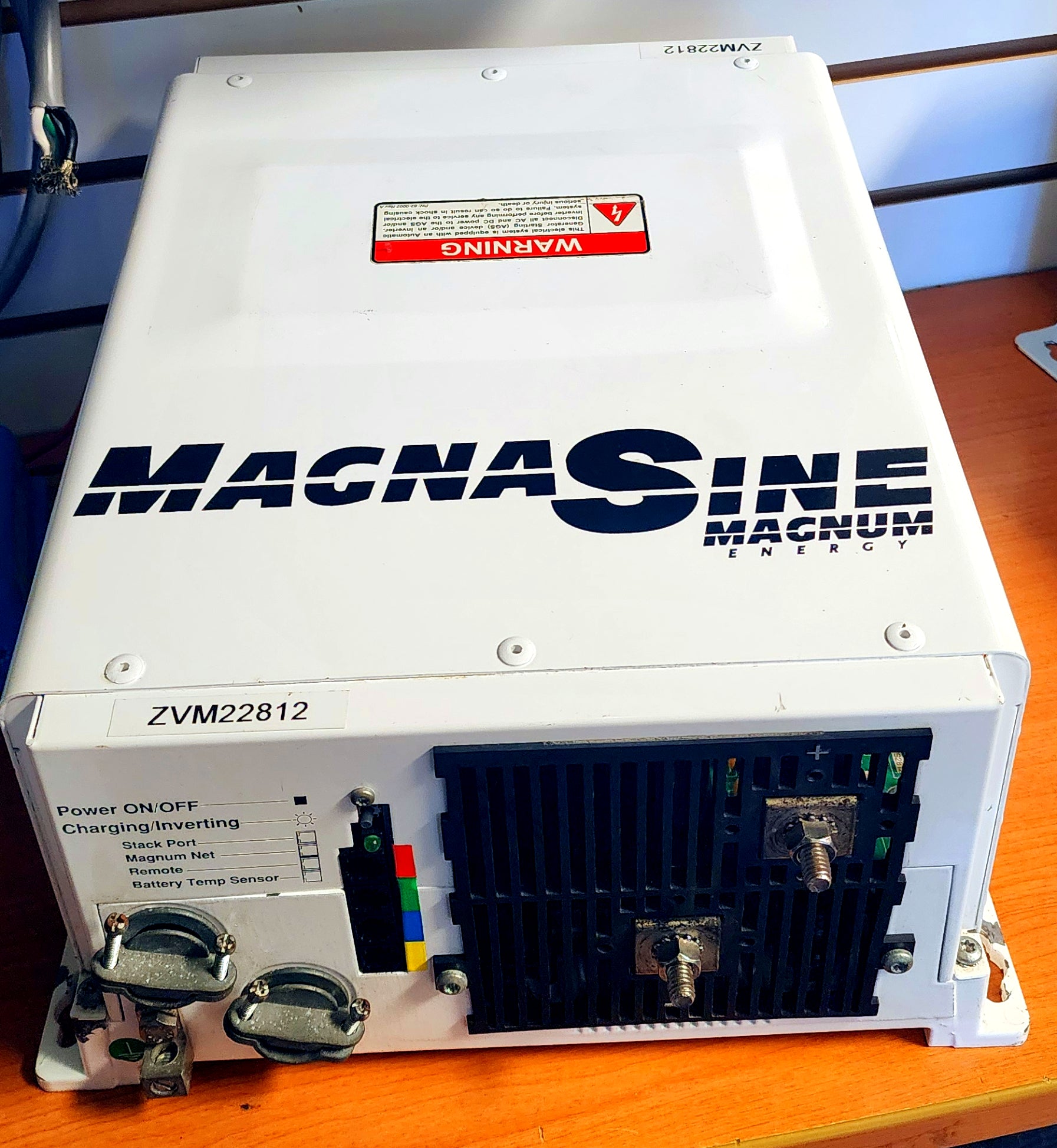

Magnum MS2812 2800W 12V Pure Sine Wave Inverter Charger 125A Used
Discontinued
This product has been discontinued. We do not expect it to become available again.
SOLD OUT
Magnum MS2812 2800W 12V Pure Sine Wave Inverter Charger 125A is designed specifically for the most demanding mobile, back-up, and off-grid applications. The MS2812 is powerful, easy-to-use, and best of all, cost effective.
A Power Factor Corrected (PFC) Charger is built into the inverter/chargers. It uses less energy (25-30% less AC current) from a generator than a standard chargers.
Magnum Inverter Charger MS2812 Installation is easy:
1. Simply connect the inverter’s output to your distribution circuits or electrical panel
2. Connect your utility power cable to the inverter’s easy-to-reach terminal block
3. Connect the batteries
4. Switch on the power
MS2812 Inverter Features and Capabilities
| Five Stage Charging Capability | Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver™ | |
| Battery Temperature Compensation |
Yes, 15 ft Battery Temp Sensor standard |
|
| Overcurrent Protection |
Yes, with two overlapping circuits |
MS2812 Inverter Specifications:
| Input Battery Voltage Range |
9 - 17 VDC |
|
| Nominal AC Output Voltage |
120 VAC ± 5% |
|
| Output Frequency and Accuracy |
60 Hz ± 0.1 Hz |
|
| Continuous Power Output at 25°C |
2800 VA |
|
| Waveform | Pure Sine Wave | |
|
Continuous Output at 25°C |
125 ADC | |
| Warranty | 3 Years (5 Years when installed on MMP or MP system) |
|
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) | |
| Operating Humidity | 0 to 95% RH non condensing | |
| Dimensions | 13.75" x 12.65" x 8.0" (34.9 cm x 32.1 cm x 20.3 cm) |
|
| Weight | 55 lbs (24.9 kg) |
|
Manufacturer part # MS2812
| Magnum MS2812 Inverter Details: | |
 |
Magnum MS2812 Manual |
|
Magnum MS2812 Data Sheet |
