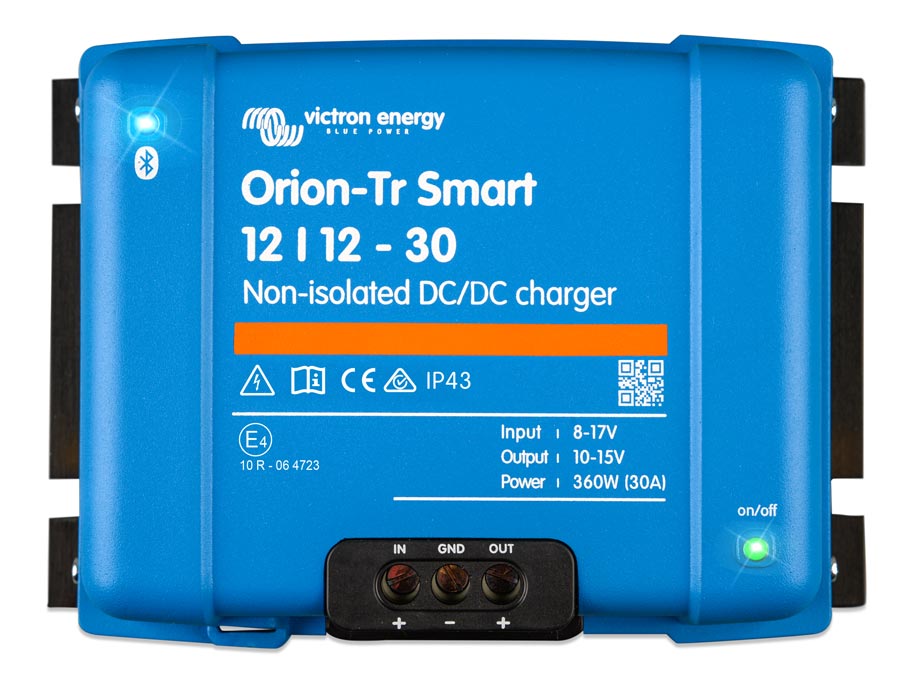

Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

DATA SHEET

Engine-on detection set-up

Datasheet | Product Manual

Datasheets and Manuals

Features

Isolated Design for Safety

The Orion-Tr Smart charger features an isolated design, ensuring complete electrical separation between the input and output. This isolation provides enhanced safety by preventing ground loops and protecting sensitive onboard electronics from potential voltage spikes.

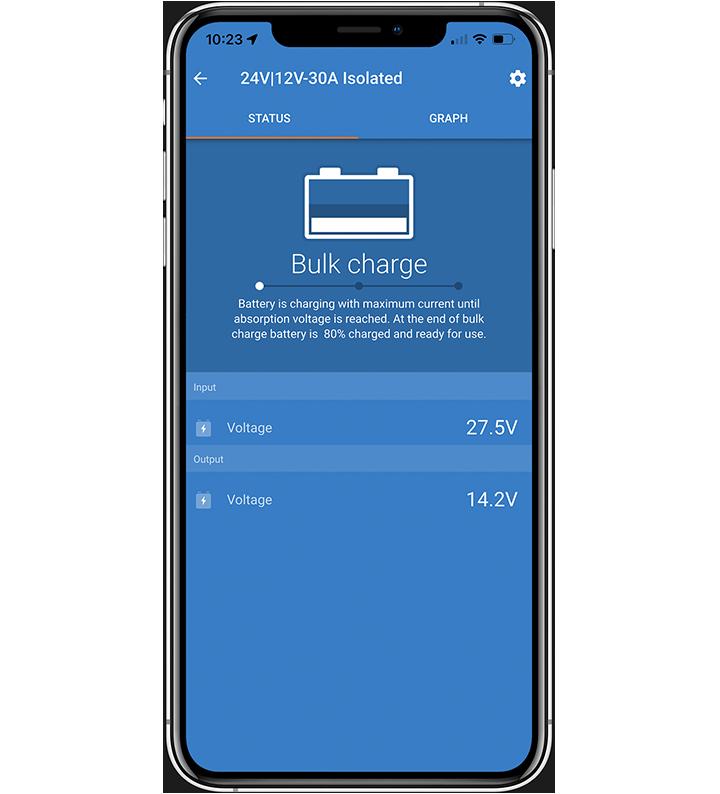

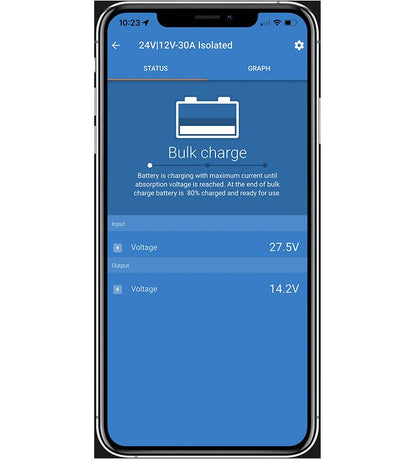

Smart Bluetooth Connectivity

Monitor and configure your charger remotely via Bluetooth using the VictronConnect app on your smartphone or tablet. This smart connectivity allows for easy setup, real-time status monitoring, and adjustment of charging parameters without needing physical access to the device.

Adaptive 3-Stage Charging Algorithm

Utilizes an intelligent 3-stage charging algorithm (bulk, absorption, float) to optimize battery health and lifespan. This adaptive process ensures your batteries receive the precise voltage and current needed for efficient and safe charging, preventing overcharging and undercharging.

Programmable Battery Settings

Customize charging profiles to match various battery chemistries, including lead-acid (gel, AGM, flooded) and lithium-ion (LiFePO4). Users can easily adjust absorption and float voltages, as well as current limits, through the VictronConnect app for optimal performance with specific battery types.

Engine Run Detection

The charger incorporates an engine run detection feature, ensuring it only charges when the vehicle's engine is running. This prevents discharge of the starter battery and maximizes efficiency by only drawing power when the alternator is active.

Temperature Protection

Built-in temperature protection safeguards the charger from overheating under heavy loads or high ambient temperatures. This feature automatically reduces the output power or shuts down the unit if temperatures exceed safe operating limits, extending the life of the device.

High Efficiency

Experience high conversion efficiency, minimizing power loss during the charging process. This results in less heat generation and more power delivered to your auxiliary batteries, making the most of your available energy.
