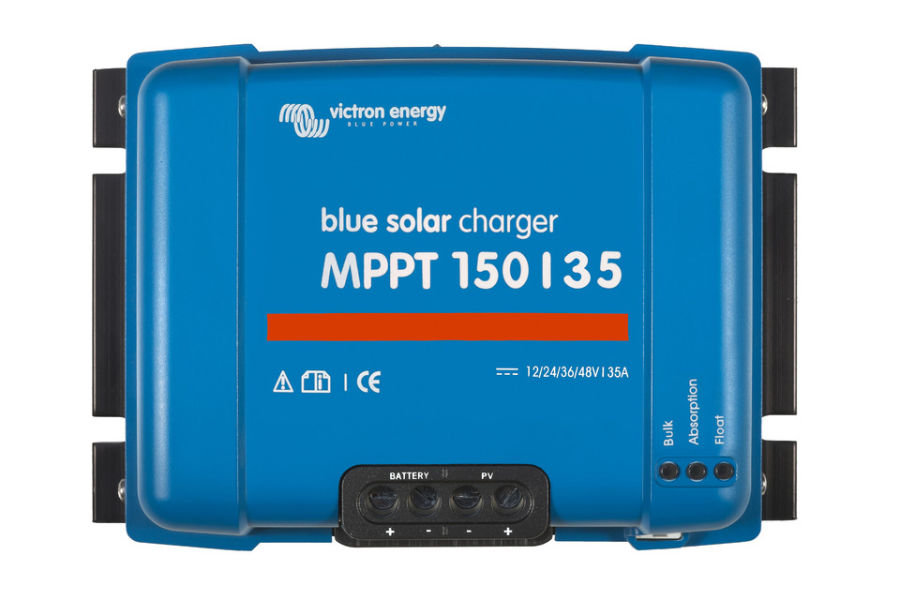

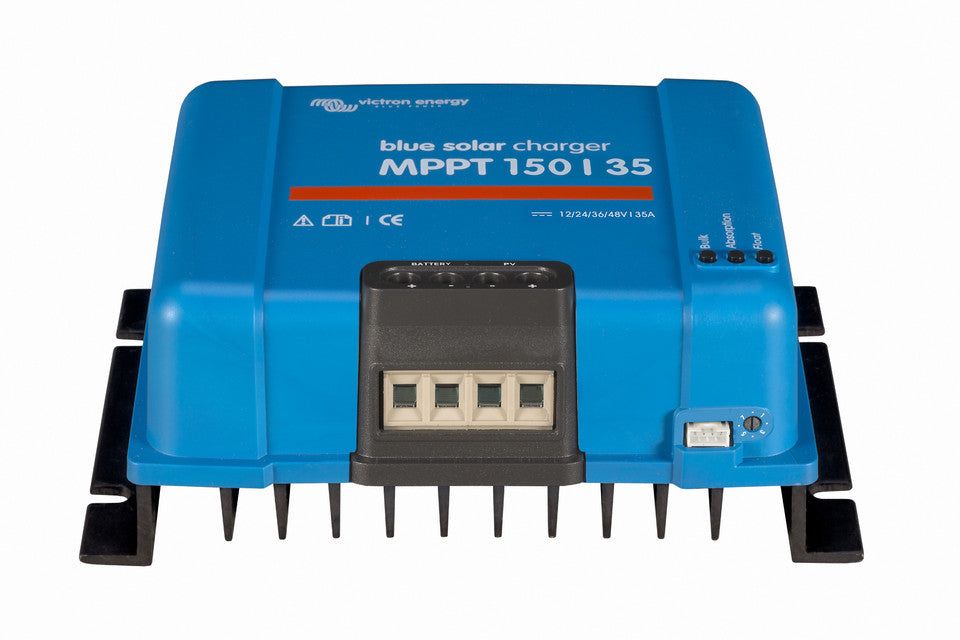

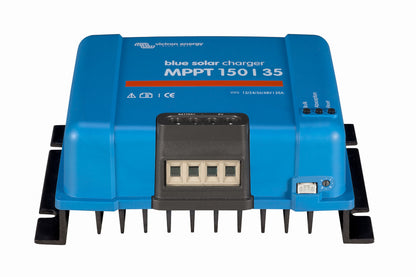

Victron Energy BlueSolar MPPT Charge Controller 150/35 (12/24/48V-35A) (Refurbished)

BlueSolar MPPT 150/35 (12/24/48V - 35A)

Charge current up to 35A and PV voltage up to 150V
The BlueSolar Charge Controller will charge a lower nominal voltage battery with a higher nominal voltage PV array. The controller will automatically adjust to 12V, 24V or 48V nominal battery voltage. (software tool needed to select 36V)

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Feature Highlights

• Ultra-fast Maximum Power Point Tracking (MPPT)
• Advanced Maximum Power Point Detection in case of partial shading conditions
• Load output on the small models
• BatteryLife: intelligent battery management by load shedding
• Automatic battery voltage recognition
• Flexible charge algorithm
• Over-temperature protection and power de-rating when temperature is high

All Victron Energy MPPT Charge Controllers are compatible with the Color Control GX: The Color Control GX provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT 150/70, BMV-600 series, BMV-700 series, Skylla-i, Lynx Ion and even more.

Victron Energy BlueSolar MPPT Charge Controller 100/50 information:
	Victron Energy BlueSolar MPPT Charge Controller 150/35 Overiew
	Victron Energy BlueSolar MPPT Charge Controller 150/35 DataSheet
	Victron Energy BlueSolar MPPT Charge Controller 150/35 Manual
	Victron Energy BlueSolar MPPT Charge Controller 150/50 Instruction for Changing Setting
