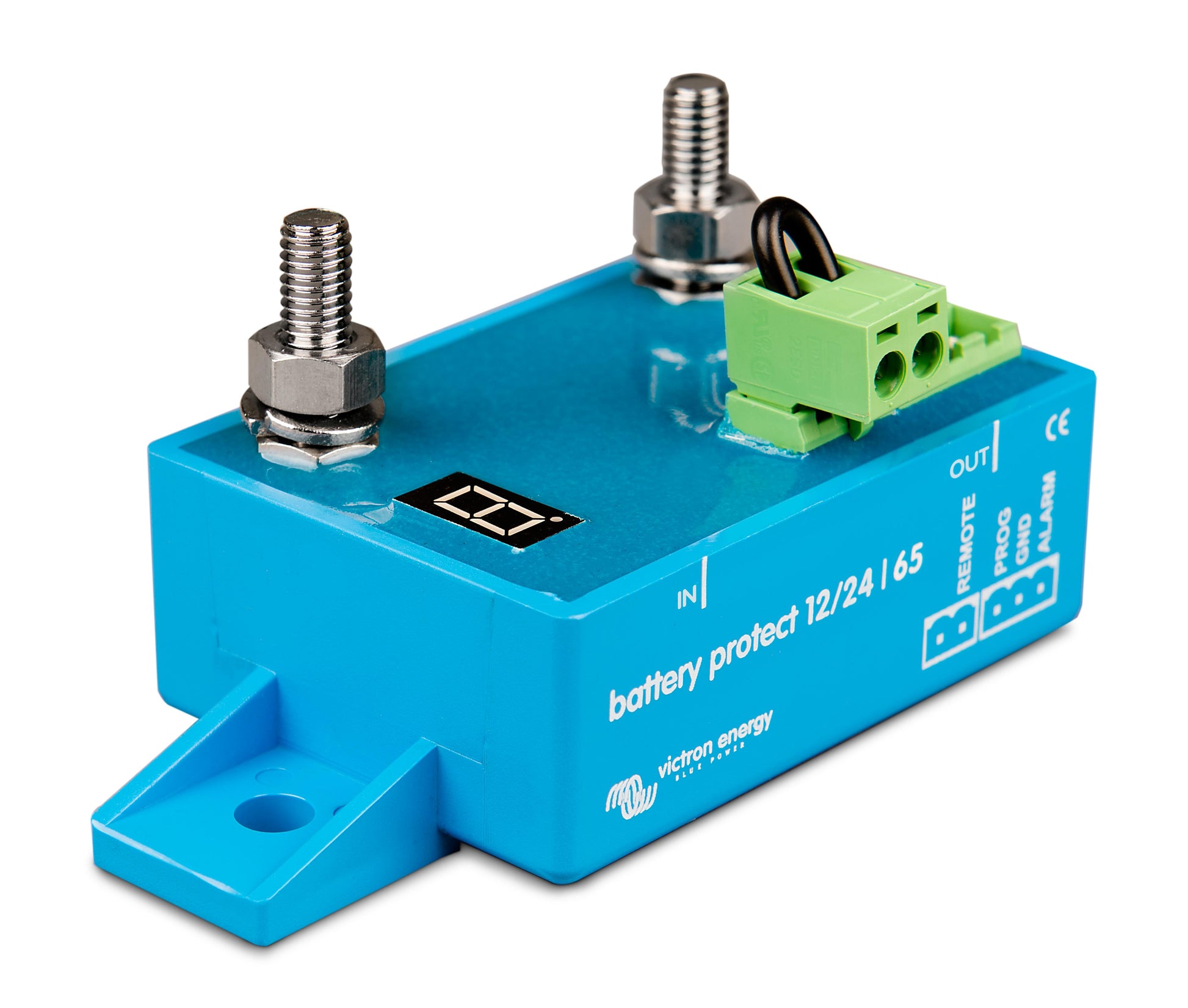

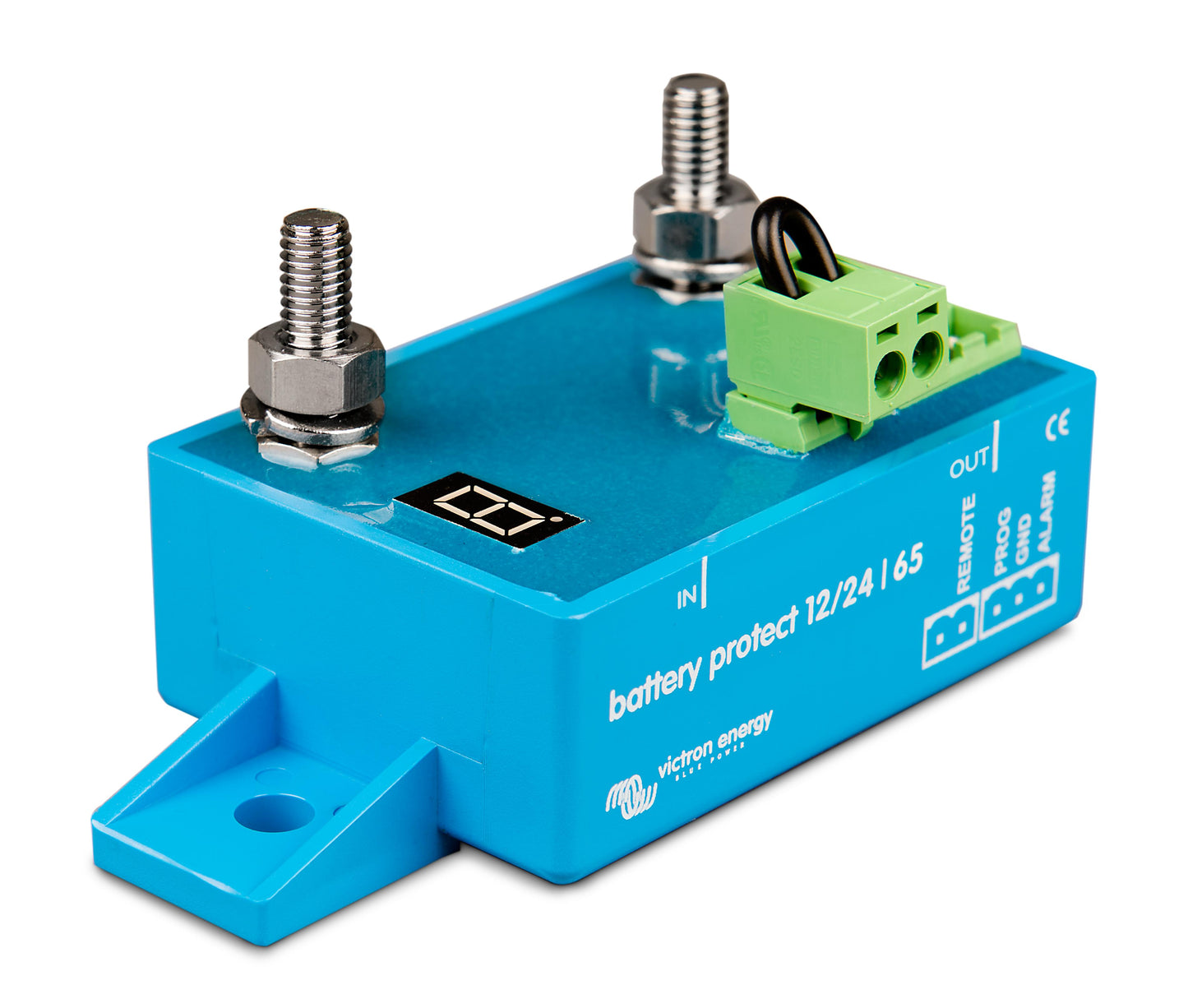

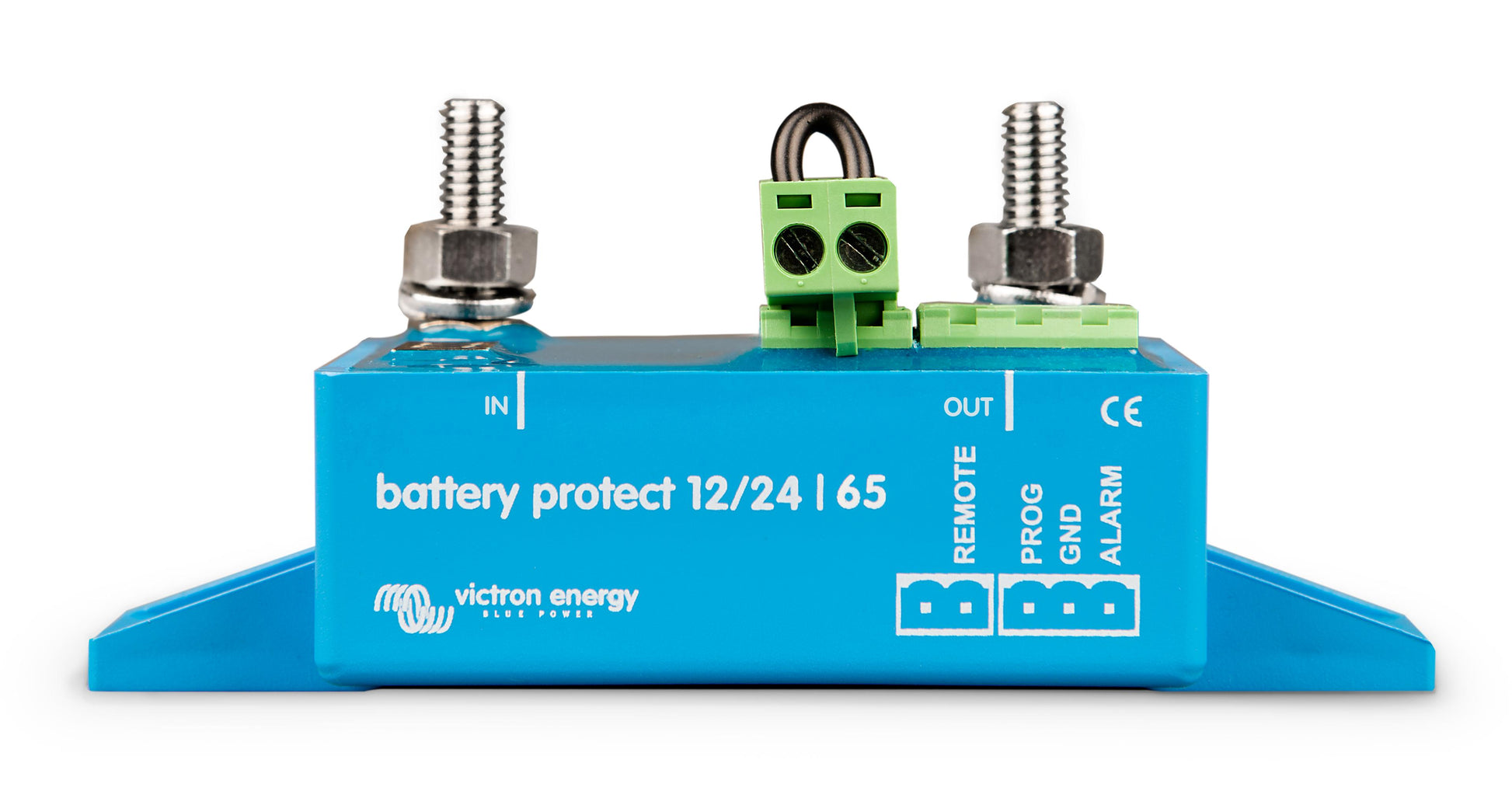

Victron Energy BP-65 BatteryProtect 12/24V 65A
Regular price
$36.55
Sale price
$36.55
Regular price
$0.00
Unit price
per
Shipping calculated at checkout.
SKU: BPV10065
Couldn't load pickup availability
Victron Energy BatteryProtect BP-65 (12/24V - 65A)
The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
Feature Highlights
- 12/24V auto ranging
- Easy to program
- Special setting for Li-ion batteries and can be controlled by VE.Bus BMS
- Ultra low current consumption
- Over voltage protection
- Ignition proof
- Delayed alarm output
- Delayed load disconnect and delayed reconnect
Specifications
| Model | BP-65 |
| Max continuous load current |
65A |
| Peak current |
300A |
| Operating voltage range |
6-35V |
| Current consumption |
1.5mA (when on) 0.6mA (when off or low voltage shutdown) |
| Operating temperature |
-40°C to +40°C |
| Connection | M6 |
| Weight | 0.5 lbs |
| Dimensions (h x w x d) |
1.6" x 1.9" x 4.2" |
| Victron Energy BatteryProtect BP-65 information: | |
|
Datasheet for Victron Energy BatteryProtect BP-65 |
|
|
Manual for Victron Energy BatteryProtect BP-65 |
