Victron Energy

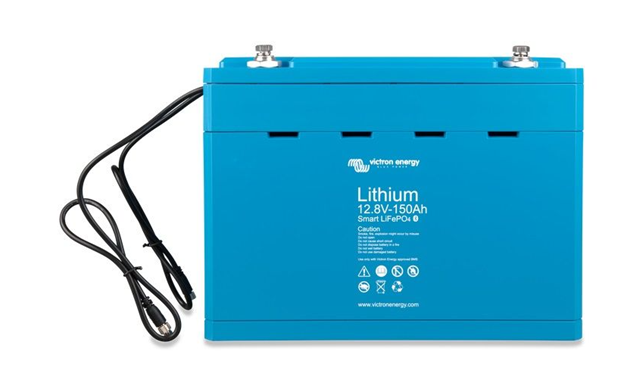

Victron LiFePO4 Bat.12.8/150Ah

$1,140.00
$1,140.00 $1,700.00
SKU: BDV30245

Questions about compatibility? Call us for help.

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

Lithium iron phosphate (LiFePO4 or LFP) (Only 1 Available)  is the safest of the mainstream li-ion battery types. The nominal voltage of a LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery therefore consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.

CYCLE LIFE - CAPACITY AT DIFFERENT CYCLES AT 100% DoD

2500 Cycles 80
3000 Cycles 70
5000 Cycles 50

Specifications:

  • Amp Hours: 150AH
  • Voltage: 12.8V Nominal
  • Peak Amps: 300 amps
  • Life Expectancy: 2500-5000 Cycles
  • Weight (Battery Only): 45lbs. / 20kg
  • Power connection: M8
  • Max Continuous Charge: 1C=300A
  • Max Continuous Discharge: 1C=300A
  • Operating Temperature: -4 to + 122 F
  • Storage temperature: -49 to +158 F
  • Charge Voltage: CC/CV 14.2V / Float 13.5V
  • Cell Type: LiFeP04
Victron LiFePO4 Bat.12.8/150Ah

$1,140.00
