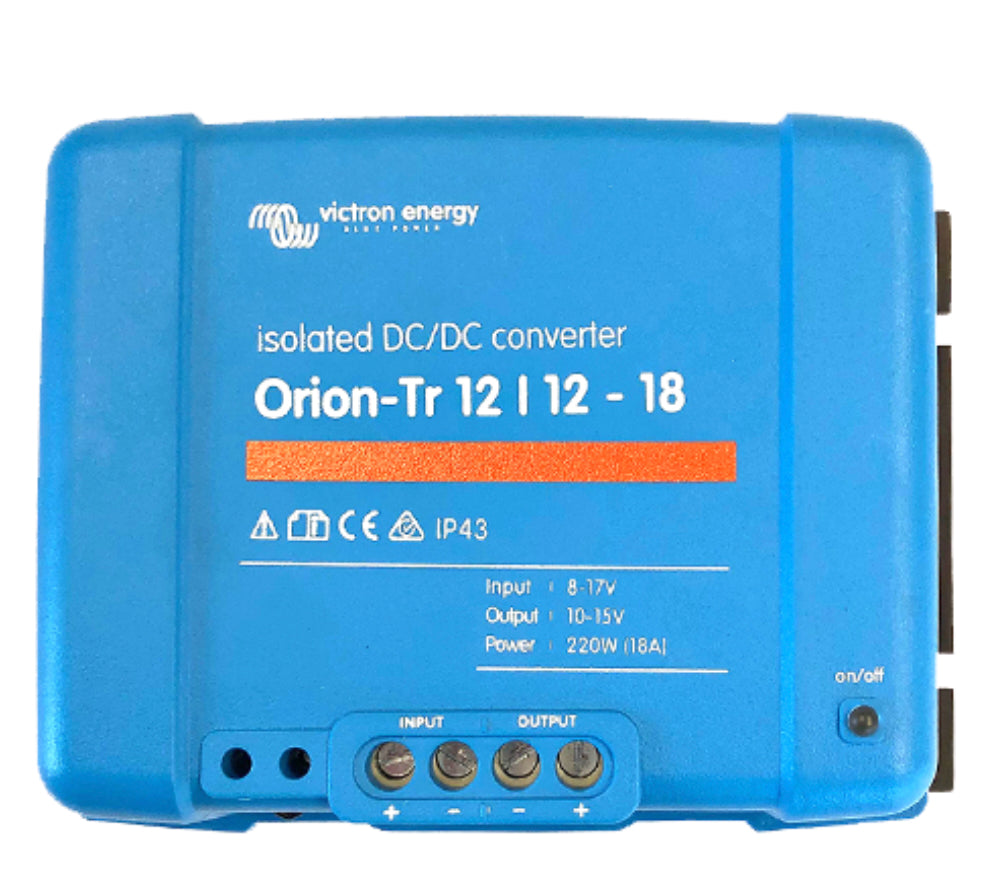

Victron Orion-Tr 12/12-18A (220W) Isolated DC-DC converter

The Victron Orion DC-DC Converter is engineered for dependable power conversion in demanding automotive, marine, and industrial applications. Its integrated remote on/off functionality allows convenient control without the need for a high-current switch in the main power wiring. This feature can be activated using a low-power switch or connected directly to an engine run/stop circuit for seamless operation.

Designed for maximum reliability, all Orion converter models feature short-circuit protection and support parallel operation, allowing multiple units to be connected together to increase available output current. With no practical limit to the number of units that can be paralleled, the system can easily scale to meet growing power requirements.

The rugged housing provides IP43-rated protection when installed with the terminal connections facing downward, helping safeguard internal components from moisture and debris. Installation is quick and straightforward thanks to robust screw-terminal connections that require no specialized tools.

For added protection, 12V and 24V input models include an integrated input fuse, simplifying system design and enhancing safety. Whether used for battery charging, voltage conversion, or powering sensitive electronics, the Victron Orion delivers efficient, reliable performance backed by Victron Energy's reputation for quality and durability.

Key Features

• 12V to 12V Isolated DC-DC Converter – Provides galvanic isolation between input and output for safe and stable power delivery.
• 18A Continuous Output (220W) – Delivers reliable power for charging batteries and running DC loads.
• Remote On/Off Control – Can be controlled via a low-power switch or engine run/stop signal, eliminating the need for a high-current switch in wiring.
• Parallel Operation Support – Multiple units can be connected in parallel to increase total output current as system demand grows.
• Short-Circuit Protection – Built-in protection helps safeguard both the converter and connected equipment.
• IP43 Protection Rating – Offers protection against dust and water spray when installed with terminals facing downward.
• Screw Terminal Connections – Simple installation with secure, tool-free wiring connections.
• Integrated Input Fuse – Built-in fuse protection on 12V input models for added safety.
• High Efficiency Design – Minimizes energy loss and heat generation for reliable long-term operation.
• Marine, Automotive & Industrial Use – Ideal for auxiliary battery charging and stable DC power distribution.

Technical Specifications

Electrical Specifications

• Model: ORI121222110
• Input Voltage Range: 8 – 17 V DC
• Nominal Output Voltage: 12.2 V DC
• Adjustable Output Voltage: 10 – 15 V DC
• Continuous Output Current: 18 A (at 40°C)
• Peak Output Current: 25 A (10 seconds)
• Continuous Output Power: 220 W (at 40°C)
• Efficiency: ~87%
• No-load Input Current: < 80 mA
• Remote Off Current Consumption: < 200 µA

Isolation & Protection

• Galvanic Isolation: 200 V DC between input, output, and chassis
• Short Circuit Protection: Yes
• Over Temperature Protection: Yes (output current derates at high temperatures)
• Input Fuse: Internal, non-replaceable
• Ingress Protection: IP43 (when installed correctly)

Mechanical Specifications

• Dimensions (H × W × D): 130 × 186 × 70 mm (5.1 × 7.3 × 2.8 in)
• Weight: ~1.3 kg (3.0 lb)
• Connection Type: Screw terminals (up to 16 mm² cable)
• Mounting: Chassis mount

Environmental Specifications

• Operating Temperature: -20°C to +55°C
• Humidity: Max 95% non-condensing
• Cooling: Natural convection

Compliance & Standards

• CE approved
• Automotive EMC compliance (ECE R10)
• EN 60950 safety standard
• EN 61000-6-1 / EN 61000-6-3 EMC standards
