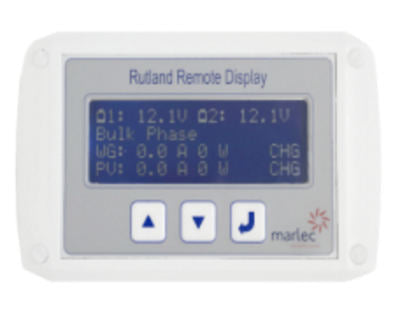

Rutland 1200 Remote Digital Display

The new Rutland 1200 Remote Digital Display is designed to be conveniently located on board, you can view the actual performance, operating condition and remotely shutdown.

Thee Rutland Remote Digital Display offers a number of optional screens for continuous display: wind power generation, solar generation or the default screen where both these, battery voltages and charge status are displayed.

Rutland Remote Digital Display Specs

• Push buttons simply scroll through the screen and access setting options
• 2 Installation options come as standard for surface or recess mounting and connection to the controller is made via the supplied 3m serial cable. 6m is available to order.
• Surface mount : 125 x 75 x 50mm, 203g
• Recess Mount: 4.9 X 2.9 x 0.35in (125 x 75 x 9mm), 132g Cut out : 3.9 x 2.4in (100 x 62mm)
• Packed : 155 x 145 x 60, 320g

Part #: CA-07/02

Rutland 1200 detailed information:
	Rutland 1200 Remote Display Manual
	Rutland 1200 Controller Installation
